Description

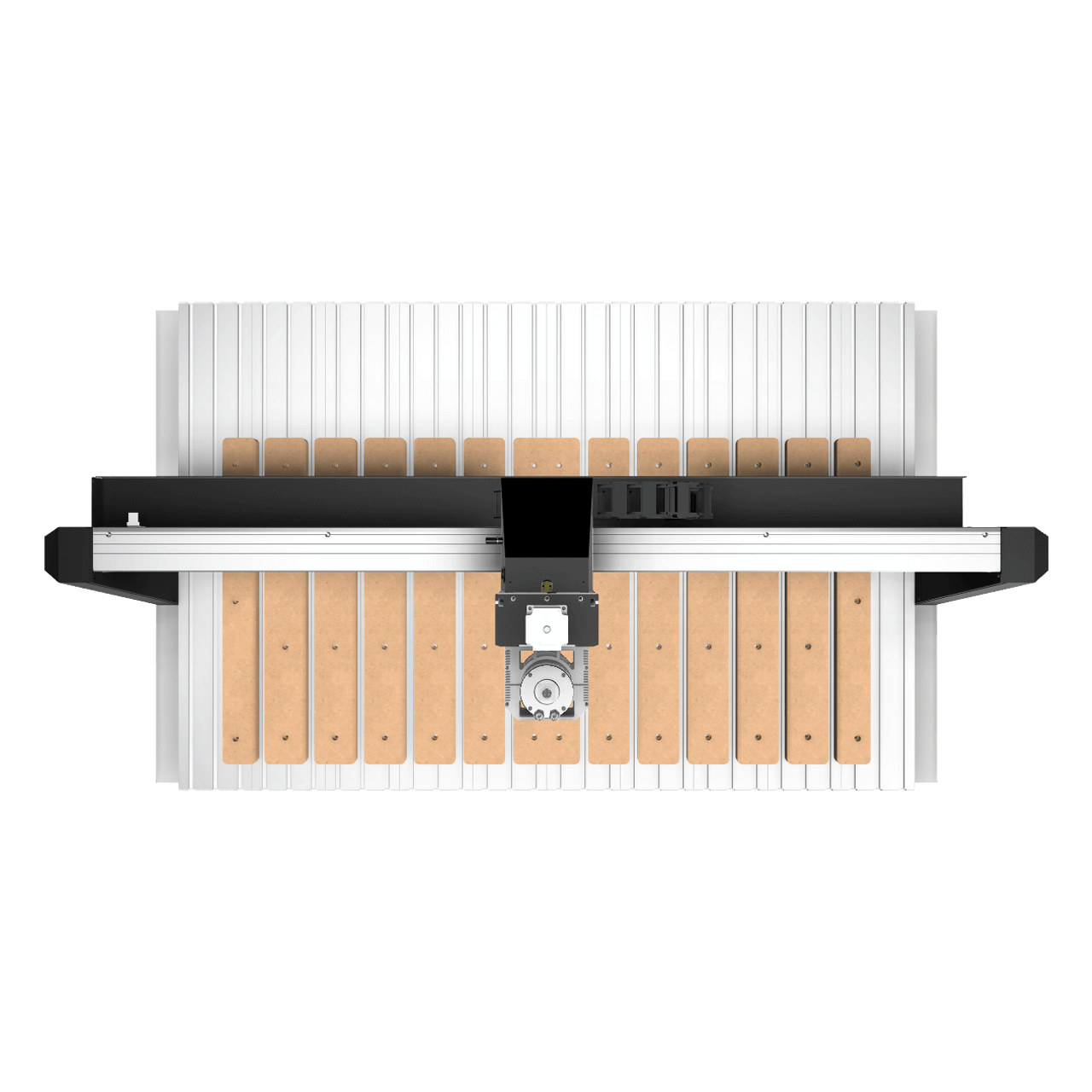

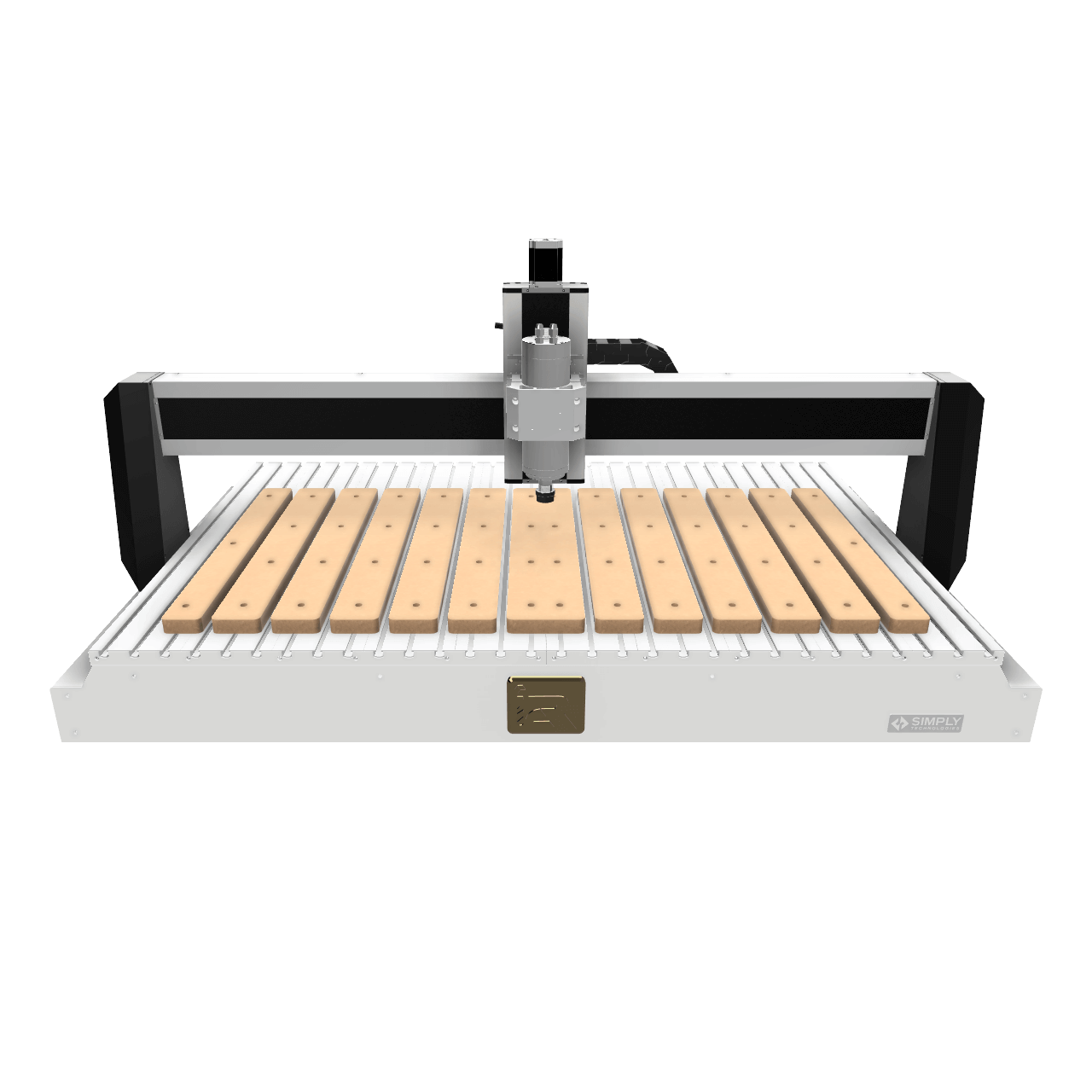

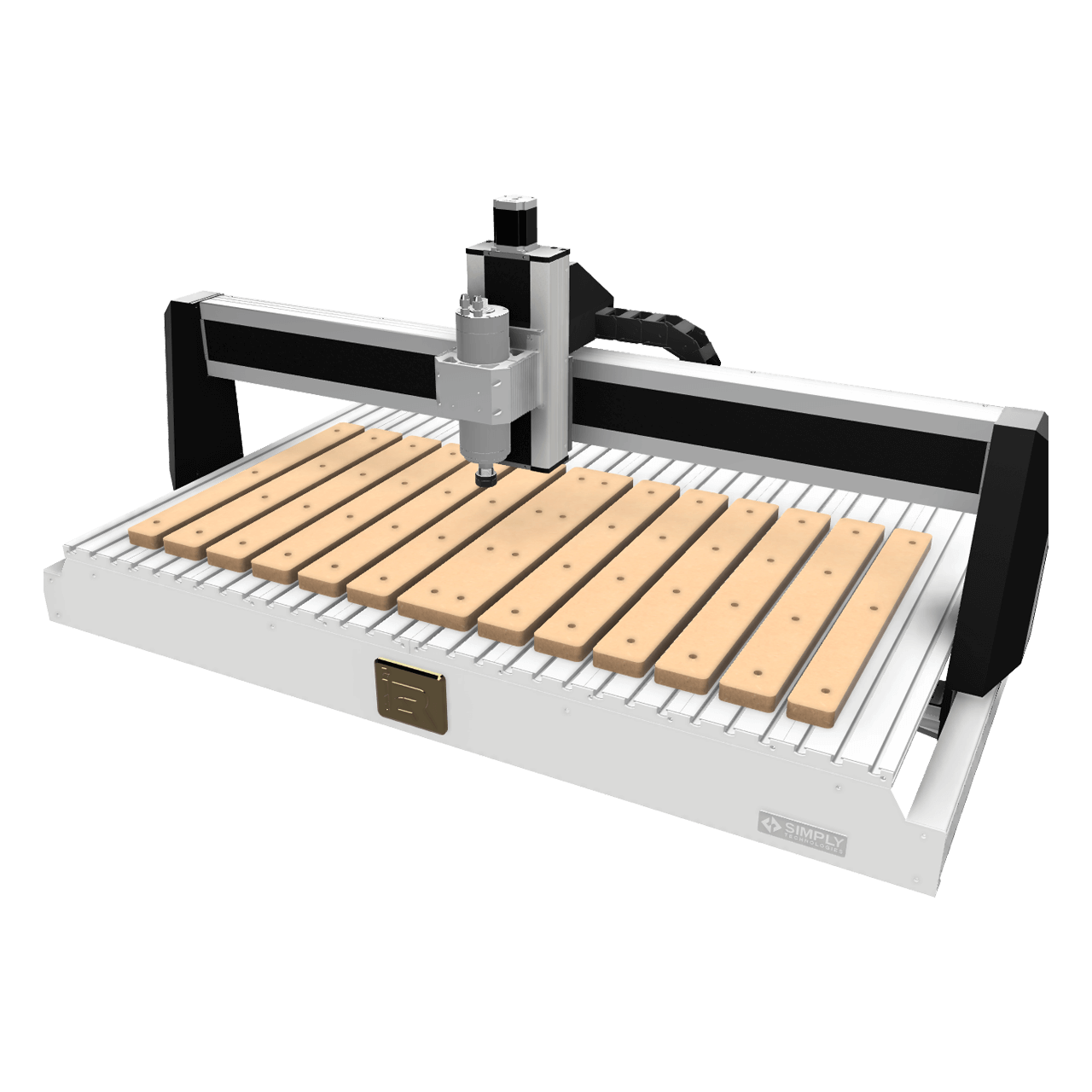

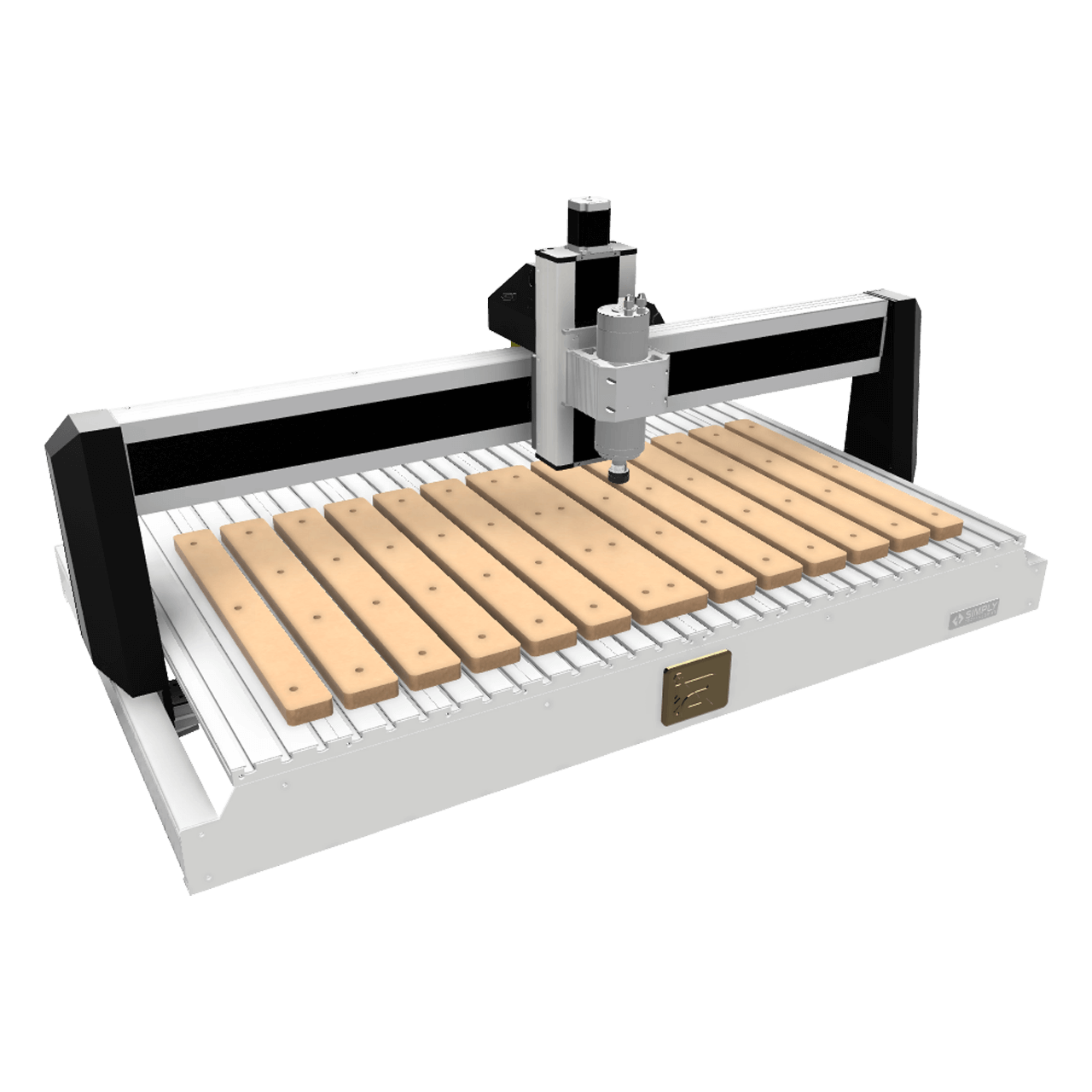

Some bays are wide and shallow, and some work is long and narrow. The PERFORMANCE 8W is for both. Instead of 24″ × 48″, the cutting area runs 48″ wide by 24″ deep, so the full four-foot width of material lays across the table and you cut it in 24″ deep sections.
Who the PERFORMANCE 8W suits
Shops with a shallow bay or a wall behind the machine, and shops cutting long parts where width matters more than depth: shelving, cabinet backs, wide signage, long trim and panel components. If your parts are deep rather than wide, the standard PERFORMANCE 8 is a better layout for the same footprint.
Key specifications
- Work area: 48″ × 24″ (X × Y), Z travel 5.9″ (150mm)
- Spindle: 3 HP liquid-cooled, ER20
- Controller: iCNC with 15.6″ touchscreen
- Rapid feed: 190 IPM
- Base: welded steel, with gravity cast aluminum alloy gantry supports
- Power (North America): dedicated 220–240V single-phase supply
- Footprint: 62.99″ × 37.36″ × 30.27″ (1600 × 950 × 770mm)
- Machine weight: 350 lbs (159 kg)
- Included: tool touch-off puck, 1/4″ and 1/2″ collets, hold down clamps (set of 2), wrench set, iCNC monitor arm, grease gun, liquid cooling module

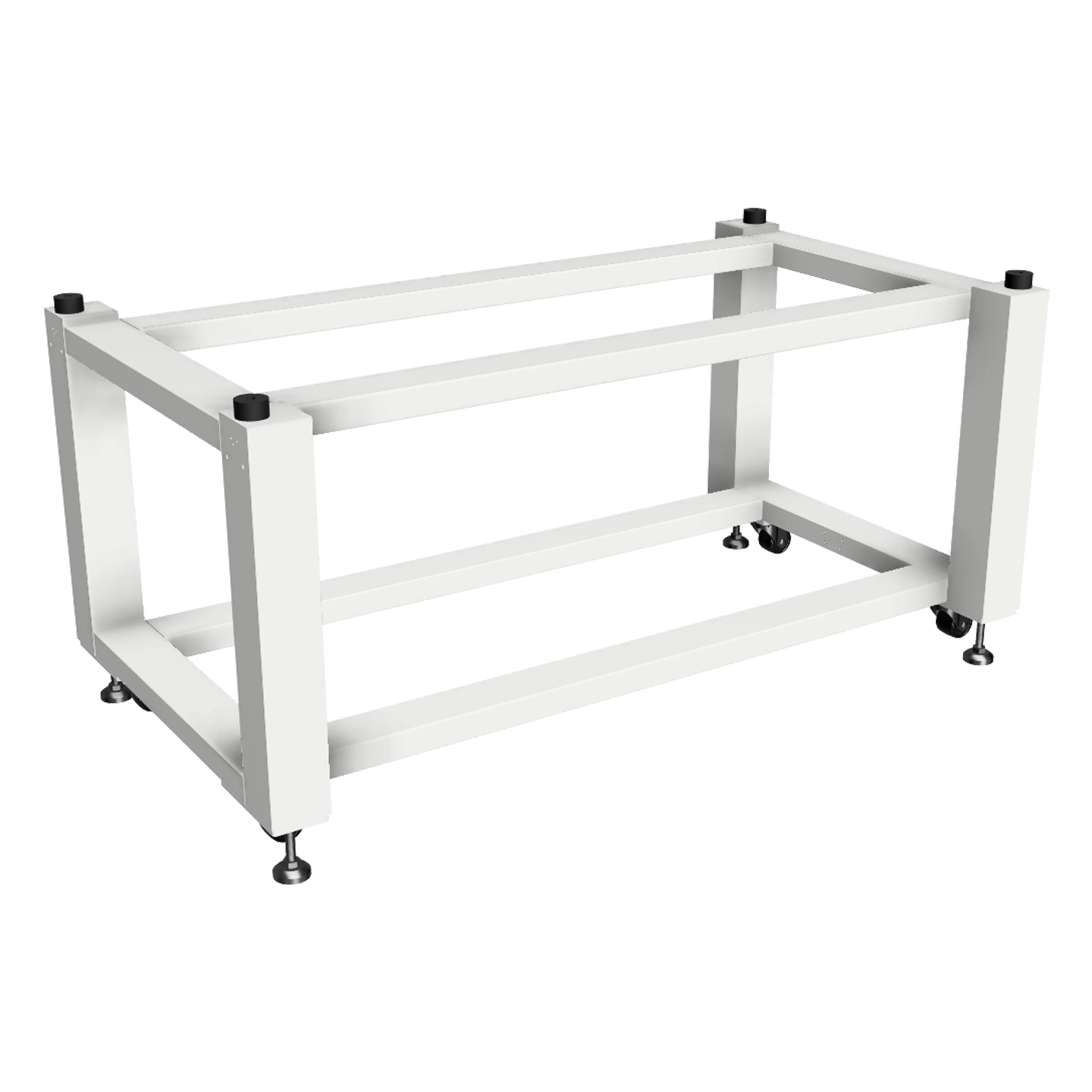

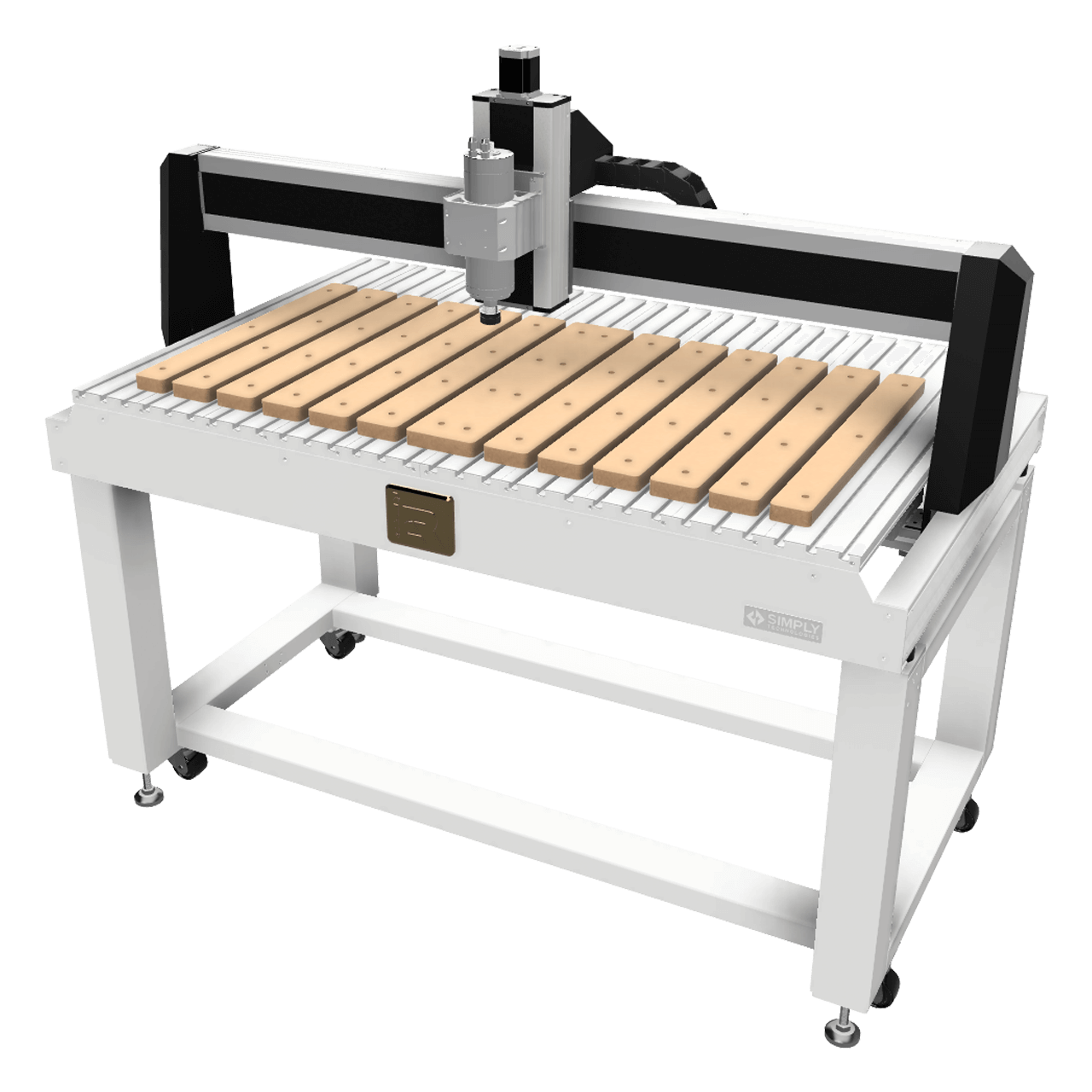

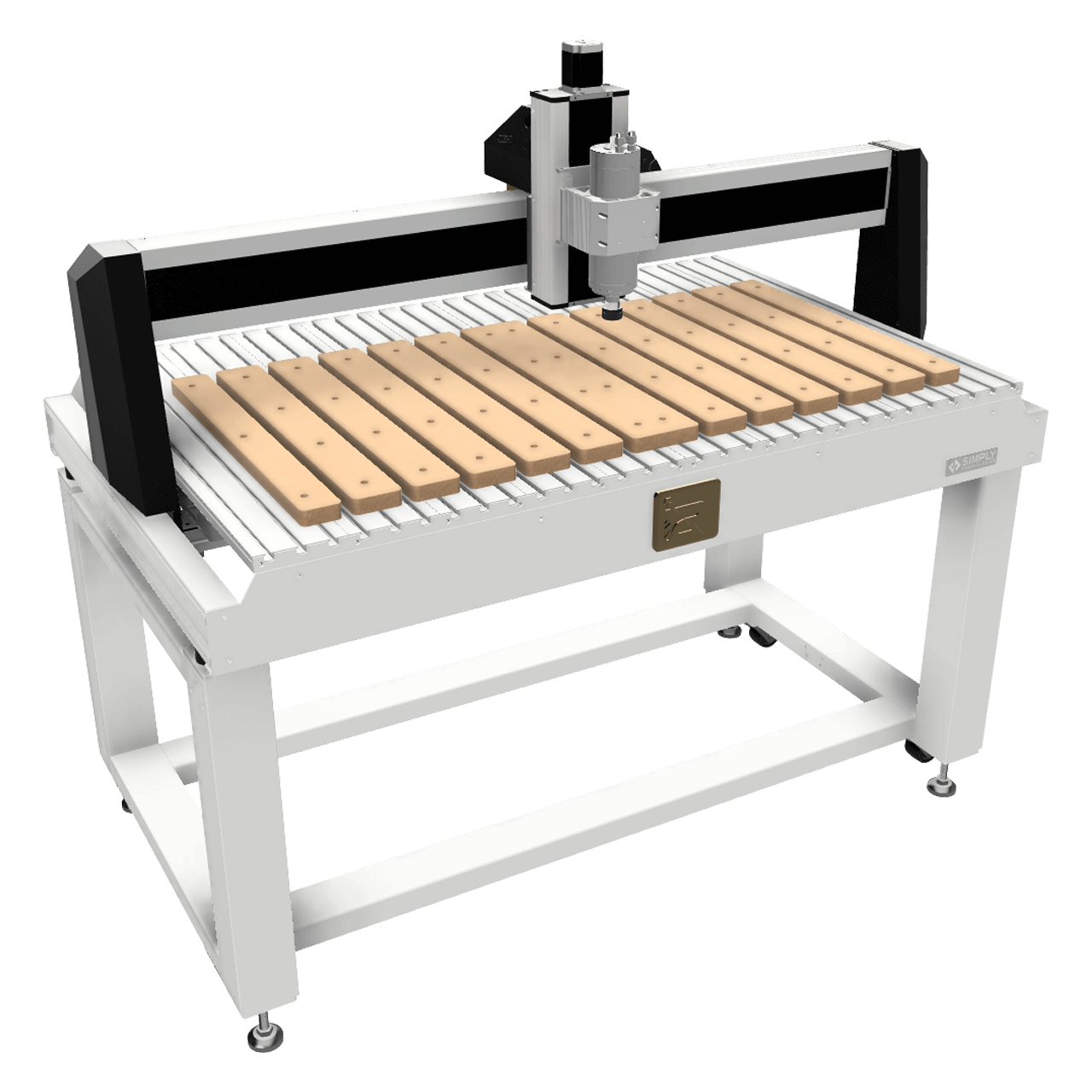

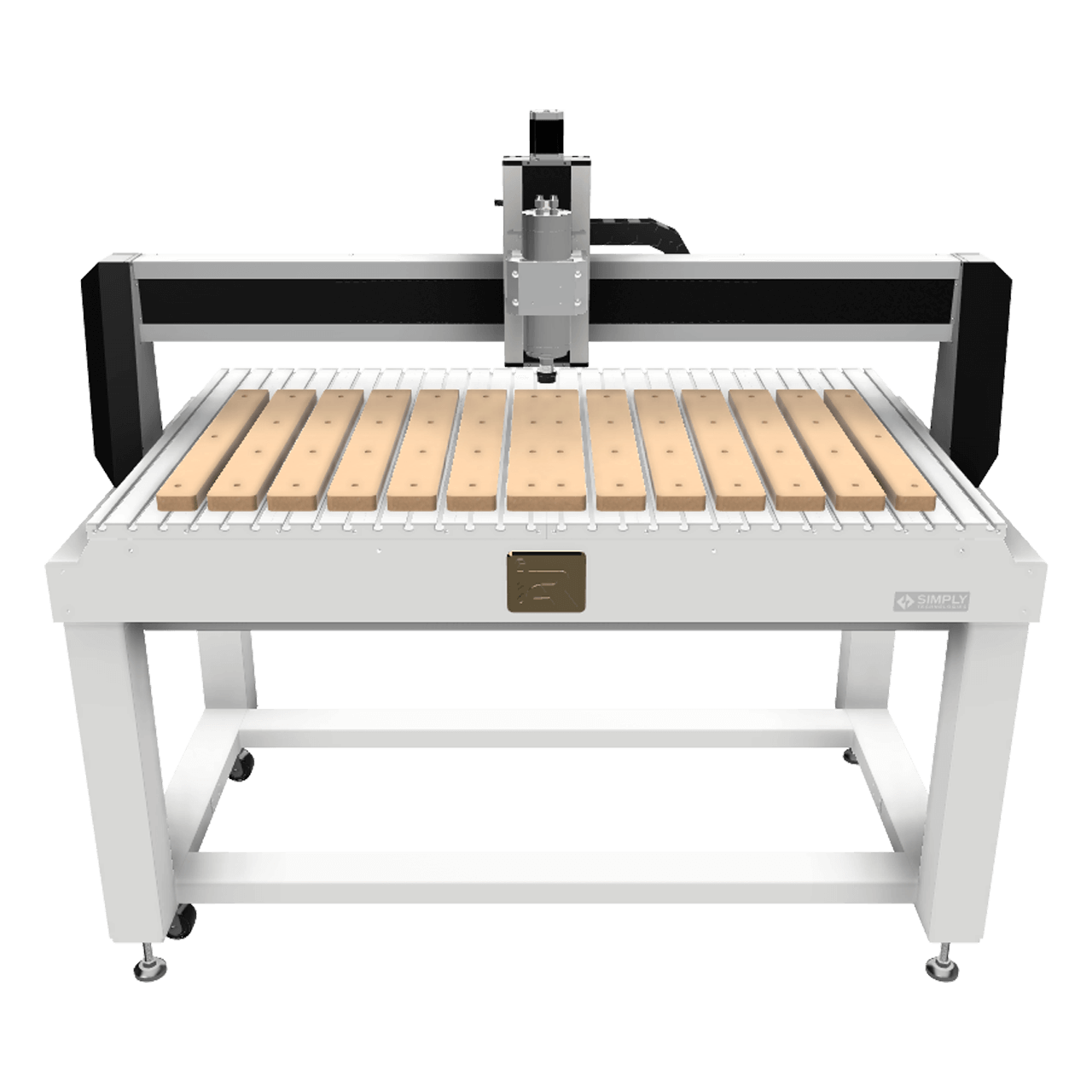

- Available separately: PERFORMANCE 8W stand, PERFORMANCE tool box, overarm dust accessory, rotary kit
Electrical requirements differ by region. Tell us where the machine is going and we will confirm the correct configuration before you order.
What we see most often
Orientation is the part of this machine buyers think about least and benefit from most. Before choosing between the PERFORMANCE 8 and 8W, lay out your five most common parts on paper at both orientations. The right answer is usually obvious within a few minutes, and it saves a return trip to the configuration stage.
Not sure which size fits your work? Our guide on how to choose a CNC machine walks through the decision.
Support after delivery
Simply Technologies has supplied CNC equipment since 2007 from London, Ontario. Our machine bundles include lifetime technical support on hardware and software, so questions about layout, workholding and toolpaths always have somewhere to go. Request a Quotation or Talk With Our Team to confirm the right layout for your space.
