Description

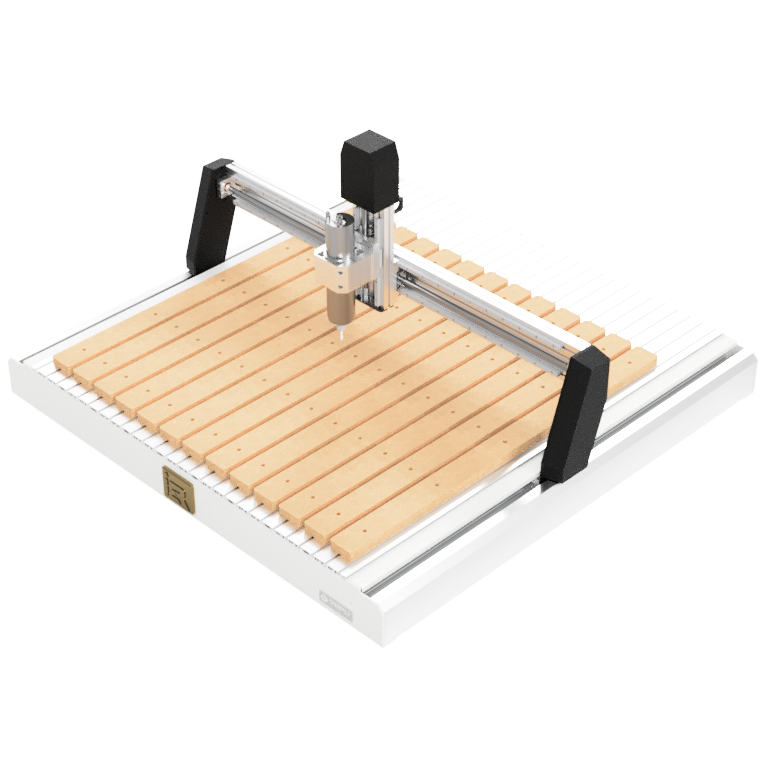

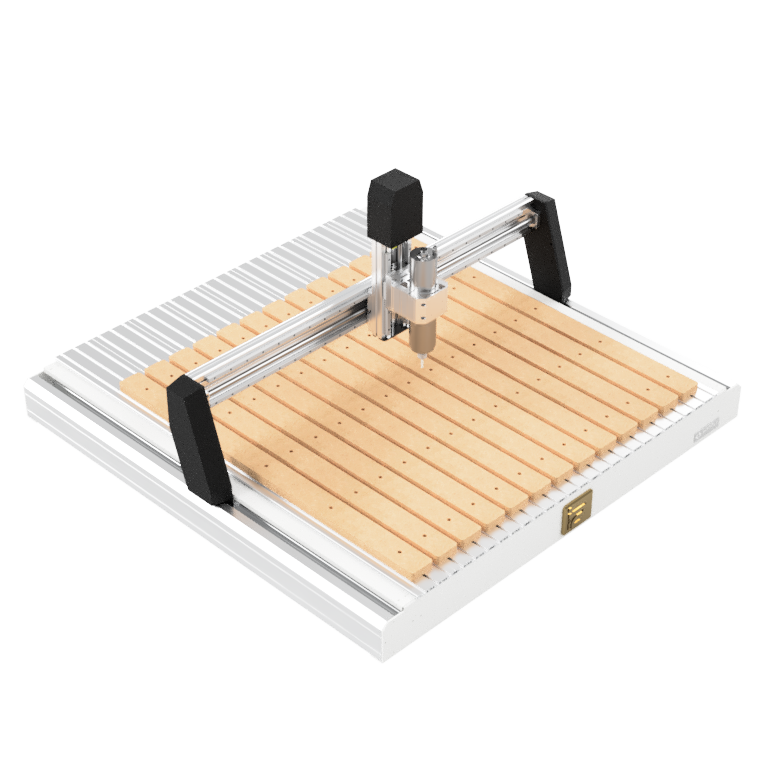

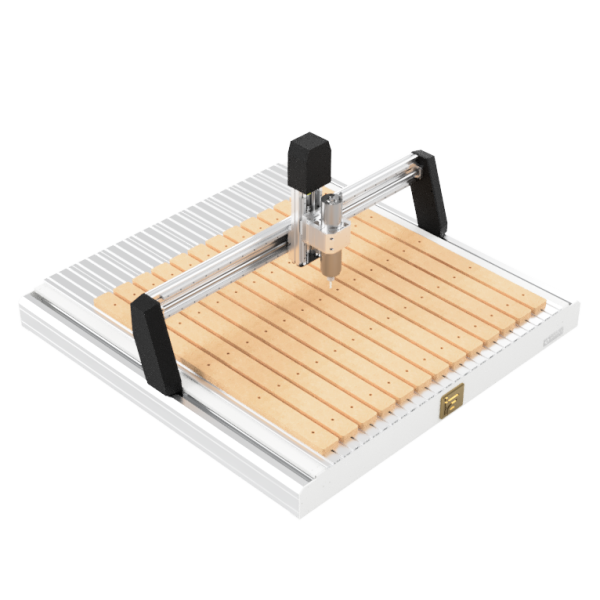

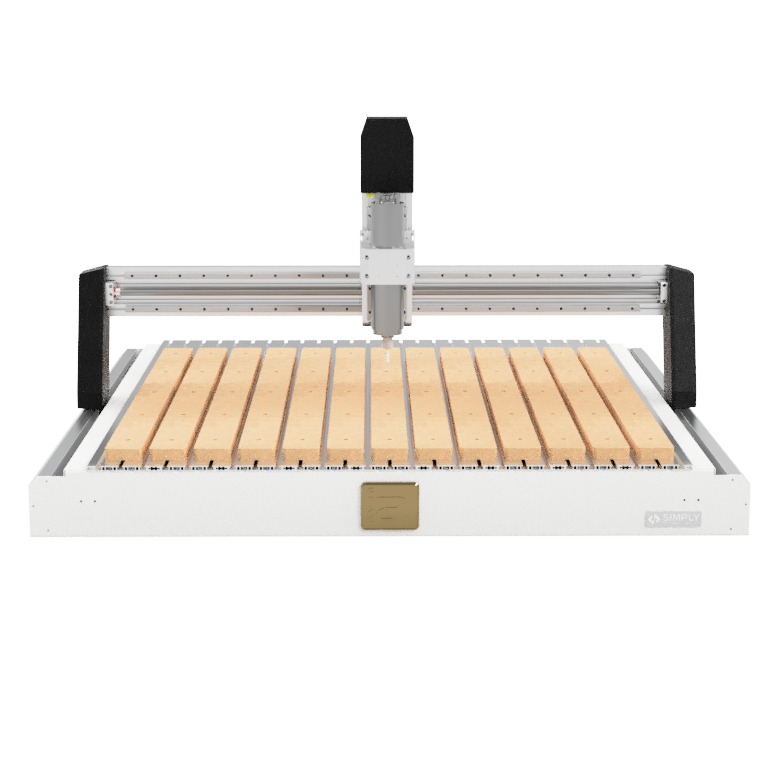

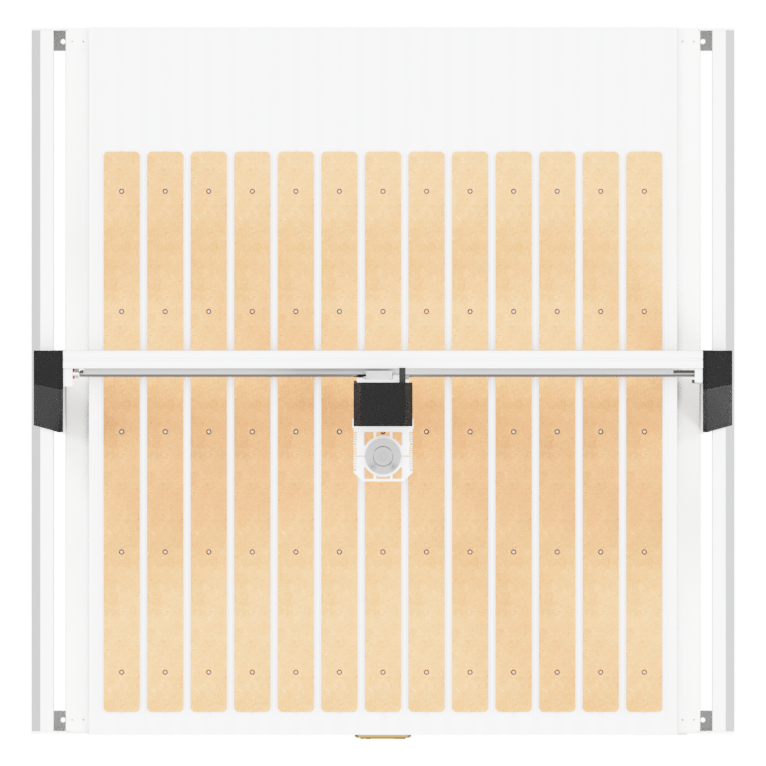

The DISCOVERY 16 is a step up for shops that are ready to scale. A 48″ × 48″ cutting area lets you load the full four-foot width of plywood, MDF or other sheet goods and cut larger panels, tabletops and furniture parts in one setup. The liquid-cooling system is self-contained and needs no plumbing from your facility.
Who the DISCOVERY 16 suits
Shops that cut full-width material regularly and want a larger bed without stepping up to the PERFORMANCE frame. It also suits programs and production shops that expect volume to grow. If you want automatic tool changes on the same bed, see the DISCOVERY 16ATC. If the machine will run most of every working day, compare the PERFORMANCE 16.
Key specifications
- Work area: 48″ × 48″ (X × Y), Z travel 7.87″ (200mm)
- Spindle: 3 HP liquid-cooled, ER20
- Controller: eCNC with 7″ touchscreen
- Rapid feed: 150 IPM
- Base: aluminum extrusion with steel plate gantry supports
- Power (North America): dedicated 220–240V single-phase supply
- Footprint: 63.13″ × 61.02″ × 33.64″ (1603.5 × 1550 × 854.5mm)
- Included: tool touch-off puck, wrench set, 1/4″ and 1/2″ collets, hold down clamps (set of 2), DISCOVERY 16 stand
Electrical requirements differ by region. Tell us where the machine is going and we will confirm the correct configuration before you order.
What we see most often
A larger bed changes the whole workflow, not only the cutting. Panels are heavier to load, dust output rises and workholding has to keep up. Many owners find that the first accessory they add is a vacuum hold down kit or vacuum table, because it makes loading sheet material quicker and more consistent. Include it in the plan from the start.
Not sure which size fits your work? Our guide on how to choose a CNC machine walks through the decision.
Support after delivery
Simply Technologies has supplied CNC equipment since 2007 from London, Ontario. Our machine bundles include lifetime technical support on hardware and software, so help is available long after the machine is installed. Request a Quotation or Talk With Our Team to configure the machine for your shop.
