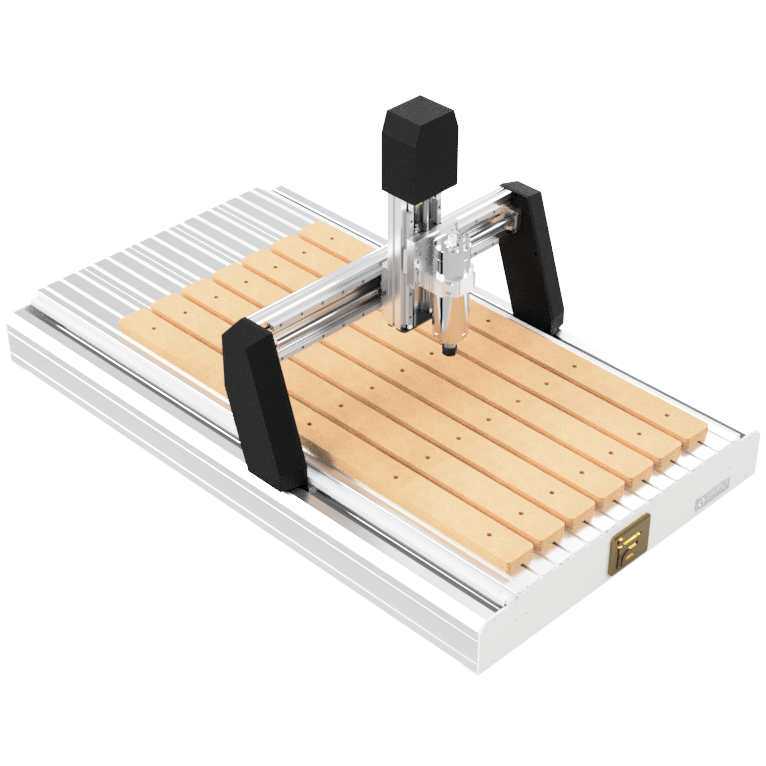

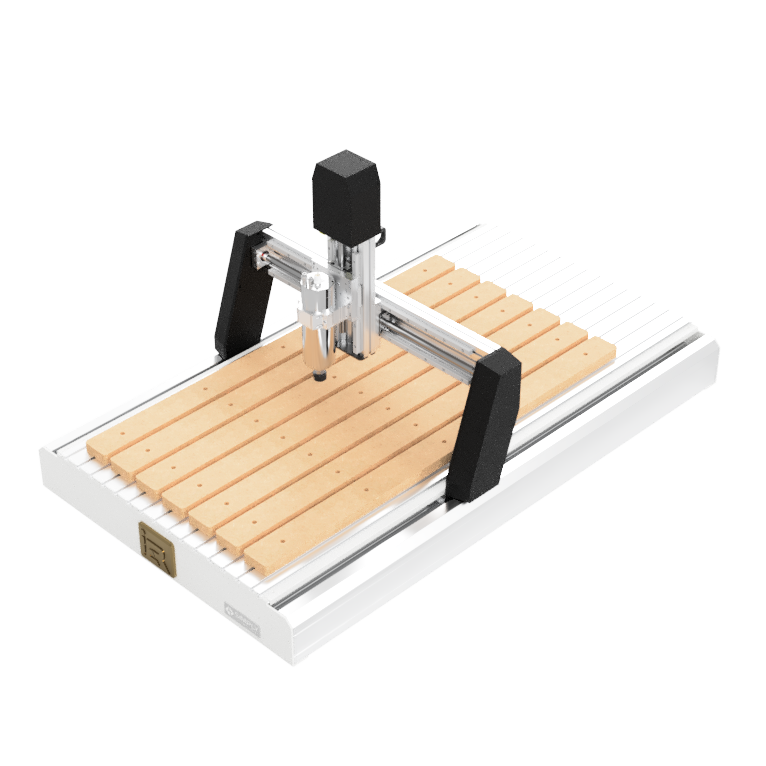

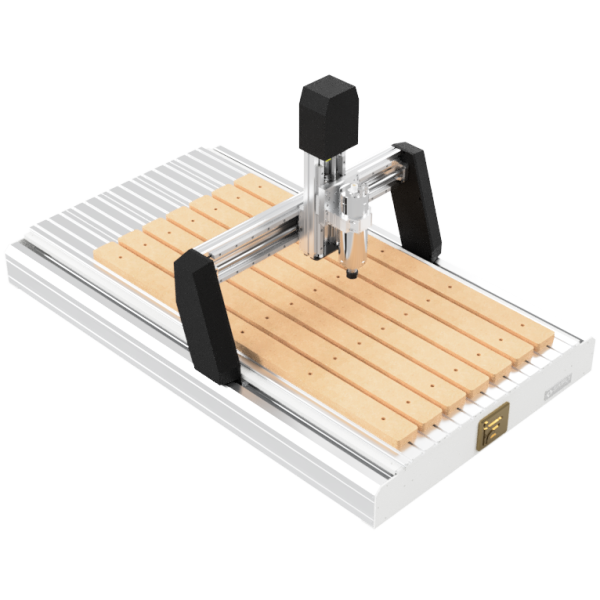

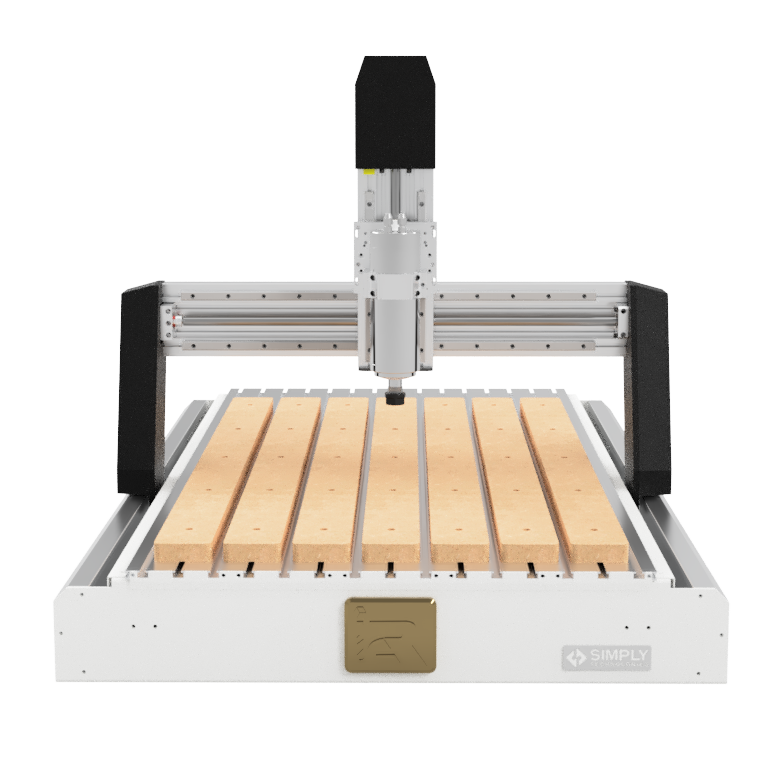

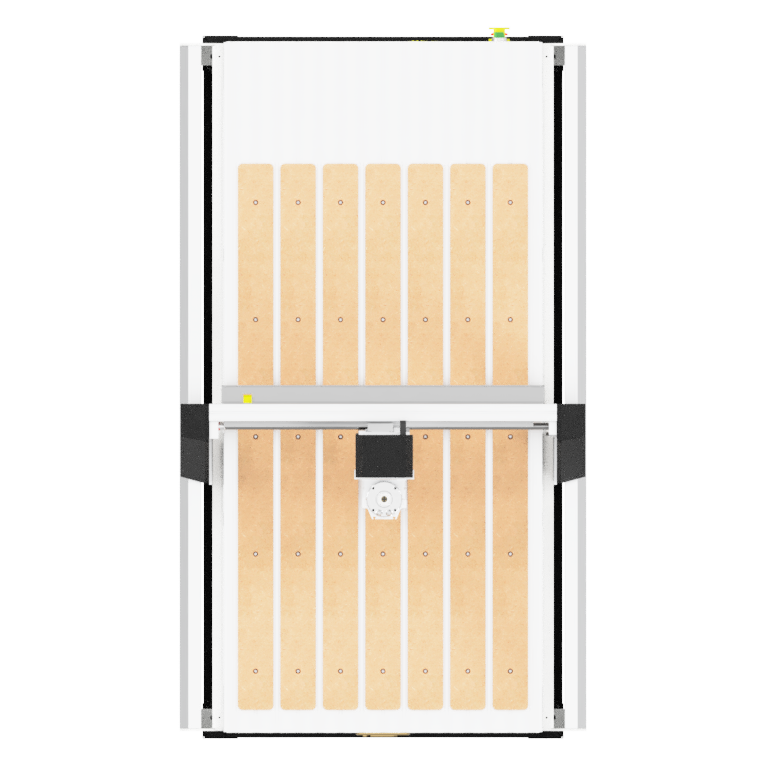

DISCOVERY 8 (24″ x 48″)

SKU: DISCOVERY8

From: $7,999.00CAD

The new Discovery CNC series includes three sizes, each with prismatic guides, ball screws, and the same powerful, yet easy to use, DSP pendant controller which we utilize on our larger machines. We also provide a full complement of accessories ensuring that you’ll receive a package that’s specifically tailored to your CNC needs.

SHIPPING BEGINS JULY 2025.

Need a formal quotation before purchasing?
Request A Quotation



Choose Discovery Model:

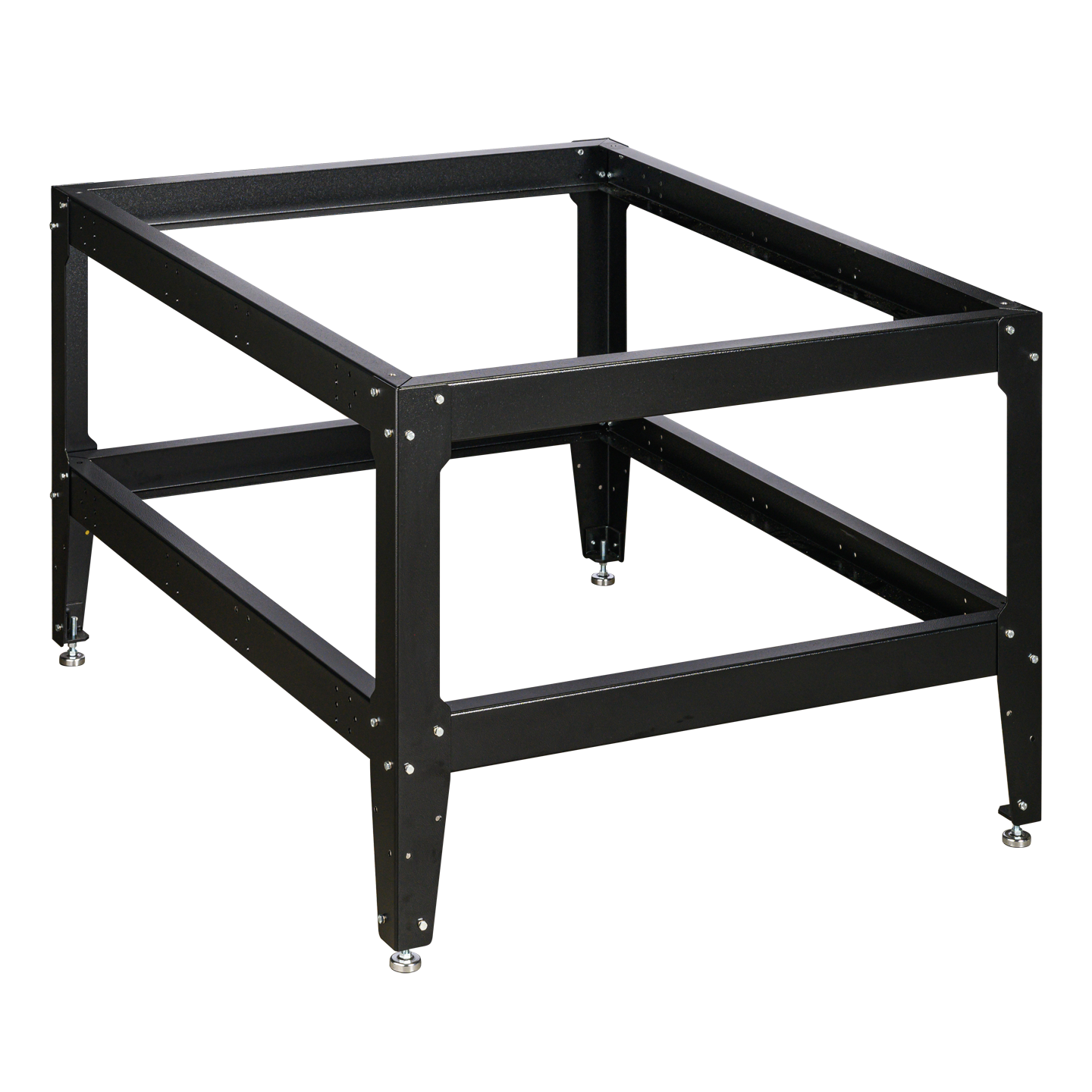

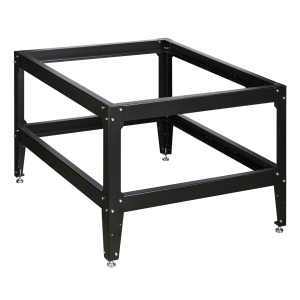

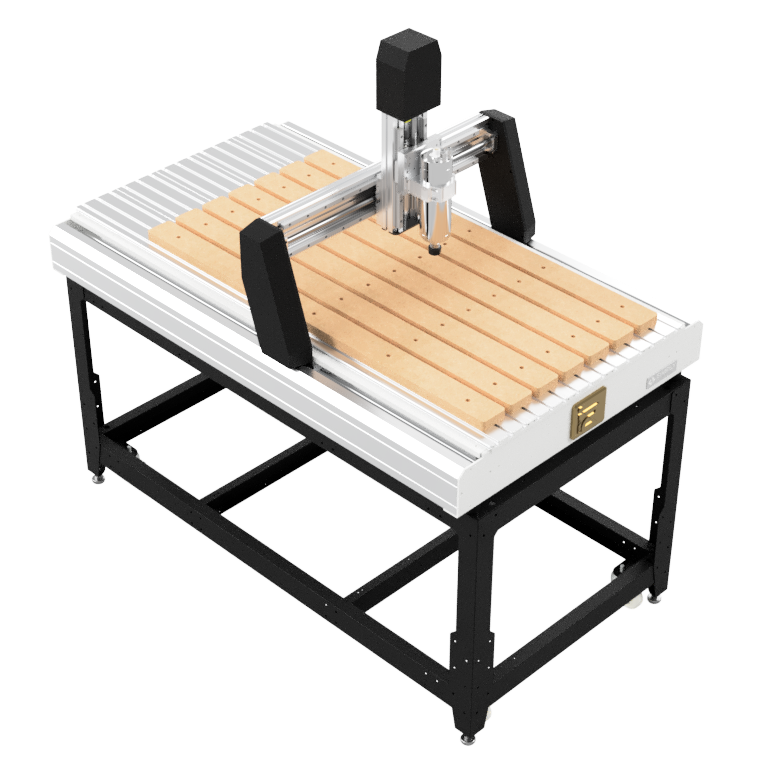

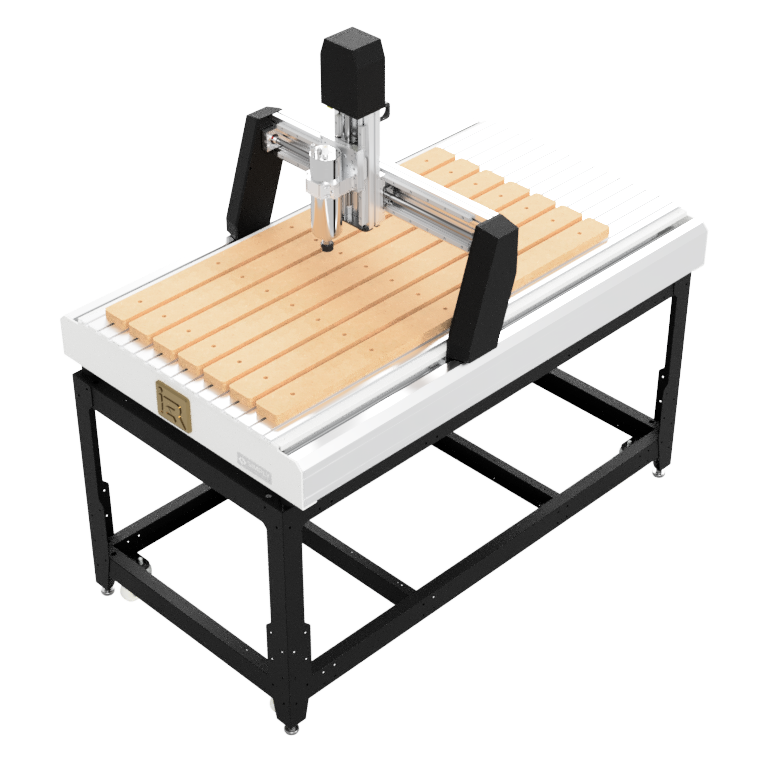

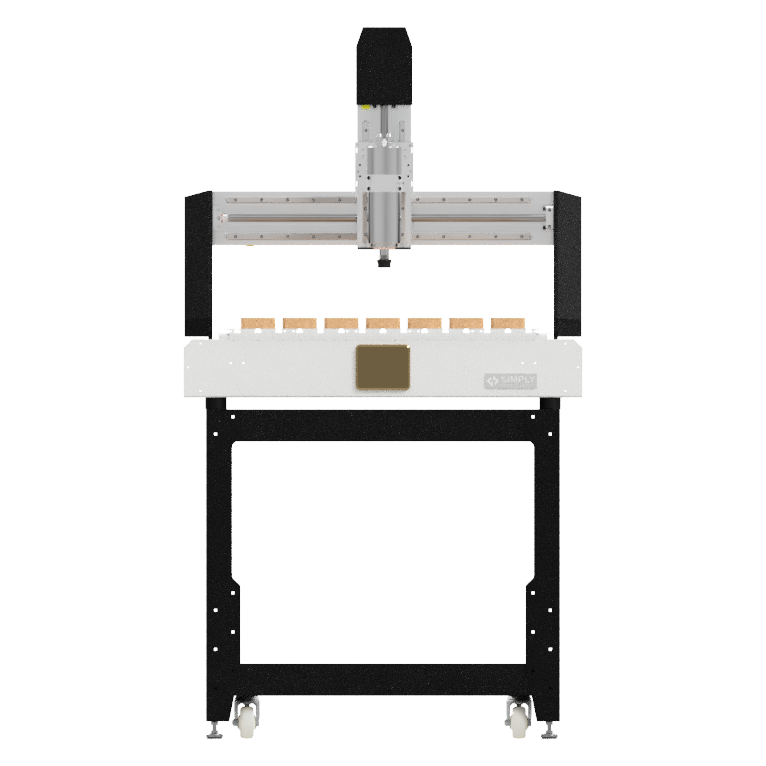

DISCOVERY 8 Stand

DISCOVERY Overarm Dust Accessory

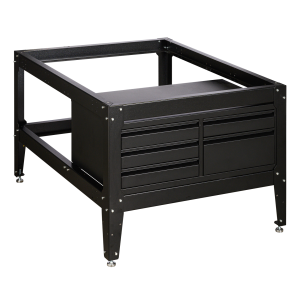

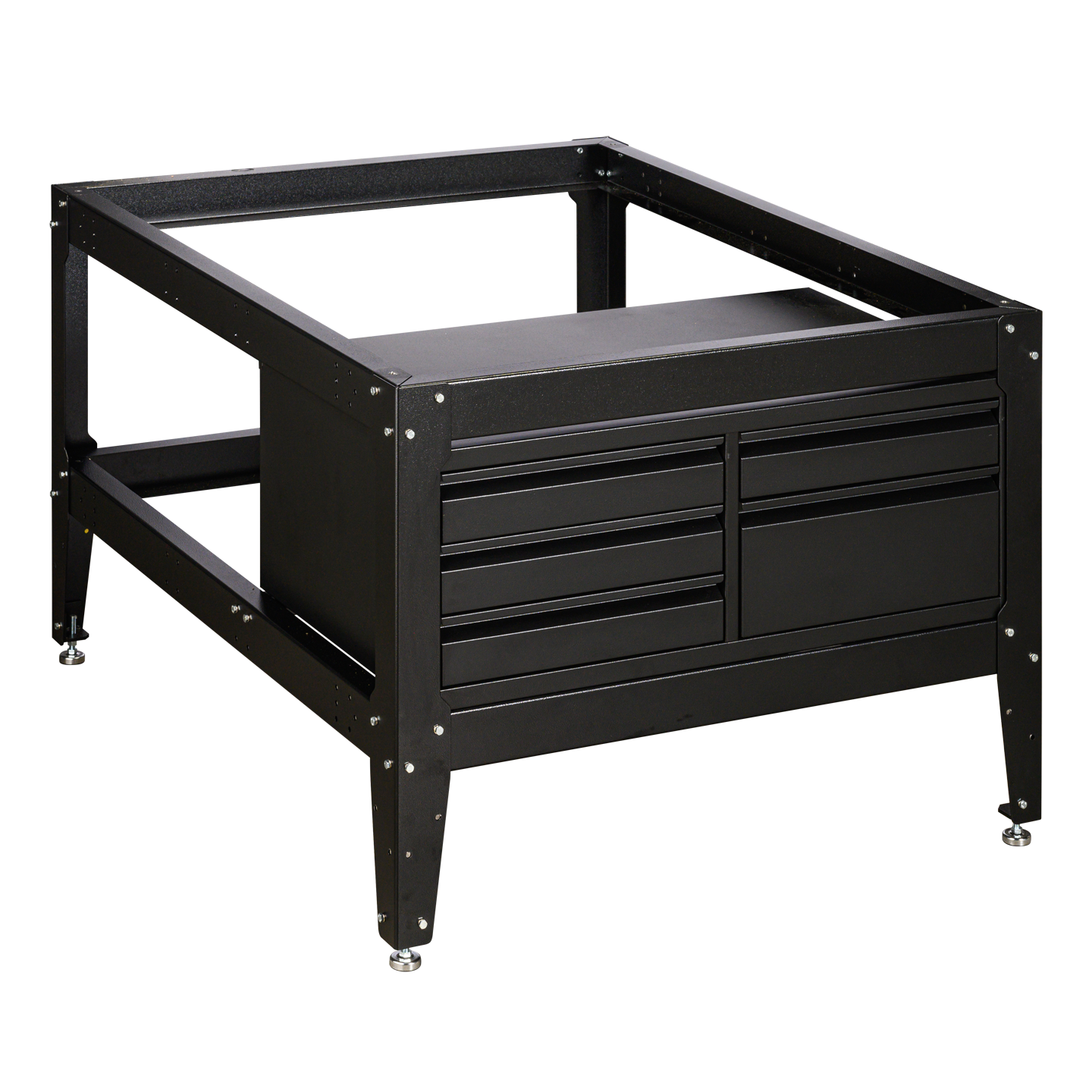

Discovery Tool Box

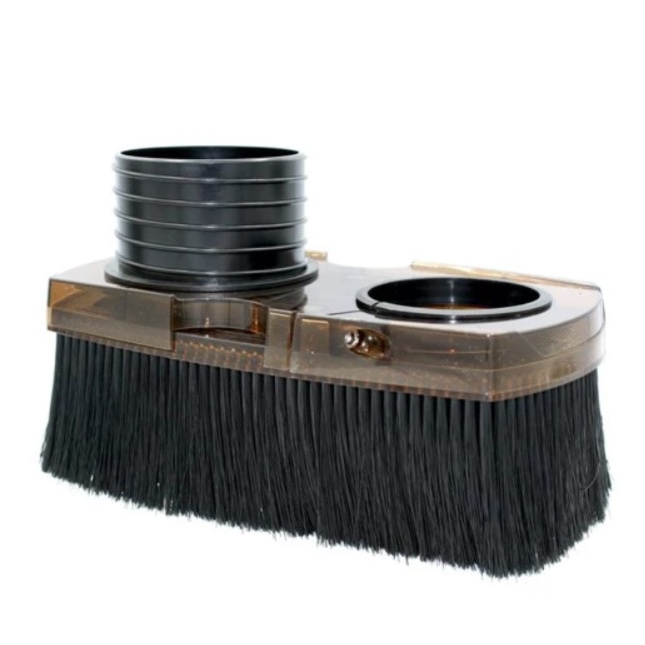

220 Dust Shoe

Hold Down Clamps (Set of 2)

Vacuum Hold Down Kit

Amana Spektra 9 Piece Bit Set

Lateral Clamp Kit

16 Module CAD + CNC Video Training Series

Bundled product placeholder image

CNC Maintenance Kit

10W Laser Accessory

LED Kit

ER20 Collet Set

Vacuum Table for CNC (2' x 2')

Vacuum Blower Motor for CNC

VCarve Desktop

Aspire

*Additional freight charges may apply for any orders shipped to remote areas.

Description

The Discovery Series offers a powerful and reliable CNC solution for creators, educators, and small businesses looking to take their digital fabrication to the next level. Our Discovery lineup includes five distinct models: Discovery 1 (12″ x 12″), Discovery 2 (24″ x 12″), Discovery 8 (24″ x 48″), and Discovery 16 (48″ x 48″).

Every model in the Discovery Series features precision ball screws, linear guideways, and an industrial-grade eCNC controller with a 7″ touchscreen for easy, hands-on operation. The Discovery 1 and 2 are equipped with a 1HP spindle, while the Discovery 8 and 16 feature robust 3HP spindles, providing ample power for demanding woodworking and light production tasks. Whether you are building signs, furniture, prototypes, or passion projects, the Discovery Series is your gateway into professional-grade CNC performance – built simply.

Tech Specs

Discovery Series

Discovery Series Specifications
Specification Discovery 1 Discovery 2 Discovery 8 Discovery 16 Discovery 16ATC
X Axis Travel 12″ (305mm) 24″ (610mm) 24″ (610mm) 48″ (1220mm) 48″ (1220mm)
Y Axis Travel 12″ (305mm) 12″ (305mm) 48″ (1220mm) 48″ (1220mm) 48″ (1220mm)
Z Axis Travel 5.5″ (140mm) 5.5″ (140mm) 7.87″ (200mm) 7.87″ (200mm) 7.87″ (200mm)
Table Work Area 12″ x 12″ 12″ x 24″ 24″ x 48″ 48″ x 48″ 48″ x 48″
Spindle Type 1HP Air Cooled 1HP Air Cooled 3HP Air Cooled 3HP Water Cooled 3HP Water Cooled
Spindle Configuration ER11 (1/8″ & 1/4″) ER11 (1/8″ & 1/4″) ER20 (1/4″ & 1/2″) ER20 (1/4″ & 1/2″) ISO20 ATC (1/4″ & 1/2″)
Controller eCNC eCNC eCNC eCNC iCNC
On-Board Memory No No No No Yes
Rapid Feed Rate 150ipm (3.81m/min) 150ipm (3.81m/min) 150ipm (3.81m/min) 150ipm (3.81m/min) 150ipm (3.81m/min)
Tool Touch-Off Included Included Included Included Included
Onboard Cooling Included Included Included Included Included
Machine Base High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion
Rotary Axis No No Yes Yes Yes
Resolution +/- .000197″ (0.05мм) +/- .000197″ (0.05мм) +/- .000197″ (0.05мм) +/- .000197″ (0.05мм) +/- .000197″ (0.05мм)
Precision Linear Guides X / Y / Z X / Y / Z X / Y / Z X / Y / Z X / Y / Z
Precision Ball Screw Transmission X / Y / Z X / Y / Z X / Y / Z X / Y / Z X / Y / Z
Power Requirements AC 110V, 50-60Hz, 15A, 1-Phase (Optional 220V, 10A) AC 110V, 50-60Hz, 15A, 1-Phase (Optional 220V, 10A) 220V, 50-60Hz, 10A, 1-Phase 220V, 50-60Hz, 10A, 1-Phase 220V, 50-60Hz, 10A, 1-Phase
Working Table High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion
Gantry Bridge High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion
Gantry Supports Steel Plate Steel Plate Steel Plate Steel Plate Steel Plate
Max Gantry Clearance 5.5″ (140mm) 6.5″ (165mm) 7.2″ (182mm) 7.2″ (182mm) 7.2″ (182mm)
Clearance Above Spoil Board 4.5″ (115mm) 5.5″ (140mm) 6.2″ (157mm) 6.2″ (157mm) 6.2″ (157mm)
Machine Dimensions 23.76″ L x 36.22″ W x 29.07″ H 23.76″ L x 36.22″ W x 29.07″ H 63.13″ L x 36.22″ W x 33.64″ H 63.13″ L x 61.02″ W x 33.64″ H 63.13″ L x 61.02″ W x 33.64″ H
Shipping Dimensions 52″ L x 39″ W x 33″ H 65″ L x 39″ W x 33″ H
Machine Weight 317.7 lbs 349.9 lbs
Shipping Weight 371.9 lbs 412.9 lbs
