SIMPLY 8 (24″ x 48″)

SKU: SIMPLY8

From: $7,999.00CAD

The new SIMPLY Series offers professional CNC capabilities at an entry-level price point. Available in three sizes (24″ x 24″, 24″ x 36″, and 24″ x 48″), each machine is engineered with precision prismatic guides and durable ball screws for smooth, accurate motion. Operation is controlled through a powerful yet easy-to-use DSP pendant controller.

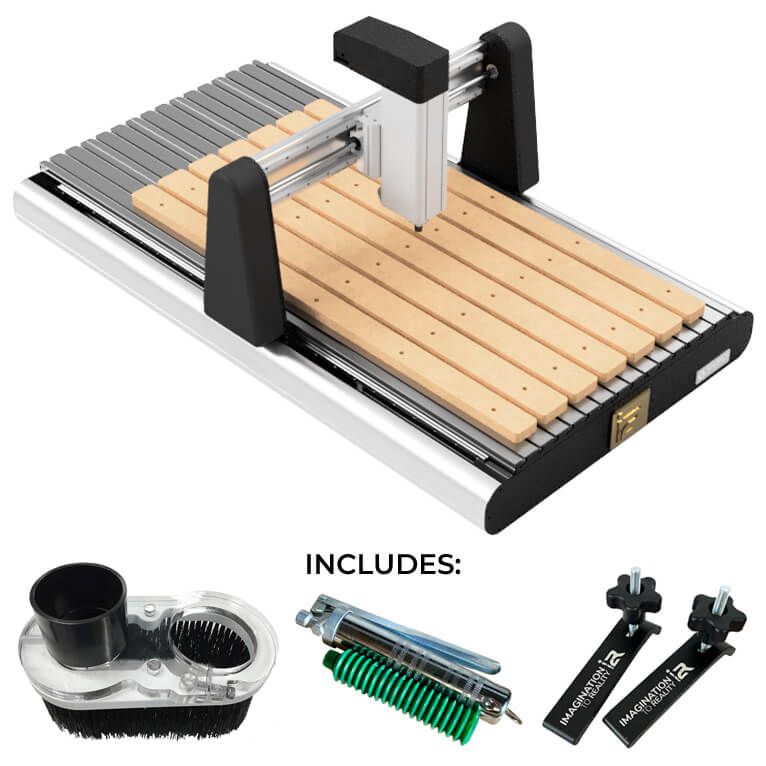

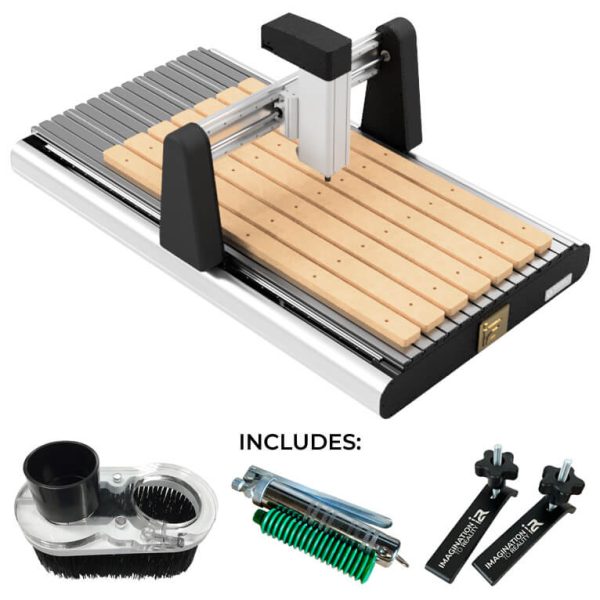

Every SIMPLY Series machine comes fully equipped with the essentials to get you started right away:

  • Set of Clamps – to secure materials safely and reliably.

  • Dust Shoe – to keep your workspace clean and protect your components.

  • Grease Gun Kit – for routine maintenance and long-term performance.

Ready To Ship Today!

Need a formal quotation before purchasing?
Request A Quotation



Choose Simply Model:

Bundled product placeholder image

SIMPLY Overarm Dust Accessory

220 Dust Shoe

Simply - Hold Down Clamps (pair)

Simply - Vacuum Hold-Down Kit (5 pods)

Simply Series Bit Set (9pc) w/ Spektra Coating by Amana Tool

Lateral Clamp Kit

EMPOWER[ED] ACADEMY: CNC Certification + Lesson Guides

LED Kit

Vacuum Table for CNC (2' x 2')

Vacuum Blower Motor for CNC

VCarve Desktop

Aspire

*Additional freight charges may apply for any orders shipped to remote areas.

Description

We are now offering the SIMPLY Series, a limited-edition CNC lineup designed exclusively for our long-time customers. These machines offer the reliability and precision you’ve come to expect from us, at an exclusive discounted price for this special release. The SIMPLY Series is available in three sizes, each with prismatic guides, ball screws, and the same powerful, yet easy to use, DSP pendant controller which we utilize on our larger machines. We also provide a full complement of accessories ensuring that you’ll receive a package that’s specifically tailored to your CNC needs.

Your new Limited Edition Simply Series will be custom built for you once we receive your order. Reserve yours today with a 50% deposit. Estimated delivery is 4 months (don’t worry, it will be worth the wait!)

X axis travel 23.81″ (605mm)
Y axis travel Simply-4 = 24.01″ (610mm)
Simply-6 = 35.82″ (910mm)
Simply-8 = 47.63″ (1210mm)
Z axis travel 3.937″ (100mm)
Table work area Simply-4 = 28.4″ x 37″
Simply-6 = 28.4″ x 49″
Simply-8 = 28.4″ x 61″

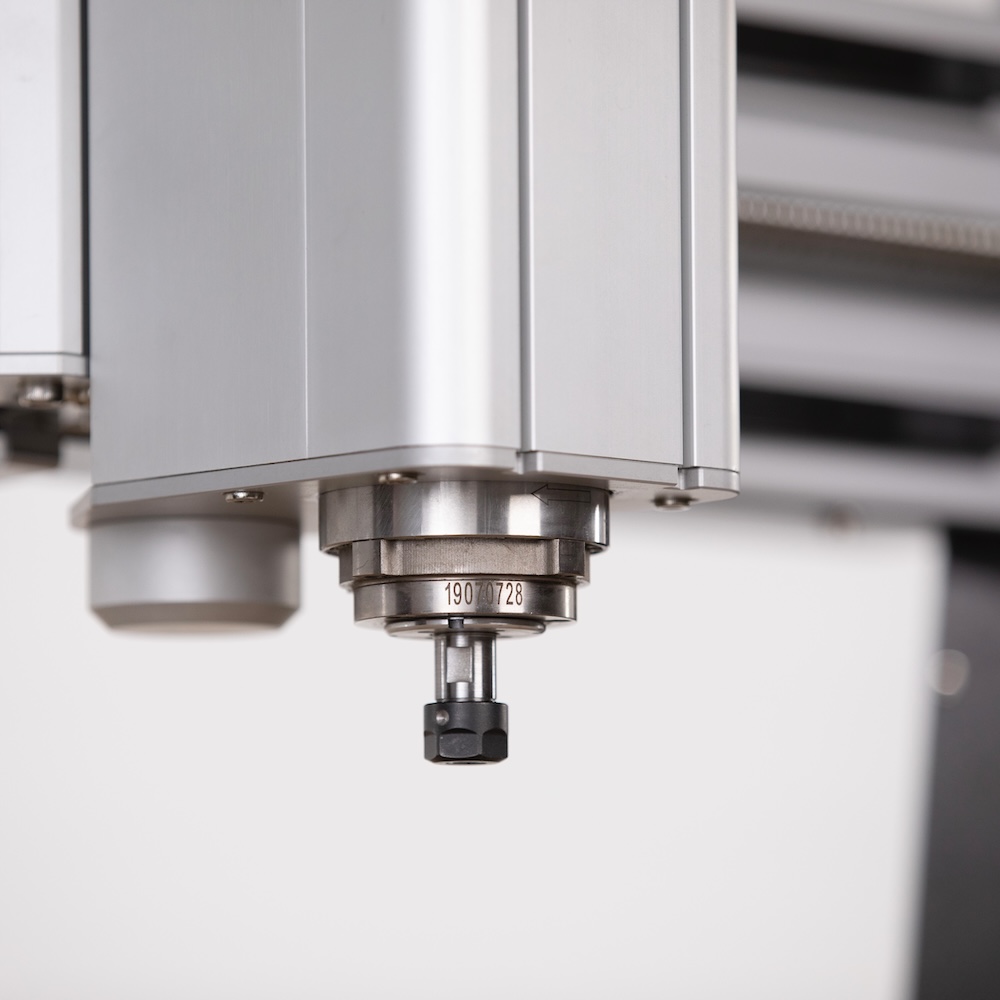

Electro Spindle 800W (1HP)
Includes Collets 1/4″ & 1/8″
Spindle speed 0-24,000 RPM
Rapid feed rate 150 IPM (3.81 MPM)
Precision Linear Guideway X/Y/Z

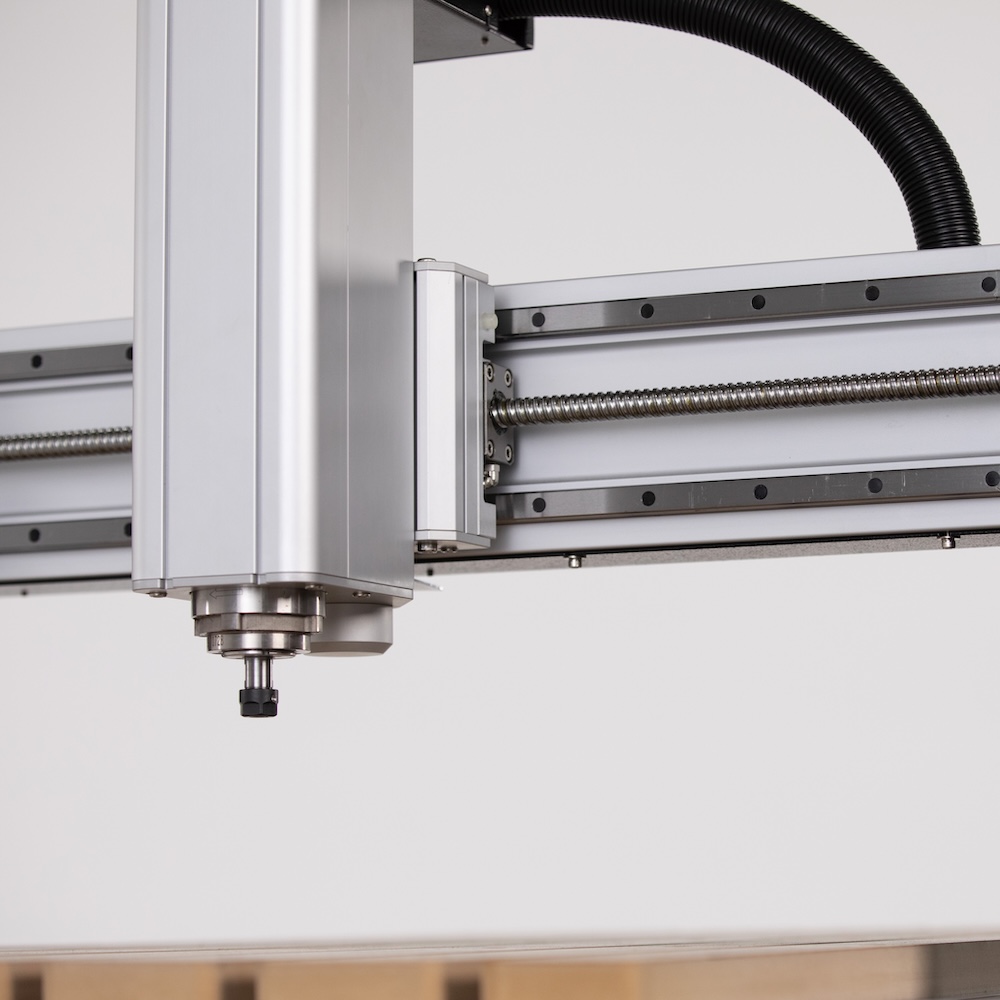

Precision Ball Screw X/Y/Z
Ball Screw Diameter 16mm
Resolution +/- .00589″ (0.15mm)
Power requirements 115V, 50~60Hz, 13A, 1-Phase (Canada 230V, 7A)
Working Table High rigidity Aluminum Extrusion
Gantry bridge High rigidity Aluminum Extrusion
Gantry Supports Aluminum billet machined
Max Gantry Clearance 5 1/2″ (139.0mm)
Gantry Clearance Above Spoil Brds 4 1/2″ (114.3mm)
Machine Base All Welded Steel Frame
Machine Dimensions Simply-4 = 38″L x 35″W x 28″H
Simply-6 = 50″L x 35″W x 28″H
Simply-8 = 62″L x 35″W x 28″H
Shipping Dimensions Simply-4 = 40″ x 38″ x 21″
Simply-6 = 55″ x 38″ x 21″
Simply-8 = 65″ x 38″ x 21″
Machine Weight Simply-4 = 176 lbs
Simply-6 = 209 lbs
Simply-8 = 242 lbs
Tool Touch Off Included

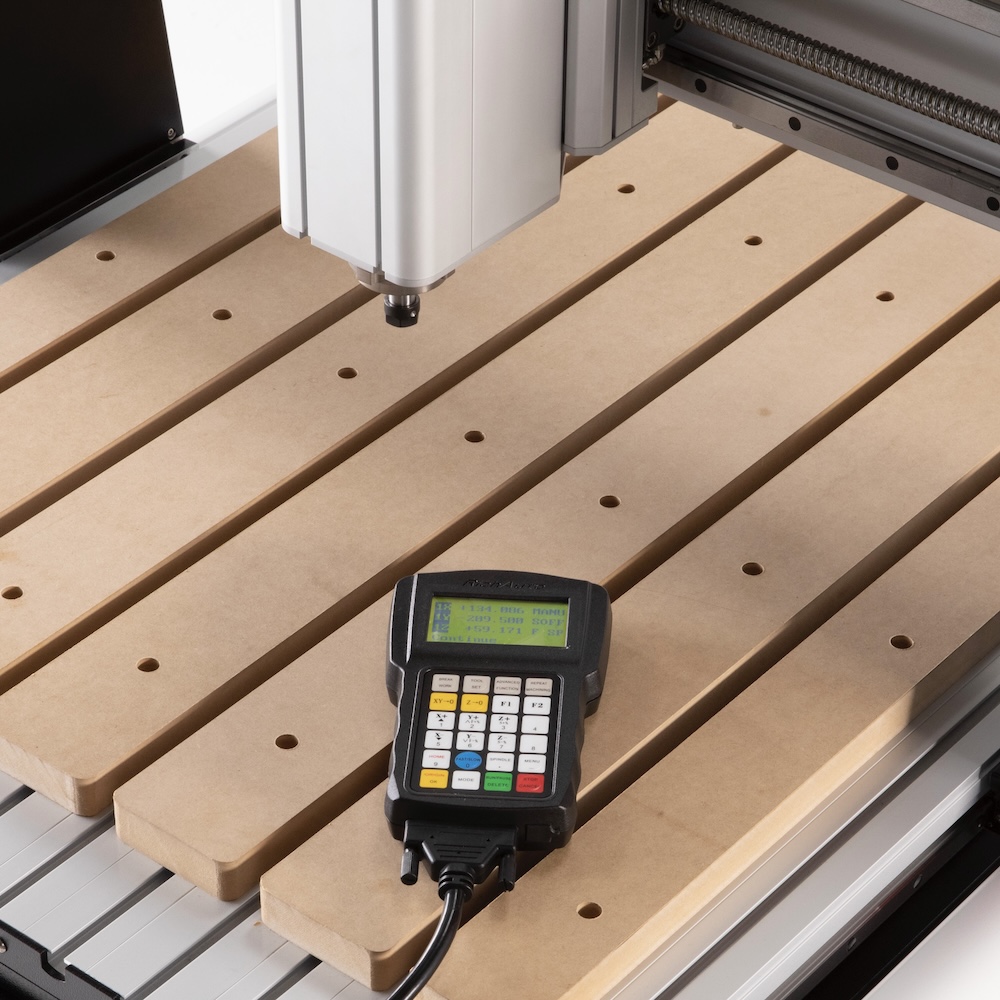

Controller RichAuto B11 DSP
CNC motion control system
USB port for easy file transfer.
(NO PC REQUIRED)
Owner’s Manual Download Here
