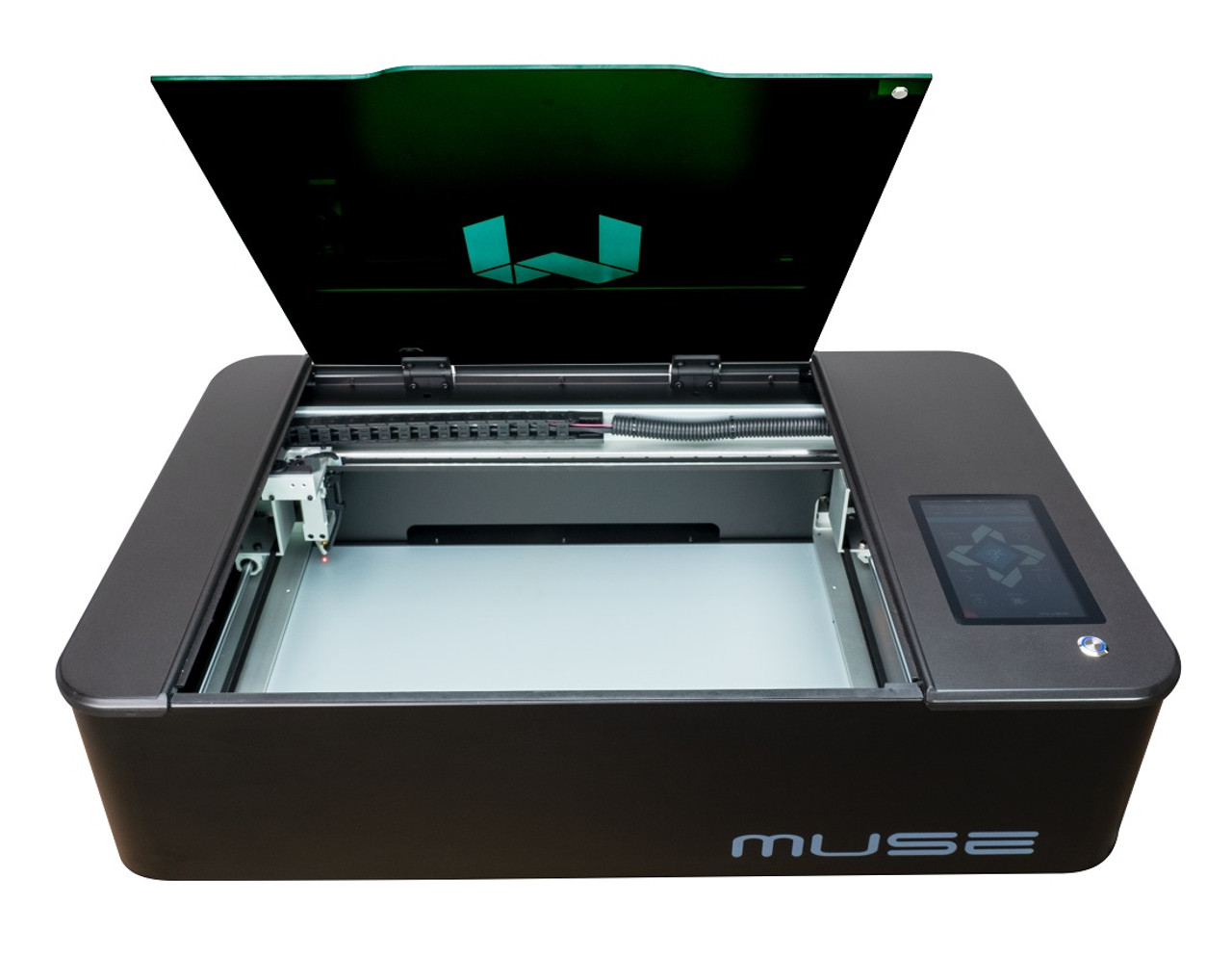

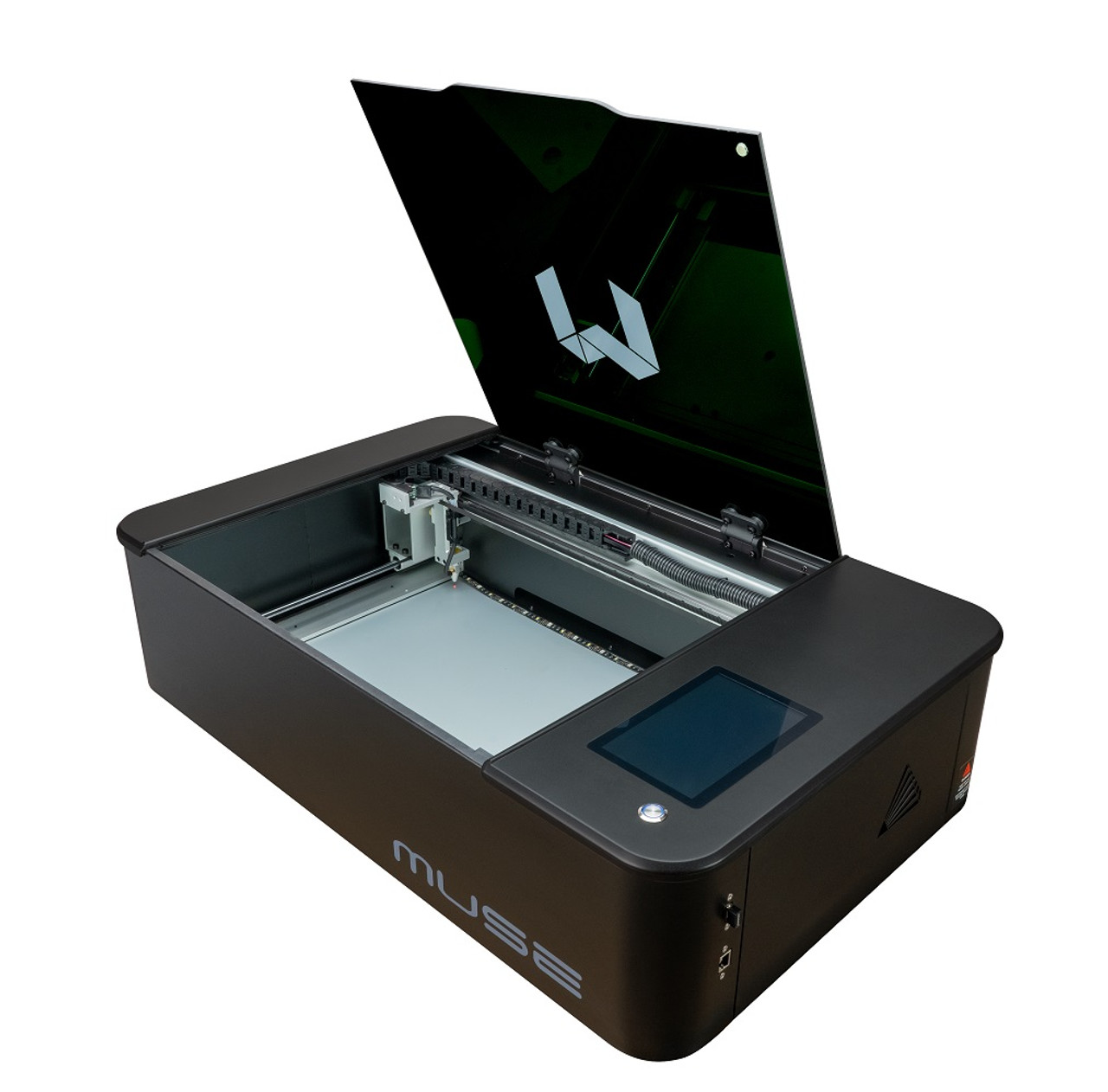

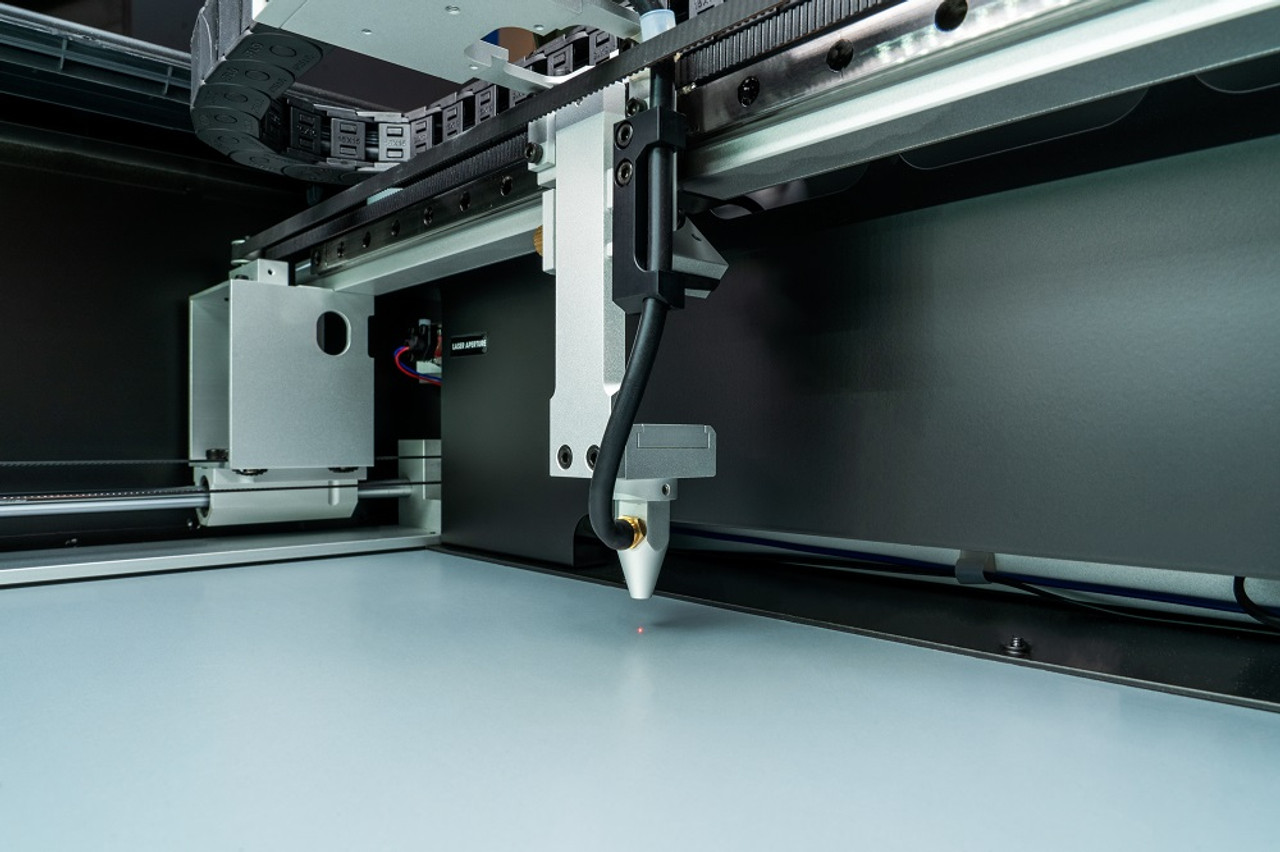

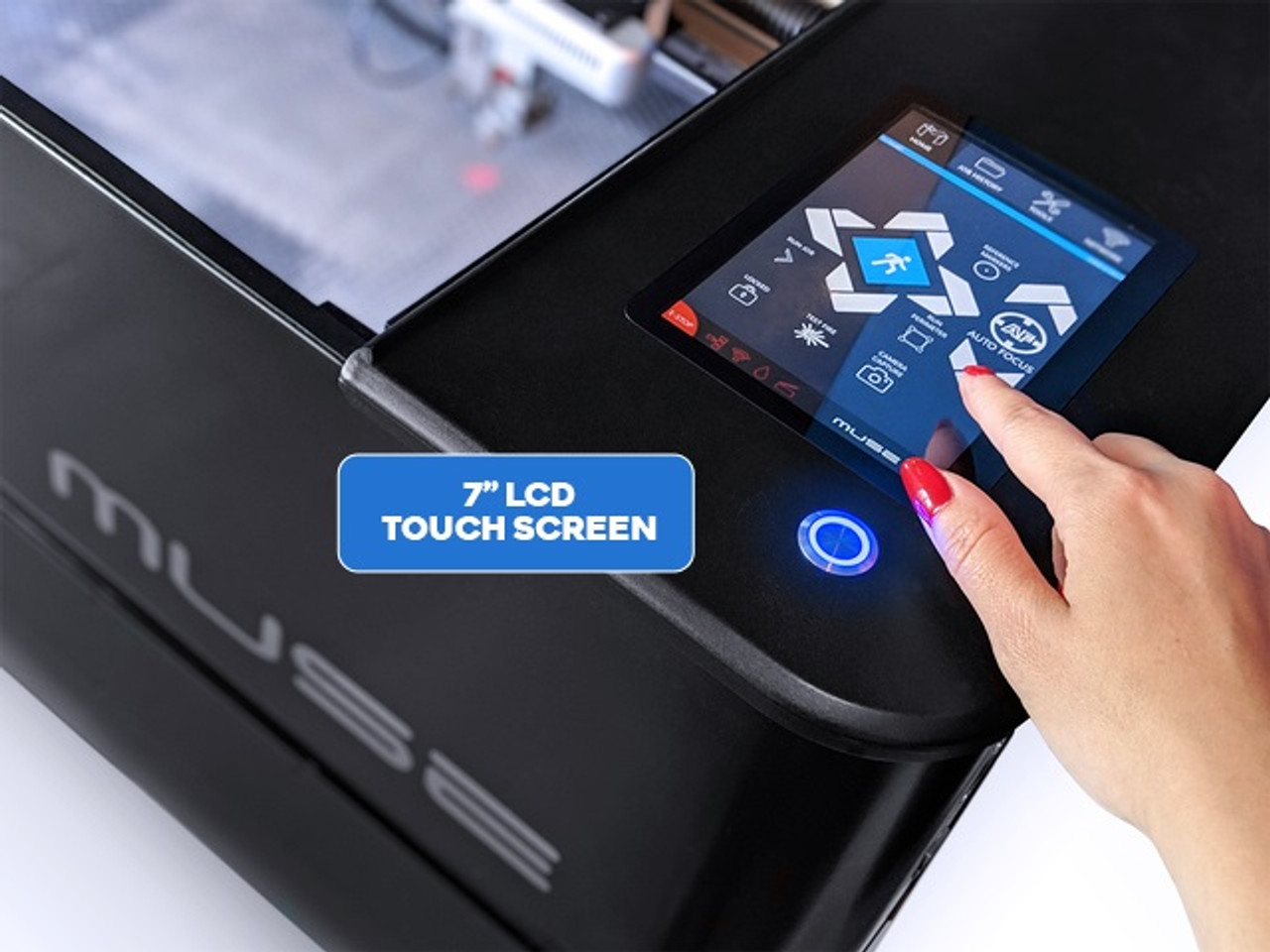

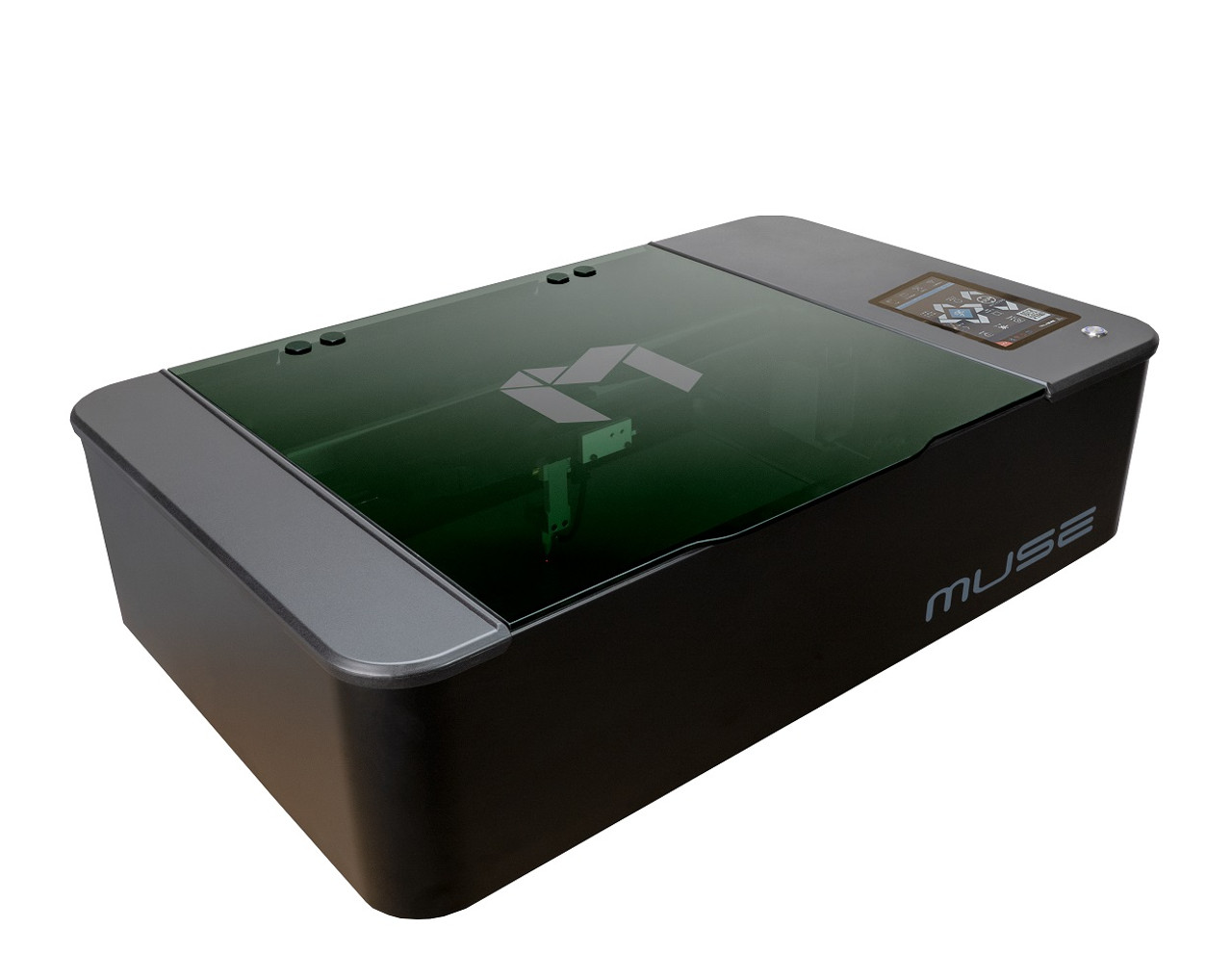

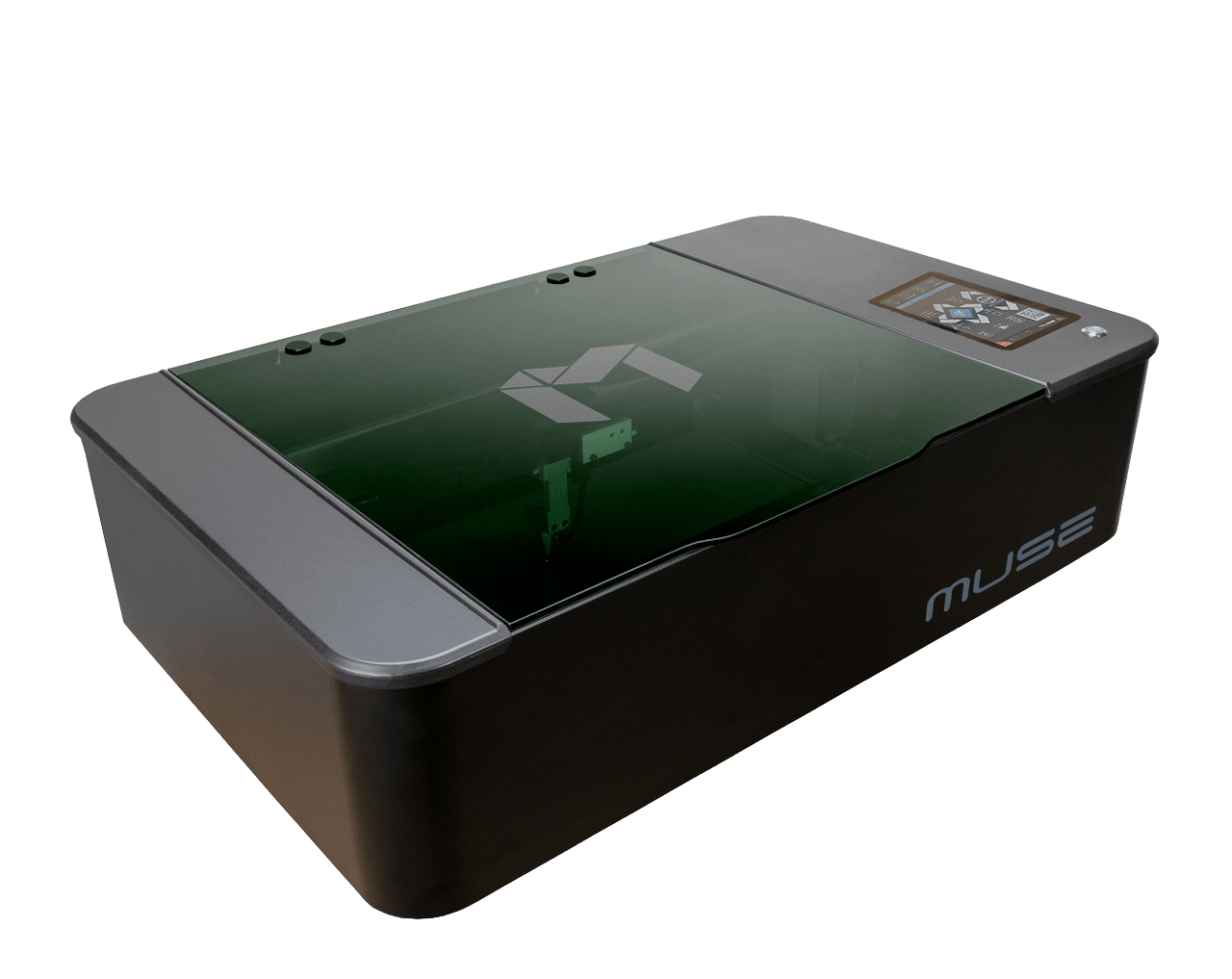

Muse Core – 40 Watt Laser

SKU: MUSE-40

From: Original price was: $4,999.00CAD.Current price is: $3,600.00CAD.

The Muse Core is a compact, professional-grade CO₂ laser cutter and engraver designed for makers, classrooms, and small businesses. With a 40W laser, 20″ x 12″ work area, and intuitive browser-based software, it delivers precise cutting and engraving without the complexity of industrial systems.

Comes with a 30 day warranty. No returns.

Need a formal quotation before purchasing?
Request A Quotation

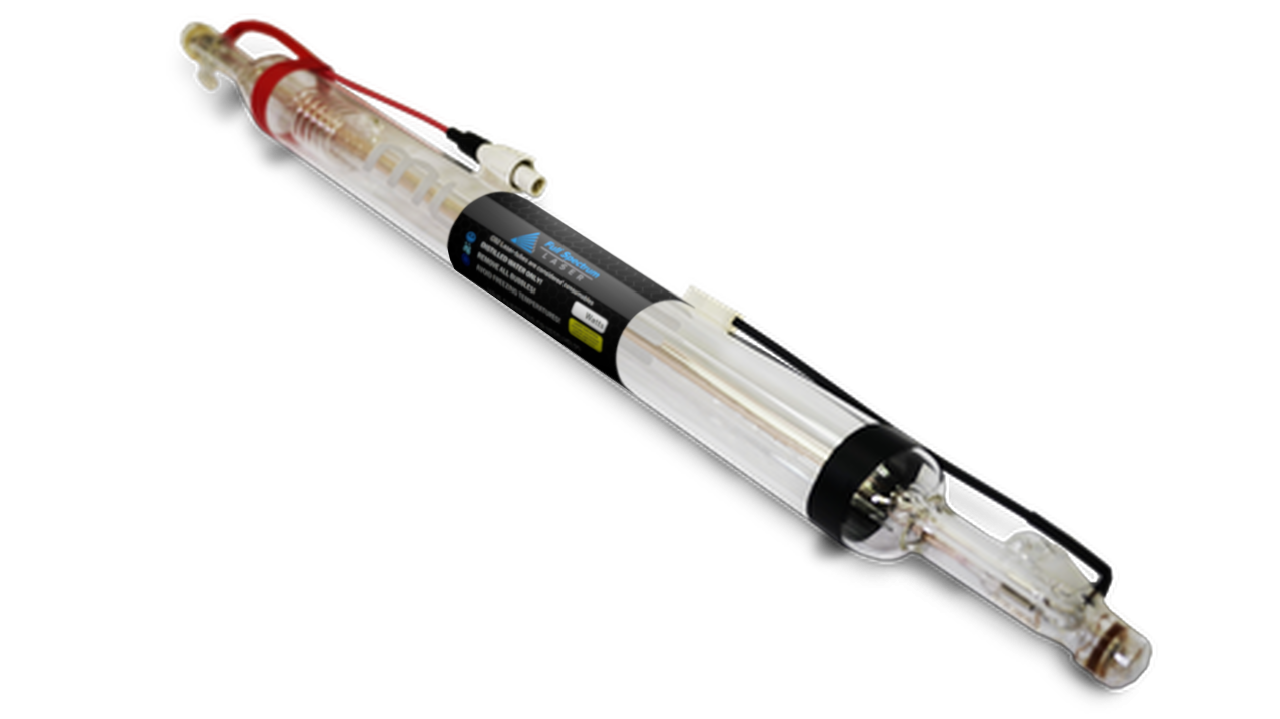

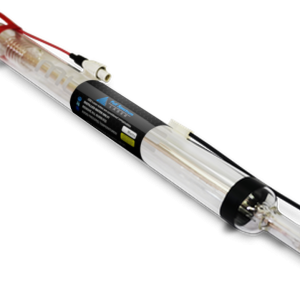

45W Laser Tube

45W upgrade

Extends the life of your laser tube

Extended Warranty

2 Year Extended Warranty Muse

Extend your warranty to 2 years

Muse 1.5″ ZnSE Focus Lens

Muse 1.5" ZnSE Focus Lens

1/16” cutting capacity, best detail

Muse 2″ ZnSe Focus Lens

Muse 2" ZnSe Focus Lens

1/4” cutting capacity, great utility lens

Muse 2.5″ ZnSe Focus Lens

Muse 2.5" ZnSe Focus Lens

1/2” cutting capacity

M1.5LENS&M2.5LENS

Muse 1.5" + 2.5" ZnSE Focus Lens Special Combo

Buy these together and save!

Muse 5.0″ ZnSe Focus Lens

Muse 5.0" ZnSe Focus Lens

2” cutting capacity

Radiator Water Chiller

Radiator Water Chiller

For heavy duty use to cool the CO2 glass tube

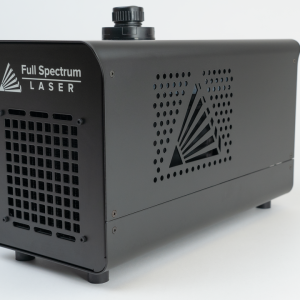

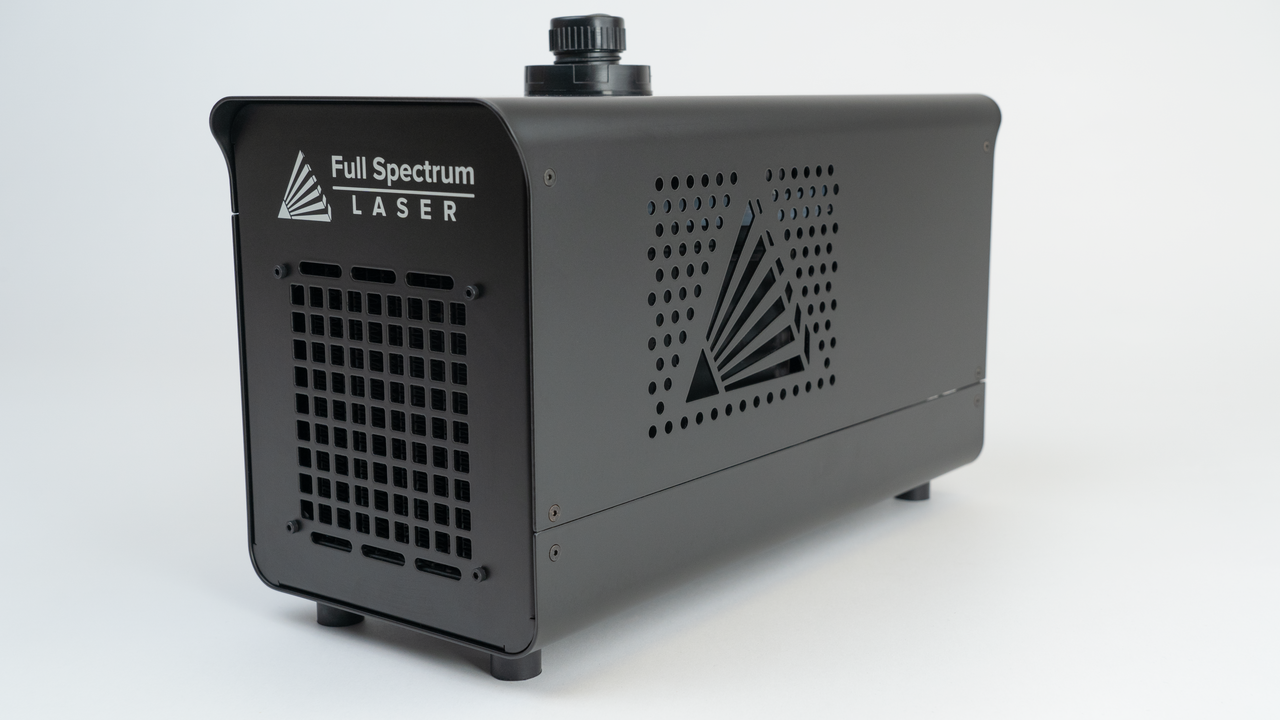

Coolbox

Coolbox

Water pump and reservoir and air compressor in one convenient package

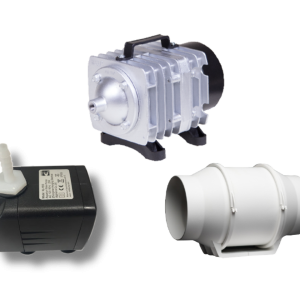

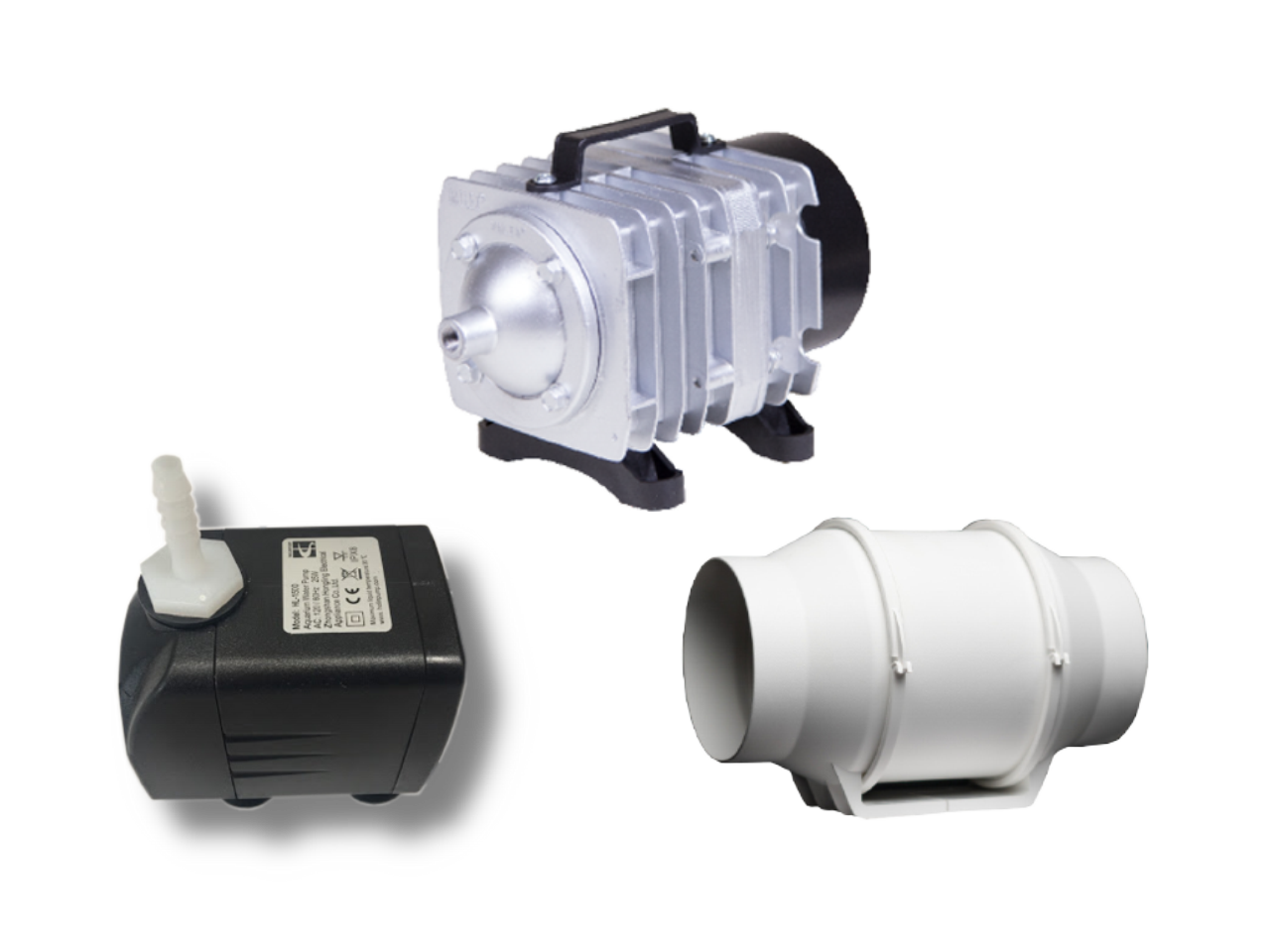

hobbykit

Hobby Kit

Water Water pump and reservoir and air compressor in one convenient package

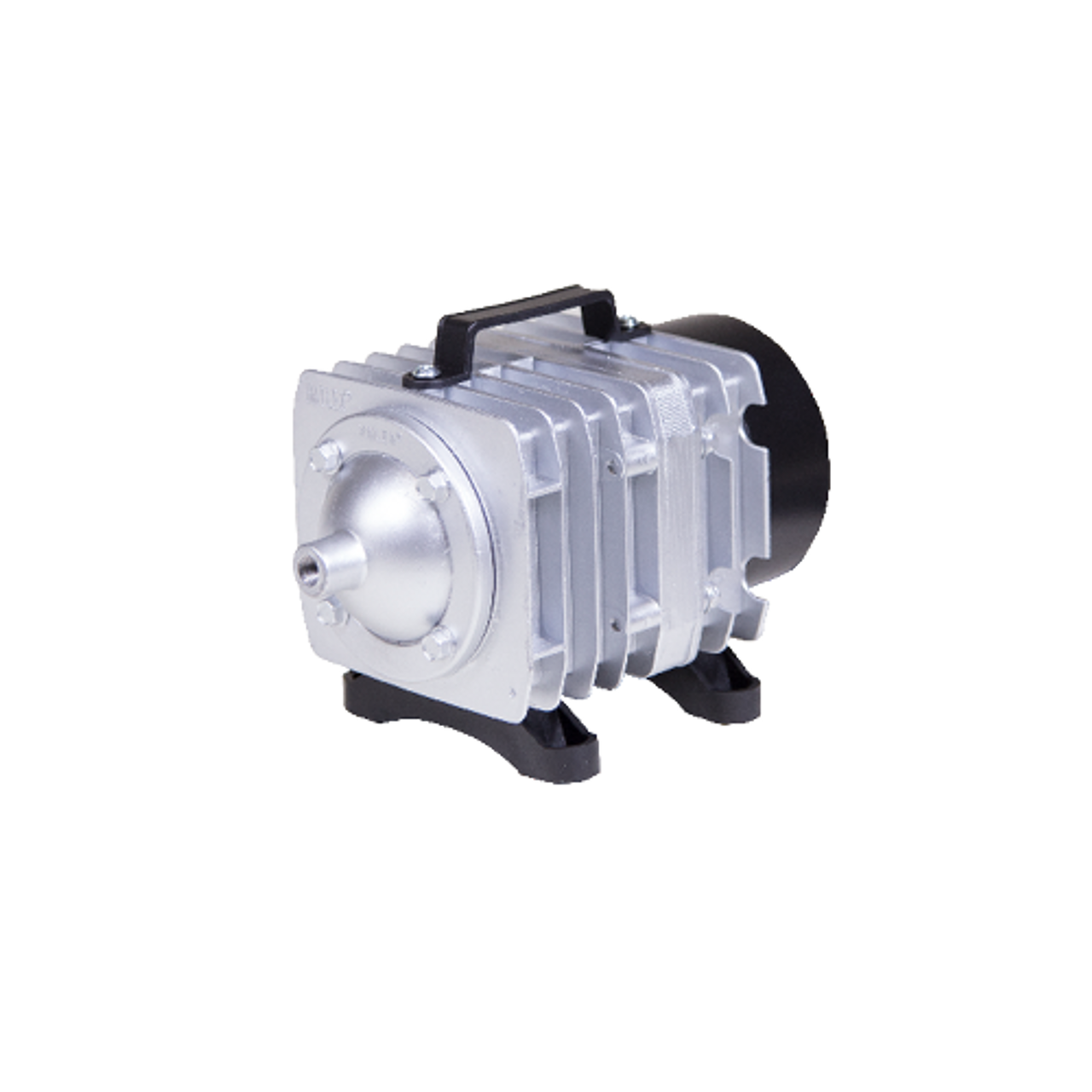

Hobby Series Air Compressor

Hobby Series Air Compressor

Fuels air assist at the laser head

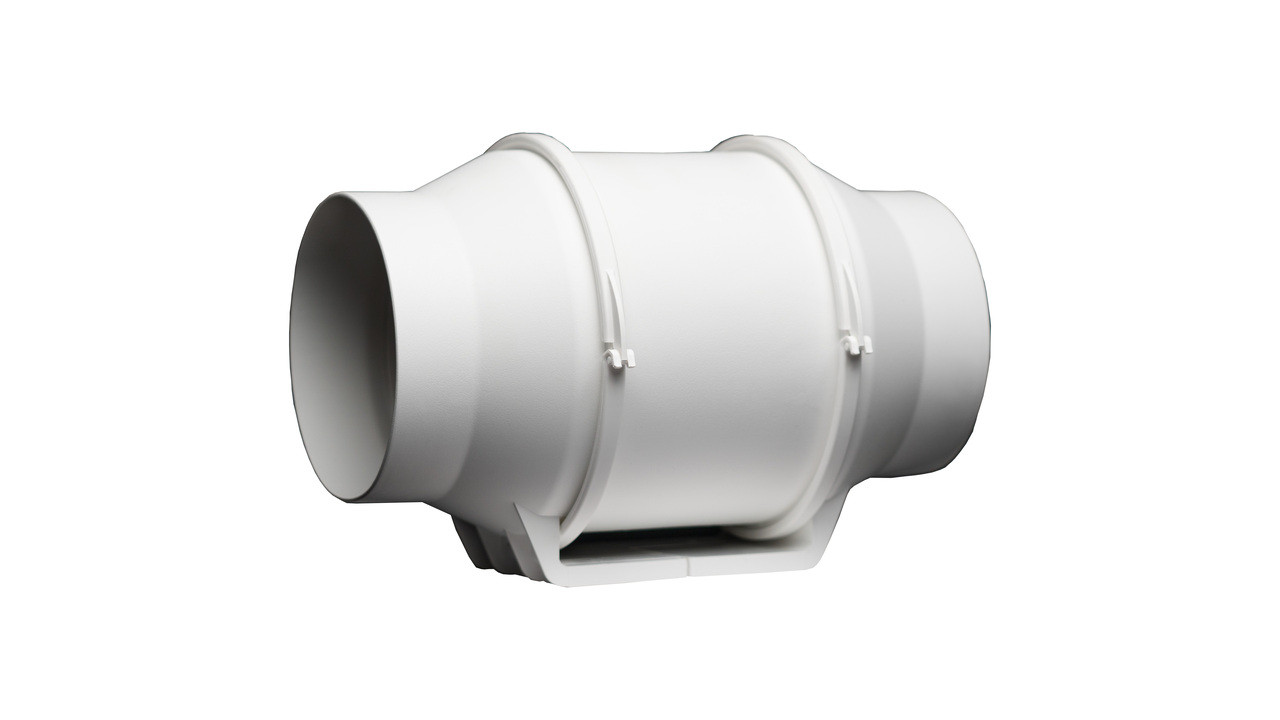

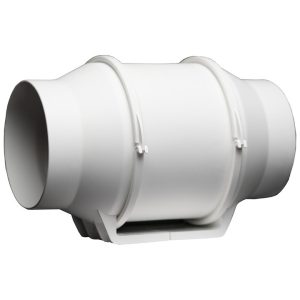

M-Series Exhaust Fan

M-Series Exhaust Fan

Exhaust fumes. Requires outside ventilation

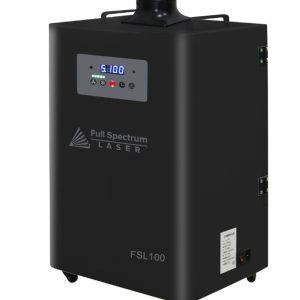

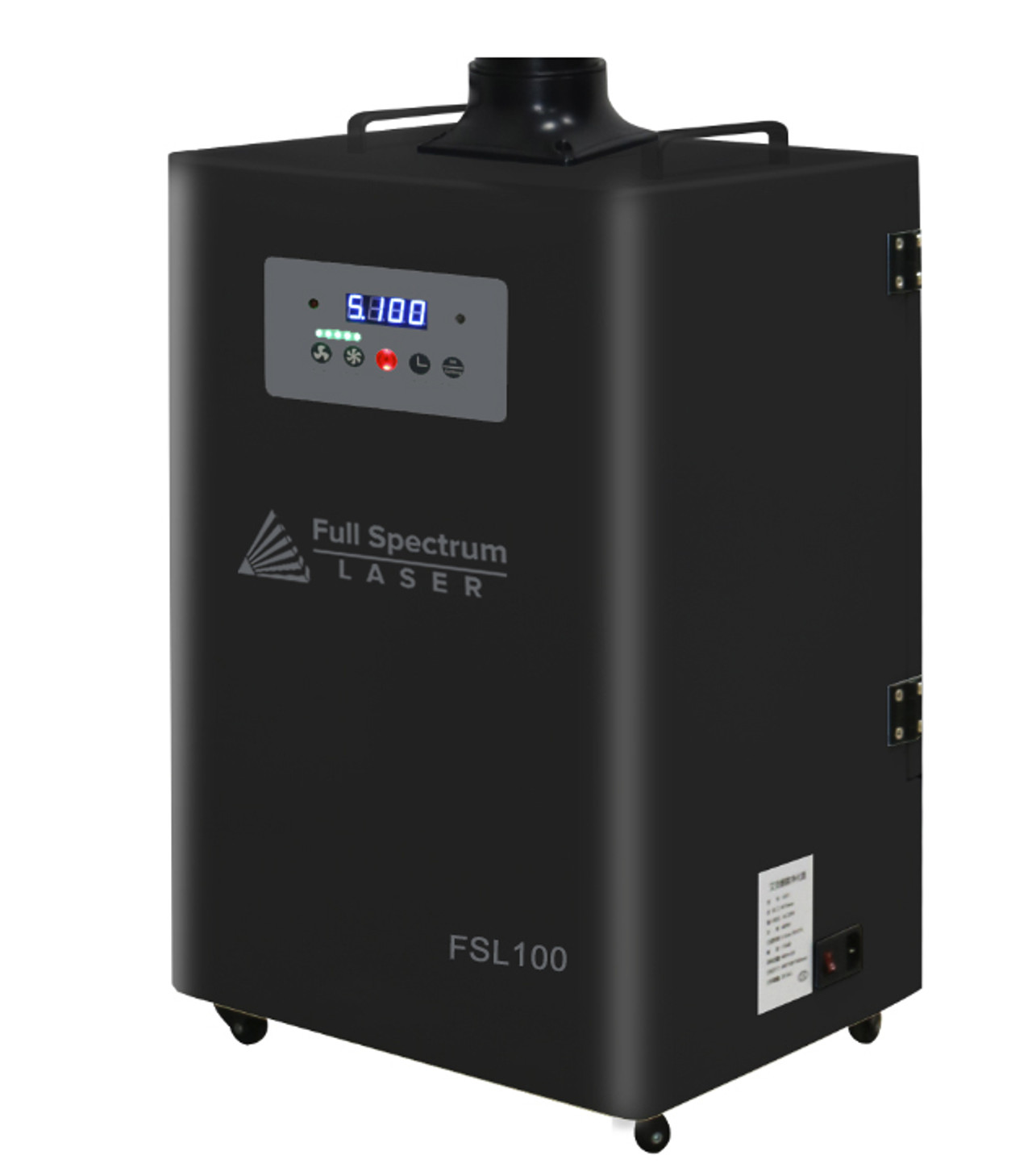

FSL100 Fume Extractor

FSL 100 Fume Extractor

For light duty applications

FSL 300 Fume Extractor

FSL 300 Fume Extractor

For heavy duty applications

Chuck Rotary with Friction Axis

Chuck Rotary with Friction Axis

Raise your laser game with this amazing accessory!

*Additional freight charges may apply for any orders shipped to remote areas.

Description

Ready for more power? Step up to the Muse Titan for a 75W CO2 laser with a larger work area.

Tech Specs

Working Area
  • Engraving Area: 20″ x 12″ (508mm x 305mm)
  • Z-Height: 2.5″
Weight & Dimensions
  • Machine Dimensions: Width: 32.3″ x Depth: 20.3″ x Height: 8.5″ (820mm x 515mm x 215mm)
  • Weight: 54 lbs (24.5 kg)
Laser
  • Laser Classification: Class 3
  • Laser Type: Sealed CO2 Laser Tube
  • Laser Power: 40W
  • Focus Lens Included: 2″
  • Integrated Red Guiding Laser and Beam Combiner
  • Resolution: Up to 1000 dpi
Power
  • Power Supply: ​AC 110V native
  • Gross Power: < 1000W
System
  • Operation Modes: ​Precision Raster, Vector or Combined Modes
  • Motion Control: High-speed, High-precision stepper motors
  • Operating Temperature: 0C – 45C

Materials

Material Cuts Engraves
Acrylic ✓ ✓
Coated Metals × ✓
Fabric ✓ ✓
Glass × ✓
Leather ✓ ✓
Paper ✓ ✓
Rubber ✓ ✓
Stone × ✓
Wood ✓ ✓

Software

Software
  • RetinaEngrave v3.0
Compatibility
  • PC, Mac & Linux
Browser Compatibility
  • Google Chrome (recommended), Safari, Firefox, Edge
File Import Options
  • JPG, PNG, BMP, TIFF, SVG, DXF, DWG
Minimum Screen Resolution
  • 1024 x 768 Pixels
Wireless Compatibility
  • 802.11n

More Information

What's Included

  • Honeycomb Table

NOT INCLUDED:  Air Compressor, Water Pump, and Exhaust fan
