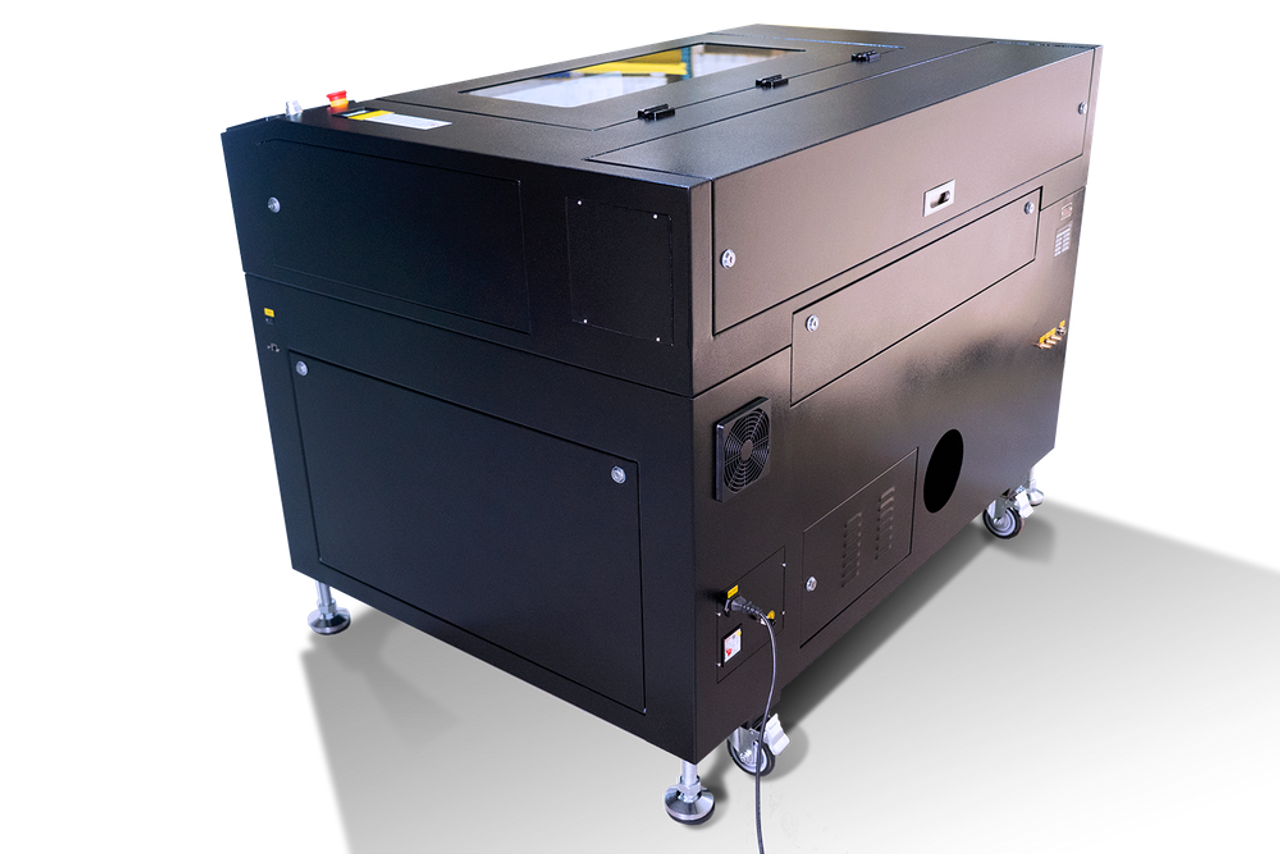

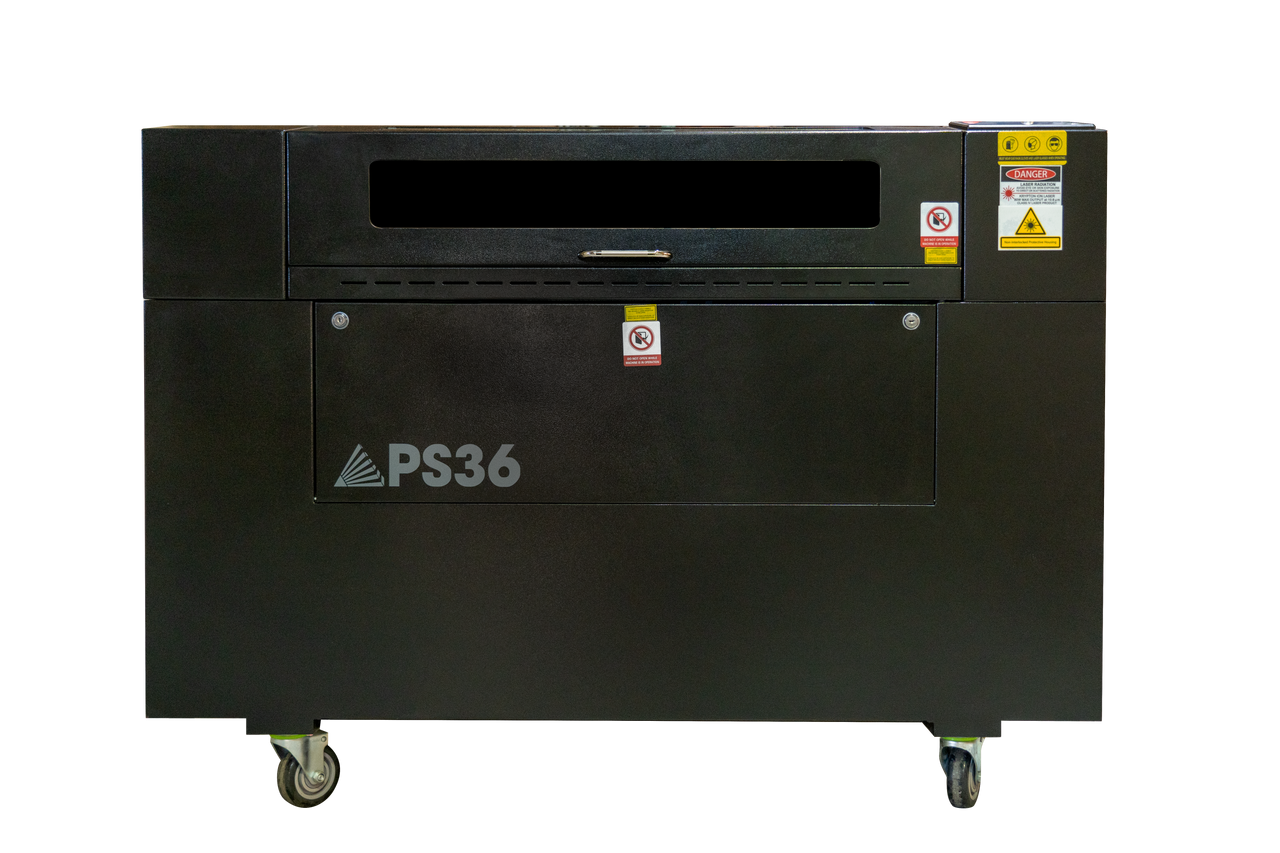

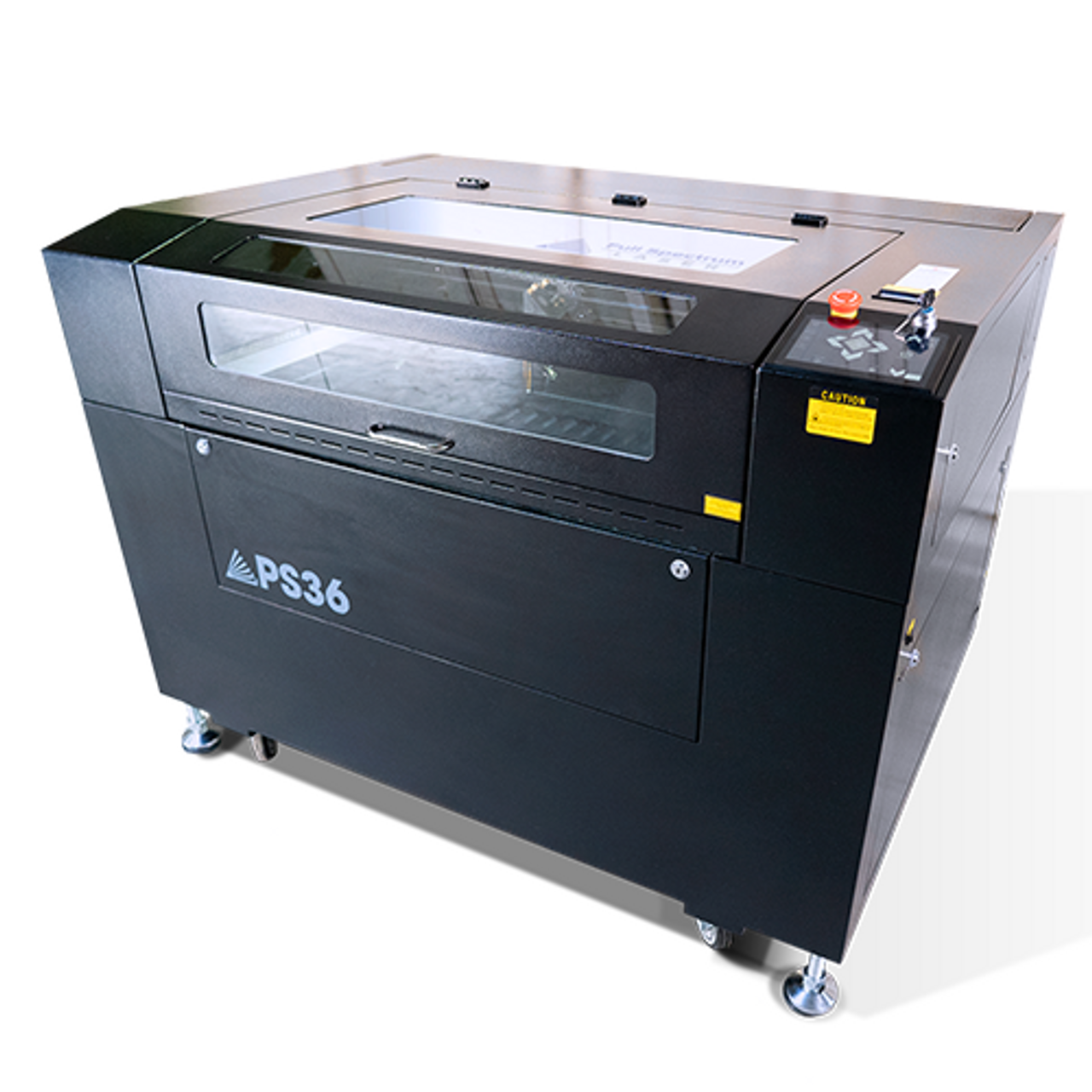

PS36 – 90 Watt Laser Machine
PS36 - 90 Watt Laser by Full Spectrum - Image 2
PS36 - 90 Watt Laser by Full Spectrum - Image 3
PS36 - 90 Watt Laser by Full Spectrum - Image 4
PS36 - 90 Watt Laser by Full Spectrum - Image 5
PS36 - 90 Watt Laser by Full Spectrum - Image 6
PS36 - 90 Watt Laser by Full Spectrum - Image 7

PS36 – 90 Watt Laser by Full Spectrum

SKU: P3624-90W

From: Original price was: $15,999.00CAD.Current price is: $12,999.00CAD.

With 90 watts of power this machine combines speed and power.

Need a formal quotation before purchasing?
Request A Quotation

100W100W Laser Tube (Titan Only)

120 Watt Upgrade

Cut up to 1” material with a single pass!

100W100W Laser Tube (Titan Only)

Upgrade to 150 Watts

Cut up to 1.5” material with as single pass! Crazy for a laser in this class!

Refrigerated Active Cooling Water Chiller

Refrigerated Active Cooling Water Chiller

The ultimate cooling system for the big time user!

Muse 1.5″ ZnSE Focus Lens

Muse 1.5" ZnSE Focus Lens

1/16” cutting capacity, best detail

Muse 2″ ZnSe Focus Lens

Muse 2" ZnSe Focus Lens

1/4” cutting capacity, great utility lens

Muse 2.5″ ZnSe Focus Lens

Muse 2.5" ZnSe Focus Lens

1/2” cutting capacity

M1.5LENS&M2.5LENS

Muse 1.5" + 2.5" ZnSE Focus Lens Special Combo

Buy these together and save!

Muse 5.0″ ZnSe Focus Lens

Muse 5.0" ZnSe Focus Lens

2” cutting capacity

Chuck Rotary with Friction Axis

Chuck Rotary with Friction Axis

Raise your laser game with this amazing accessory!

FSL 300 Fume Extractor

FSL 300 Fume Extractor

For heavy duty applications

Extended Warranty

2 Year Extended Warranty PS36

Extend your warranty to 2 years

*Additional freight charges may apply for any orders shipped to remote areas.

Description

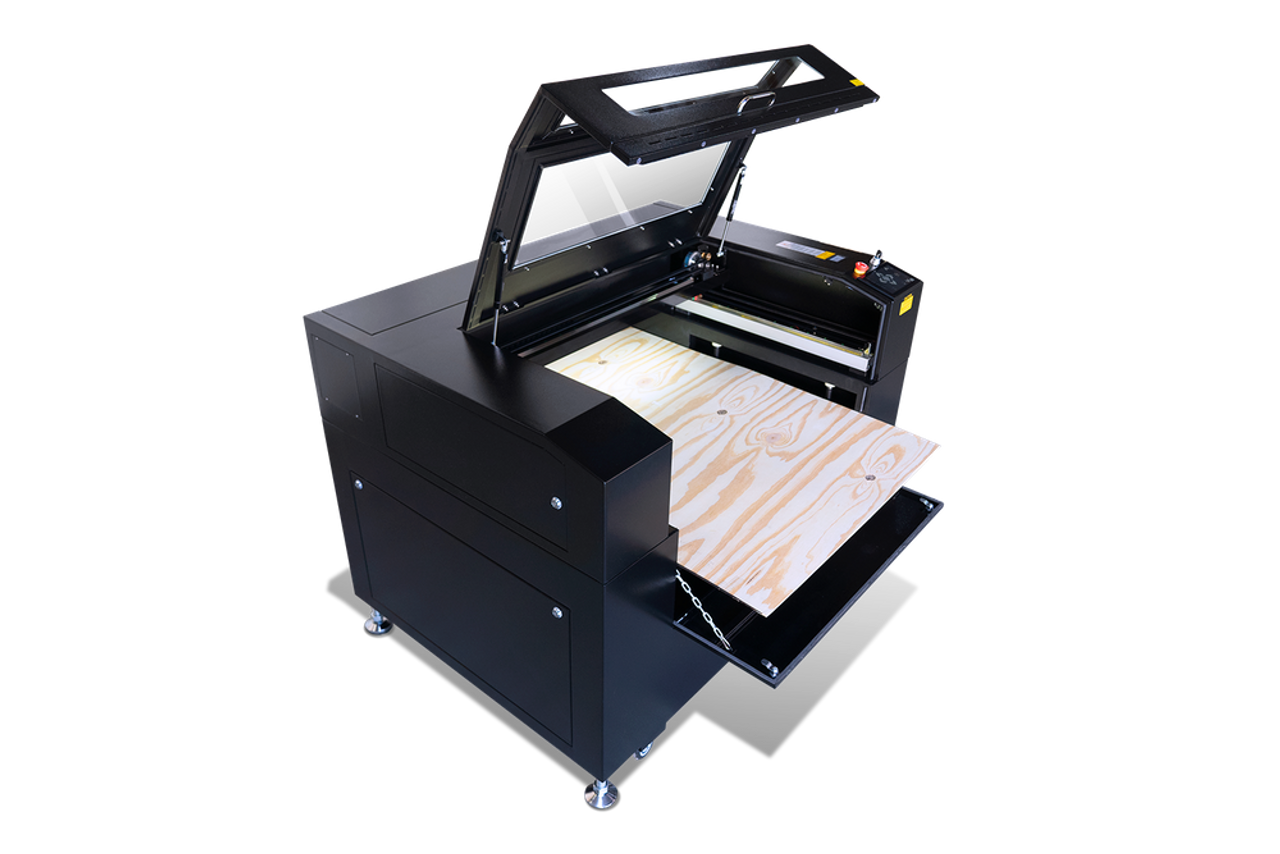

The PS36 (36”x24””) laser cutting and engraving system comes standard with the industry-leading RetinaEngrave software and is designed for heavy use. The pass through doors allow for infinite length on the Y (16”) axis!

Want some personalized assistance choosing your laser?  Have questions?
We’re here to help!



Tech Specs

Weight & Dimensions
  • Engraving Area: 36″ x 24″ (914mm x 610mm)
  • Machine Dimensions: ​56″ x 40″ x 41″ (1422.4mm x 1016mm x 1041mm)
  • Weight: 484 lbs (220 kg)
  • Z-Table Range: 14″
Laser
  • Laser Classification: Class 3R
  • Laser Type: Sealed CO2 Laser Tube
  • Laser Power: 90W
  • Focus Lens Included: 2.5″
Power
  • Power Supply: ​AC 110V native (220V option available)
  • Gross Power: < 1000W
System
  • Operation Modes: ​Precision Raster, Vector or Combined Modes
  • Motion Control: High-Speed Stepper Motors
  • Operating Temperature: 0C – 45C

Materials

Material Cuts Engraves
Acrylic ✓ ✓
Coated Metals × ✓
Fabric ✓ ✓
Glass × ✓
Leather ✓ ✓
Paper ✓ ✓
Rubber ✓ ✓
Stone × ✓
Wood ✓ ✓

Software

Software
  • RetinaEngrave v3.0
Compatibility
  • PC, Mac & Linux
Browser Compatibility
  • Google Chrome (recommended), Safari, Firefox, Edge
File Import Options
  • JPG, PNG, BMP, TIFF, SVG, DXF, DWG
Minimum Screen Resolution
  • 1024 x 768 Pixels
Wireless Compatibility
  • 802.11n
More Information

What's Included

  • Exhaust Fan
  • Air Compressor
  • Radiator Water Chiller
  • Honeycomb Table
  • Knife Edge Table
  • Tool Box
