Sale!

Muse 3D – 40 Watt Laser

SKU: MUSE3D-40W

From: Original price was: $8,999.00CAD.Current price is: $4,299.00CAD.

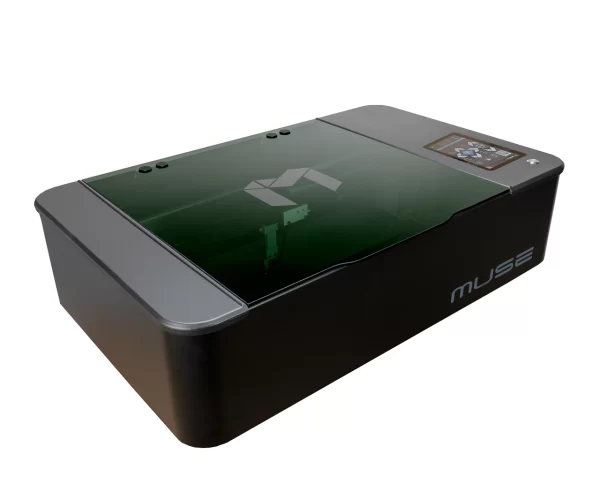

The Muse 3D is a compact desktop CO₂ laser cutter and engraver featuring autofocus and a built-in 3D camera for precise alignment. With a 20″ x 12″ work area and intuitive browser-based software, it delivers accurate, repeatable results for makers, schools, and small businesses.

Comes with a 30 day warranty. No returns.

Need a formal quotation before purchasing?
Request A Quotation

45W upgrade

Extends the life of your laser tube

2 Year Extended Warranty Muse

Extend your warranty to 2 years

Muse 1.5" ZnSE Focus Lens

1/16” cutting capacity, best detail

Muse 2" ZnSe Focus Lens

1/4” cutting capacity, great utility lens

Muse 2.5" ZnSe Focus Lens

1/2” cutting capacity

Muse 1.5" + 2.5" ZnSE Focus Lens Special Combo

Buy these together and save!

Muse 5.0" ZnSe Focus Lens

2” cutting capacity

Radiator Water Chiller

For heavy duty use to cool the CO2 glass tube

M-Series Exhaust Fan

Exhaust fumes. Requires outside ventilation

FSL 100 Fume Extractor

For light duty applications

FSL 300 Fume Extractor

For heavy duty applications

Chuck Rotary with Friction Axis

Raise your laser game with this amazing accessory!

*Additional freight charges may apply for any orders shipped to remote areas.

Description

The Muse 3D is designed for users who want professional laser cutting and engraving capabilities in a compact, easy-to-use system. Built for makers, educators, and small manufacturing environments, it combines precision, automation, and accessibility in a single platform.

At the core of the system is a CO₂ laser capable of cutting and engraving a wide range of materials, including wood, acrylic, leather, and more. The 20″ x 12″ work area provides enough space for practical projects while maintaining a footprint that fits comfortably in most workshops or classrooms.

What sets the Muse 3D apart is its integrated 3D camera and autofocus system. The camera allows you to position artwork directly on your material with visual accuracy, reducing setup time and improving alignment. The autofocus feature ensures consistent cutting and engraving performance without manual adjustment, making it easier to achieve reliable results across multiple jobs.

The system is powered by browser-based software, allowing you to run the machine without installing programs or managing complex setups. This makes it especially well-suited for shared environments like schools or collaborative workspaces.

With a balance of precision, ease of use, and advanced features, the Muse 3D is a practical solution for anyone looking to expand into laser cutting and engraving with confidence.

Tech Specs

Working Area
  • Engraving Area: 20″ x 12″ (508mm x 305mm)
  • Z-Height: 2.5″
Weight & Dimensions
  • Machine Dimensions: Width: 32.3″ x Depth: 20.3″ x Height: 8.5″ (820mm x 515mm x 215mm)
  • Weight: 54 lbs (24.5 kg)
Laser
  • Laser Classification: Class 3
  • Laser Type: Sealed CO2 Laser Tube
  • Laser Power: 40W
  • Focus Lens Included: 2″
  • Integrated Red Guiding Laser and Beam Combiner
  • Resolution: Up to 1000 dpi
Power
  • Power Supply: ​AC 110V native
  • Gross Power: < 1000W
System
  • Operation Modes: ​Precision Raster, Vector or Combined Modes
  • Motion Control: High-speed, High-precision stepper motors
  • Operating Temperature: 0C – 45C

Materials

Material Cuts Engraves
Acrylic
Coated Metals ×
Fabric
Glass ×
Leather
Paper
Rubber
Stone ×
Wood

Software

Software
  • RetinaEngrave v3.0
Compatibility
  • PC, Mac & Linux
Browser Compatibility
  • Google Chrome (recommended), Safari, Firefox, Edge
File Import Options
  • JPG, PNG, BMP, TIFF, SVG, DXF, DWG
Minimum Screen Resolution
  • 1024 x 768 Pixels
Wireless Compatibility
  • 802.11n

More Information

What's Included

  • Internal Exhaust Fan

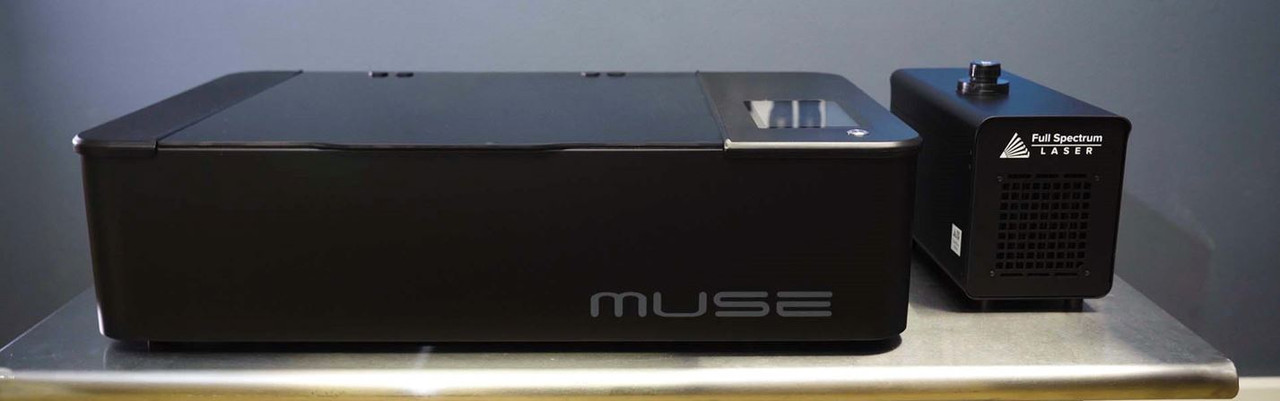

  • Air Compressor (Coolbox)
  • Honeycomb Table
  • Basic Water Cooling Solution (Coolbox)
