PERFORMANCE 32 (48″ x 96″)

SKU: DISCOVERY8-1

From: Original price was: $29,999.00CAD.Current price is: $23,999.00CAD.

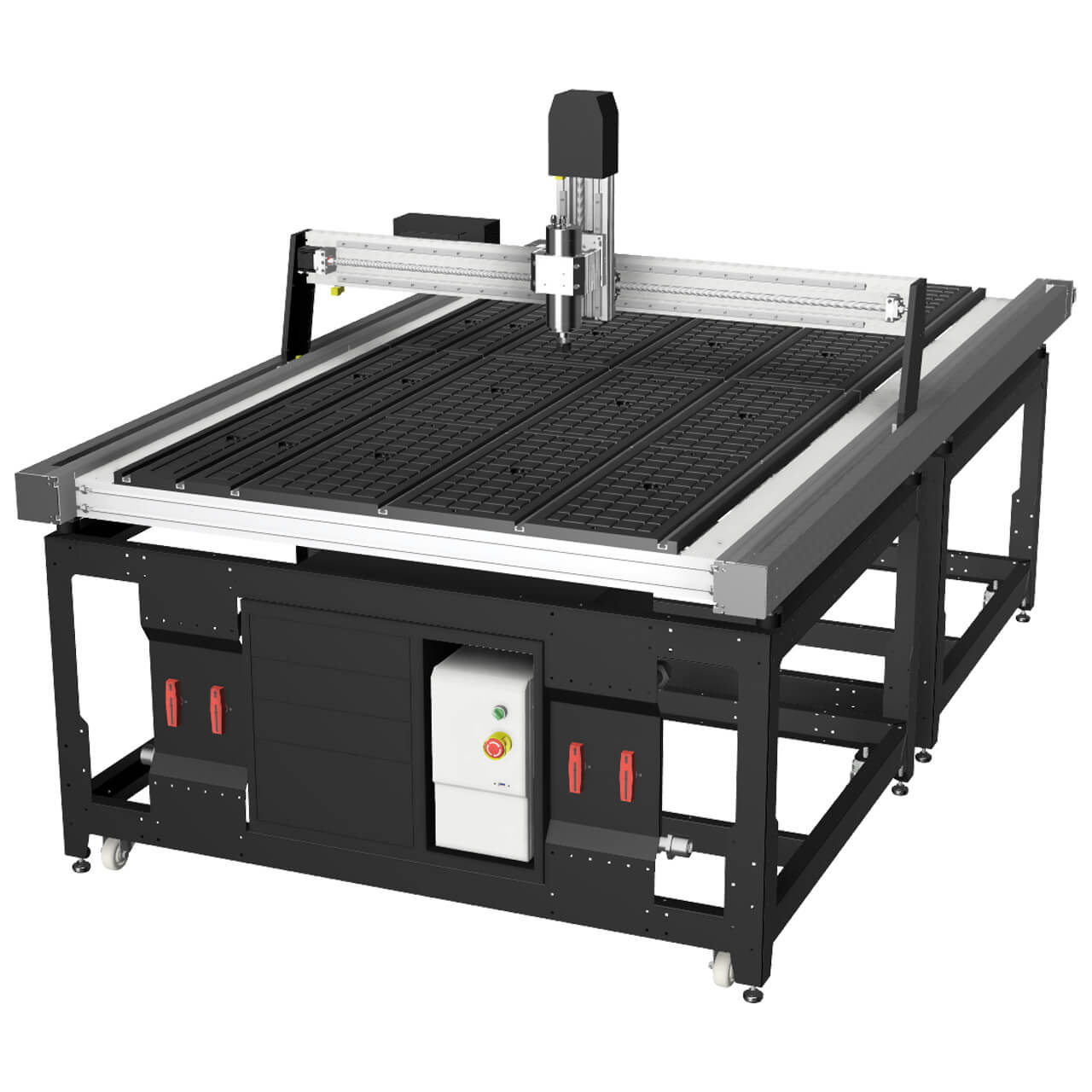

The PERFORMANCE 32 is a full-scale CNC built for serious production, featuring a 4′ × 8′ work area, a 3HP liquid-cooled spindle, and the iCNC 4-Axis controller with a 15.6″ touchscreen. Support for a 6-Position Auto Tool Changer and Bakelite vacuum table systems makes it a scalable platform for efficient, production-focused workflows.

SHIPPING BEGINS May 2026.

Need a formal quotation before purchasing?
Request A Quotation



220 Dust Shoe

Hold Down Clamps (Set of 2)

Amana Spektra 9 Piece Bit Set (1/4" Shank)

Lateral Clamp Kit

EMPOWER[ED] ACADEMY: CNC Certification + Lesson Guides

LED Kit

VCarve Pro

VCarve Pro CAD/CAM Design Software (digital version)



Aspire

Available on backorder

*Additional freight charges may apply for any orders shipped to remote areas.

Description

The PERFORMANCE 32 is designed for shops and institutions that need more capacity, more power, and more control without sacrificing reliability. With a full 4′ × 8′ cutting area, a 3HP (2.2kW) water-cooled spindle using ER20 collets, and a rigid steel frame, the PERFORMANCE 32 handles large sheet goods, batch production, and detailed machining with confidence.

At the core of the machine is the iCNC 4-Axis controller, featuring a 15.6″ industrial touchscreen and built-in wireless file transfer. This controller streamlines daily operation by eliminating USB drives and simplifying job management directly at the machine. Combined with smooth motion control and consistent repeatability, the PERFORMANCE 32 supports efficient multi-tool workflows and extended run times.

Built to grow with your operation, the PERFORMANCE 32 supports advanced options such as a 6-Position Auto Tool Changer and Bakelite vacuum table systems, making it well-suited for production environments, educational labs, and professional shops transitioning into higher throughput CNC work. Backed by SIMPLY’s long-term technical support and experience supporting thousands of CNC users, the PERFORMANCE 32 is a platform you can rely on well beyond installation.

Tech Specs

Category Specification
Work Area (X × Y) 48 in × 96 in (1210 mm × 2420 mm)
Z-Axis Travel 5.5 in (140 mm)
Max Gantry Clearance 6.25 in (160 mm)
Z Clearance from Spoilboard 5.3 in (135 mm)
Table Type Bakelite vacuum table
Spindle Type ER20 liquid-cooled
Spindle Power 2.2 kW (3 HP)
Spindle Speed 0 to 24,000 RPM
Included Collets 1/4 in, 3/8 in (6 mm and 12 mm optional)
Motors Leadshine stepper motors
Drive System Ball screws on X, Y, Z (16 mm)
Linear Motion Linear guideways on all axes
Positioning Accuracy ±0.00589 in (0.15 mm)
Rapid Traverse Speed 150 IPM (3.8 m/min)
Controller iCNC controller with 15.7″ touchscreen
Controller Features Wi-Fi remote access, Android app, multilingual UI
Recommended Software VCarve Pro, Aspire, Cabinet Parts Pro (not included)
Automatic Tool Setter Included
Auto Tool Changer Included
Rotary 4th Axis Optional
Spindle Cooling Liquid-cooled
Stand Included
Power Requirement 220V, single phase, 50–60 Hz, 10A
Machine Size (with stand) 109.2 in × 63 in × 62.6 in (2775 × 1600 × 1590 mm)
Shipping Size 116.5 in × 65.35 in × 48 in (2845 × 1660 × 533 mm)
Machine Weight 309.7 lb (140.5 kg)
