PERFORMANCE 8 Education Package

SKU: PERF8EDU

From: $19,999.00CAD

The PERFORMANCE 8 Education Package brings industrial-grade capability to the classroom in a compact footprint. Built with the same components trusted by manufacturers, this machine delivers accuracy, reliability, and durability for serious education programs. With EMPOWER[ED] ACADEMY,teachers receive the training and curriculum support they need to confidently teach CAD/CAM/CNC and prepare students for industry careers.

Included in Package:

  • PEFORMANCE 8 Stand
  • PERFORMANCE Toolbox
  • Lateral Clamp Kit
  • VCarve Pro software with 40-seat site license
  • EMPOWER[ED] ACADEMY teacher training and classroom curriculum

Optional Add-Ons:

  • Polycarbonate Safety Enclosure
  • Auto Tool Changer
  • On-Site Setup
  • On-Site Training

SHIPPING BEGINS IN OCTOBER

Need a formal quotation before purchasing?
Request A Quotation



Polycarbonate Enclosure for 2' x 4'

PERFORMANCE 8 Auto Tool Changer

ON-SITE SETUP

ON-SITE TRAINING

*Additional freight charges may apply for any orders shipped to remote areas.

Description

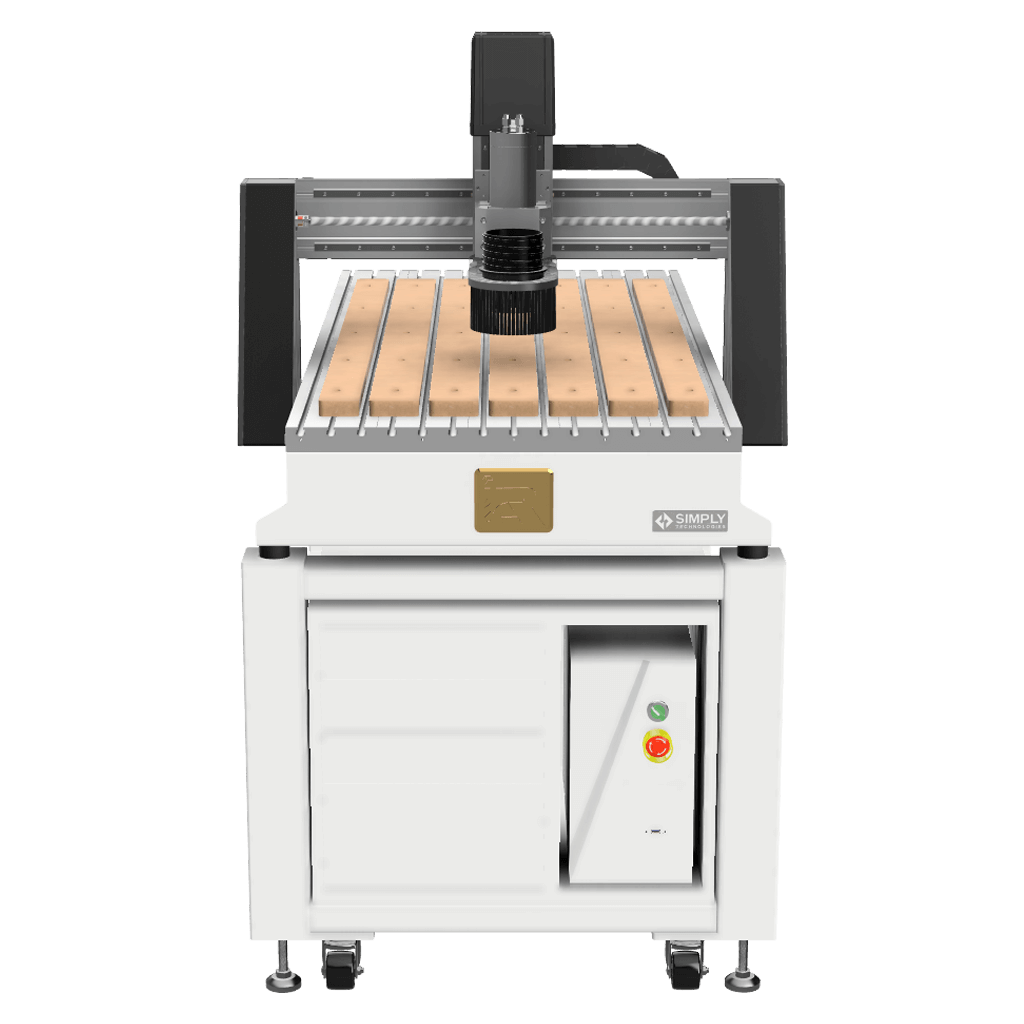

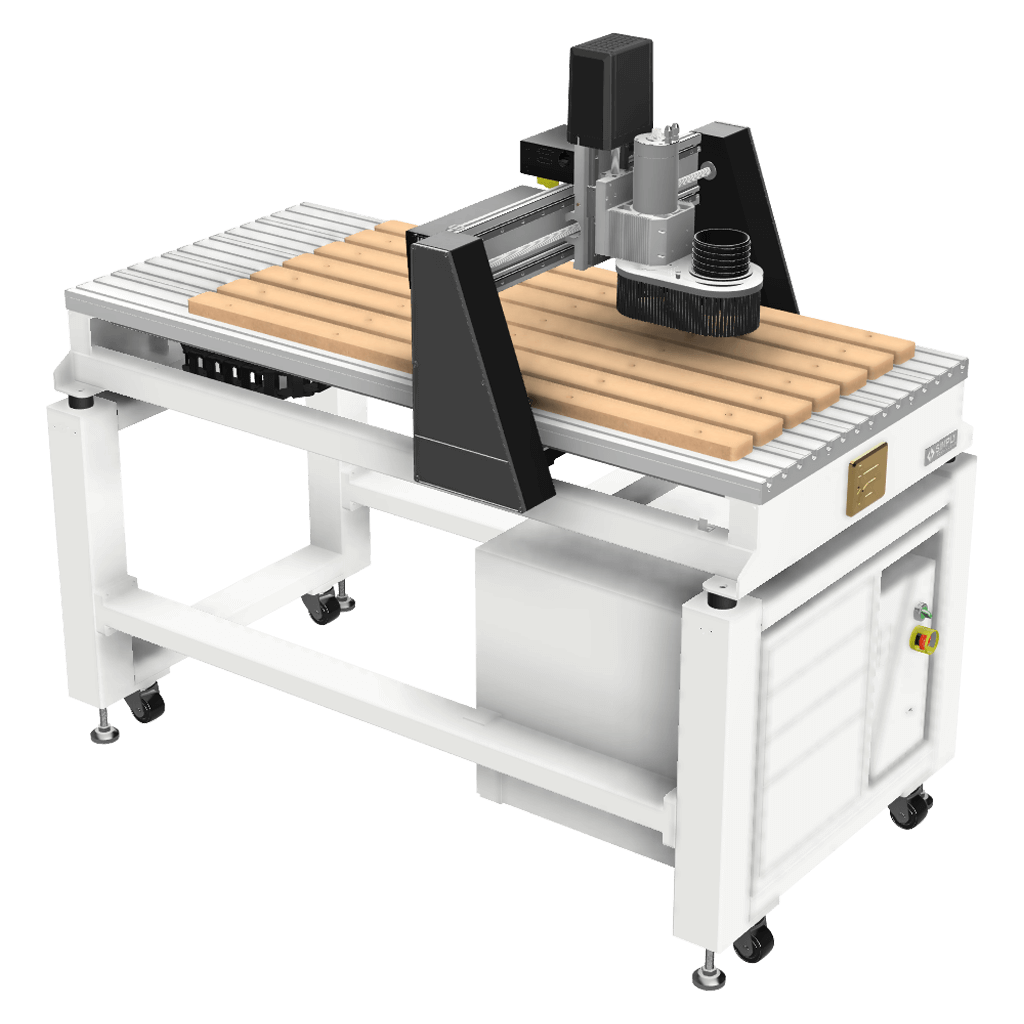

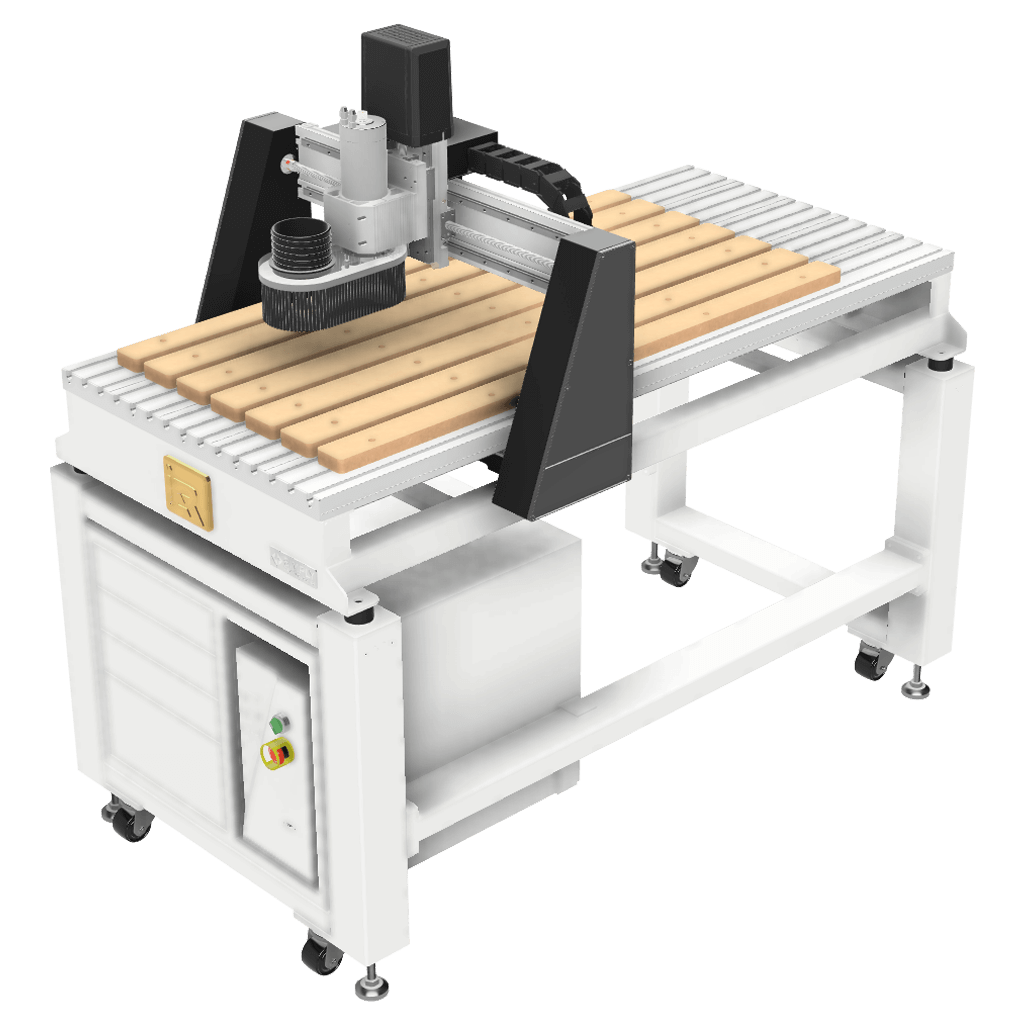

The PERFORMANCE 8 EDU Package brings industrial-grade CNC capability into the classroom, combining a rigid steel frame, a 3HP liquid-cooled spindle, and the iCNC touchscreen controller to deliver reliable, repeatable results for technical education programs. Designed for labs that teach CAD, CAM, and CNC fundamentals, the PERFORMANCE 8 gives students the accuracy and stability they need to move from basic projects to real-world machining.

Each EDU package includes full access to EMPOWER[ED] Academy, a site license of Vectric software, and a two-year warranty, providing schools with a complete, ready-to-teach CNC platform from day one. Backed by SIMPLY’s lifetime technical support for both hardware and software, the PERFORMANCE 8 EDU Package gives educators a dependable system they can rely on for years of instruction and program growth. Available with optional safety enclosure.

PERFORMANCE OWNER’S MANUAL

Tech Specs

Performance Series
Performance Series Specifications
Specification Performance 8 Performance 16
X Axis Travel 24″ (610mm) 48″ (1220mm)
Y Axis Travel 47.63″ (1210mm) 48″ (1220mm)
Z Axis Travel 5.9″ (150mm) 5.9″ (150mm)
Table Work Area 24″ x 48″ 48″ x 48″
Spindle Type 3HP Water Cooled 3HP Water Cooled
Spindle Configuration ER20 (1/4″ & 1/2″) ER20 (1/4″ & 1/2″)
Controller iCNC iCNC
On-Board Memory Yes Yes
Rapid Feed Rate 300ipm (5m/min) 300ipm (5m/min)
Tool Touch-Off Included Included
Onboard Cooling Included Included
Machine Base Welded Steel Welded Steel
Rotary Axis Yes Yes
Resolution ± 0.00393″ (0.10mm) +/- .000197″ (0.05mm)
Precision Linear Guides X / Y / Z X / Y / Z
Precision Ball Screw Transmission X / Y / Z X / Y / Z
Power Requirements 220V, 50-60Hz, 10A, 1-Phase 220V, 50-60Hz, 10A, 1-Phase
Working Table High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion
Gantry Bridge High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion
Gantry Supports Aluminum Alloy Gravity Cast Aluminum Alloy Gravity Cast
Max Gantry Clearance 6.5″ (165.1mm) 6.5″ (165.1mm)
Clearance Above Spoil Board 5.5″ (139.7mm) 5.5″ (139.7mm)
Machine Dimensions 62.99″ L x 37.36″ W x 30.27″ H
Shipping Dimensions
Machine Weight
Shipping Weight
