Description
Features

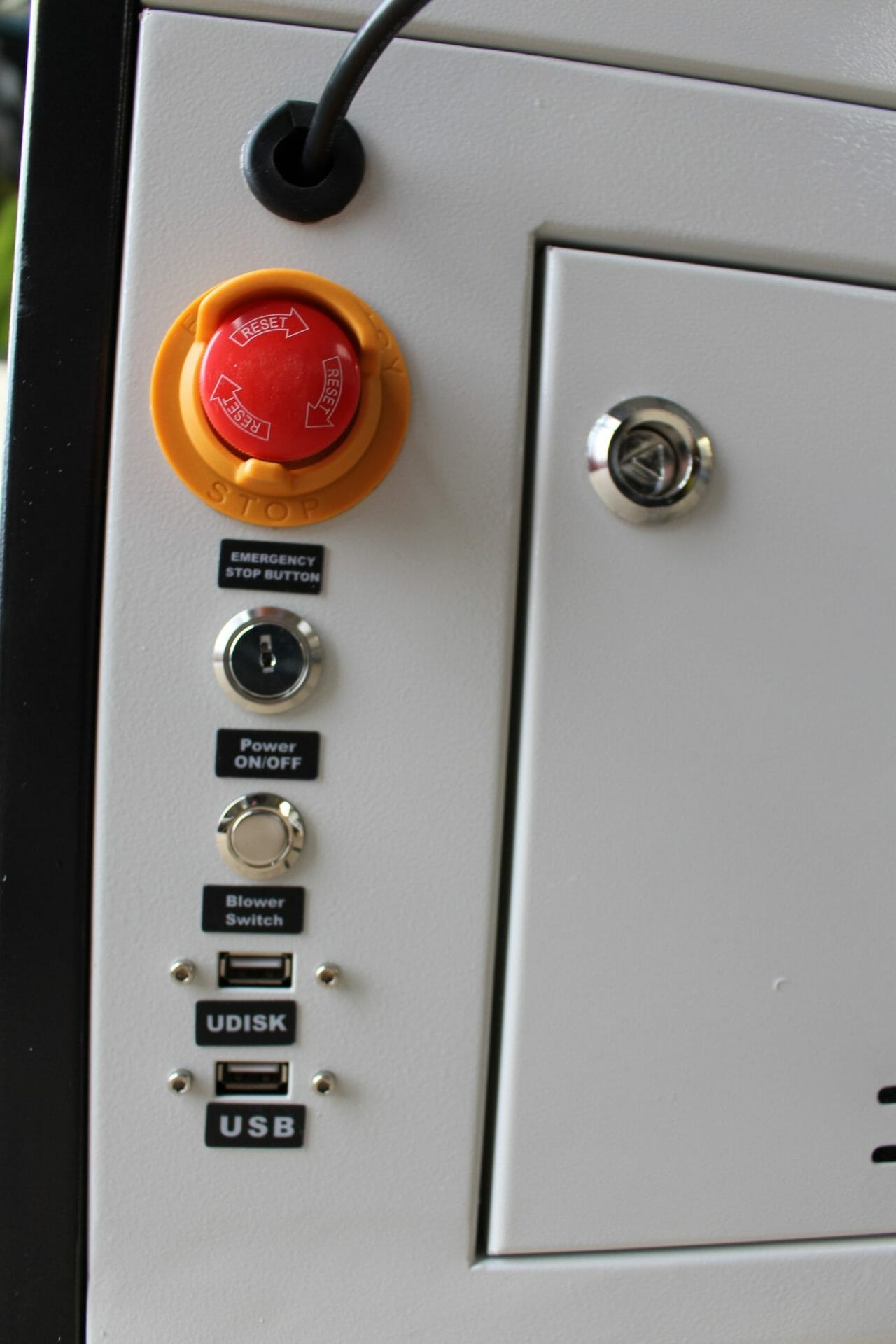

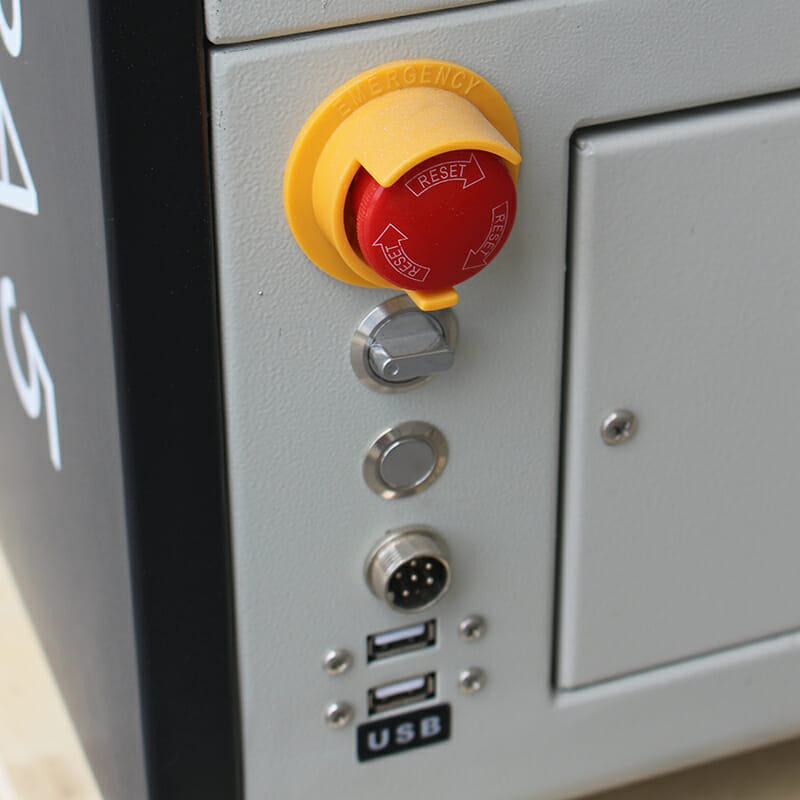

The latest Mira 7 and Mira 9 professional benchtop CO2 lasers include the safety of a fully interlocked case and keyed ignition, thus transforming the Mira into a Class 1 laser, the highest safety rating possible. The new design preserves the best features from the previous generation, such as the Clean Pack Design and cutting edge high speeds, while adding some finishing touches, like a fire resistant tempered glass lid, gas shocks and rubber seals.

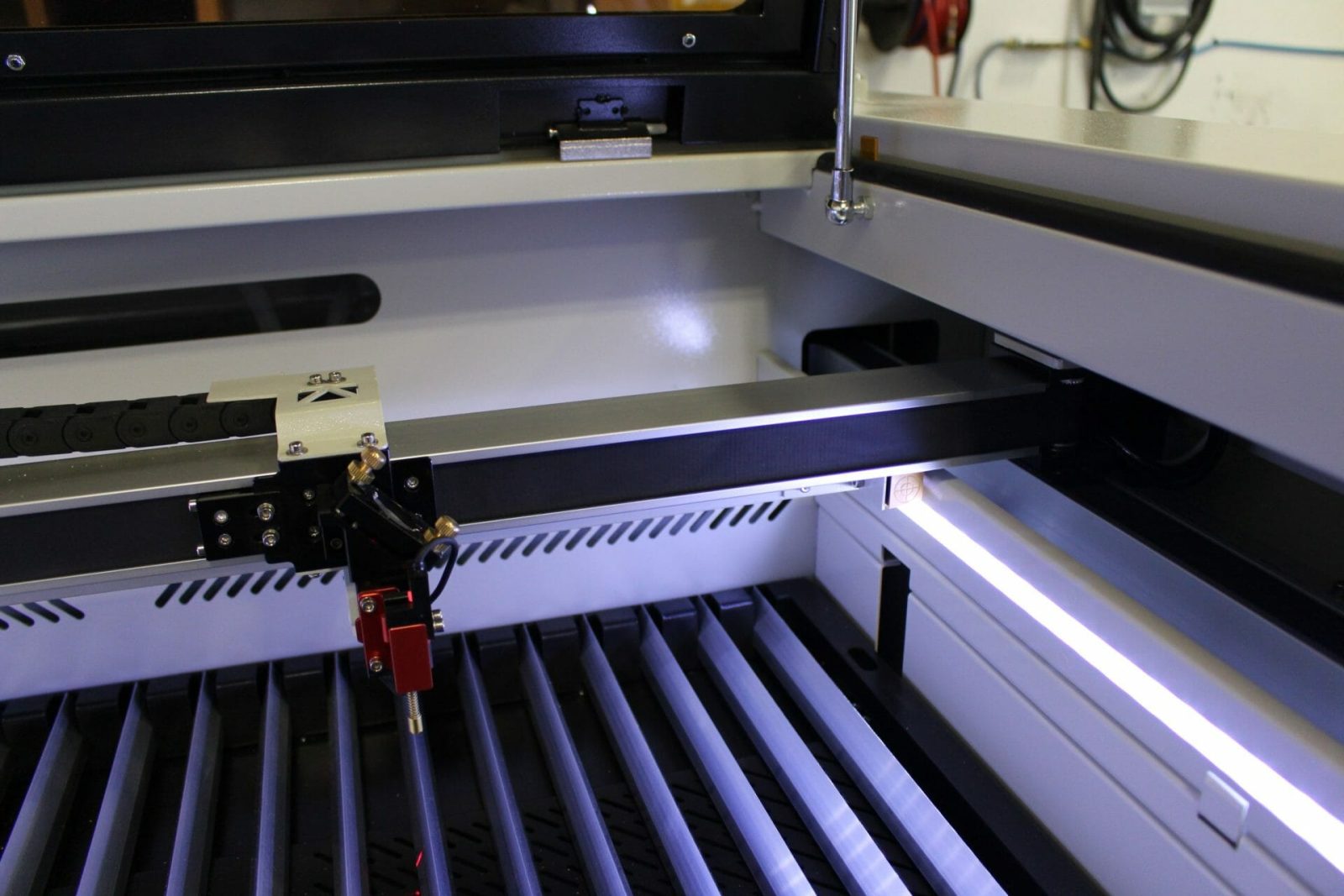

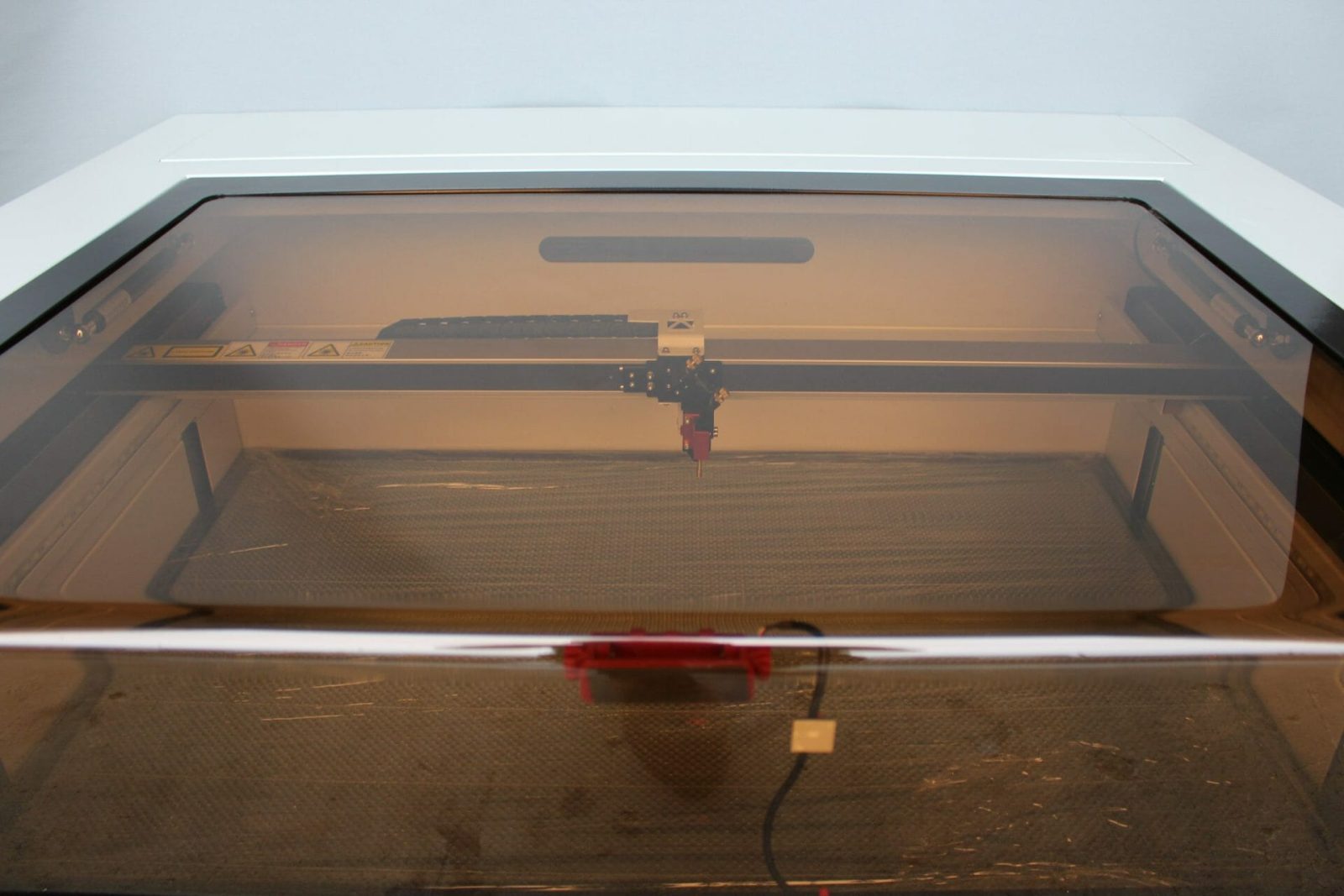

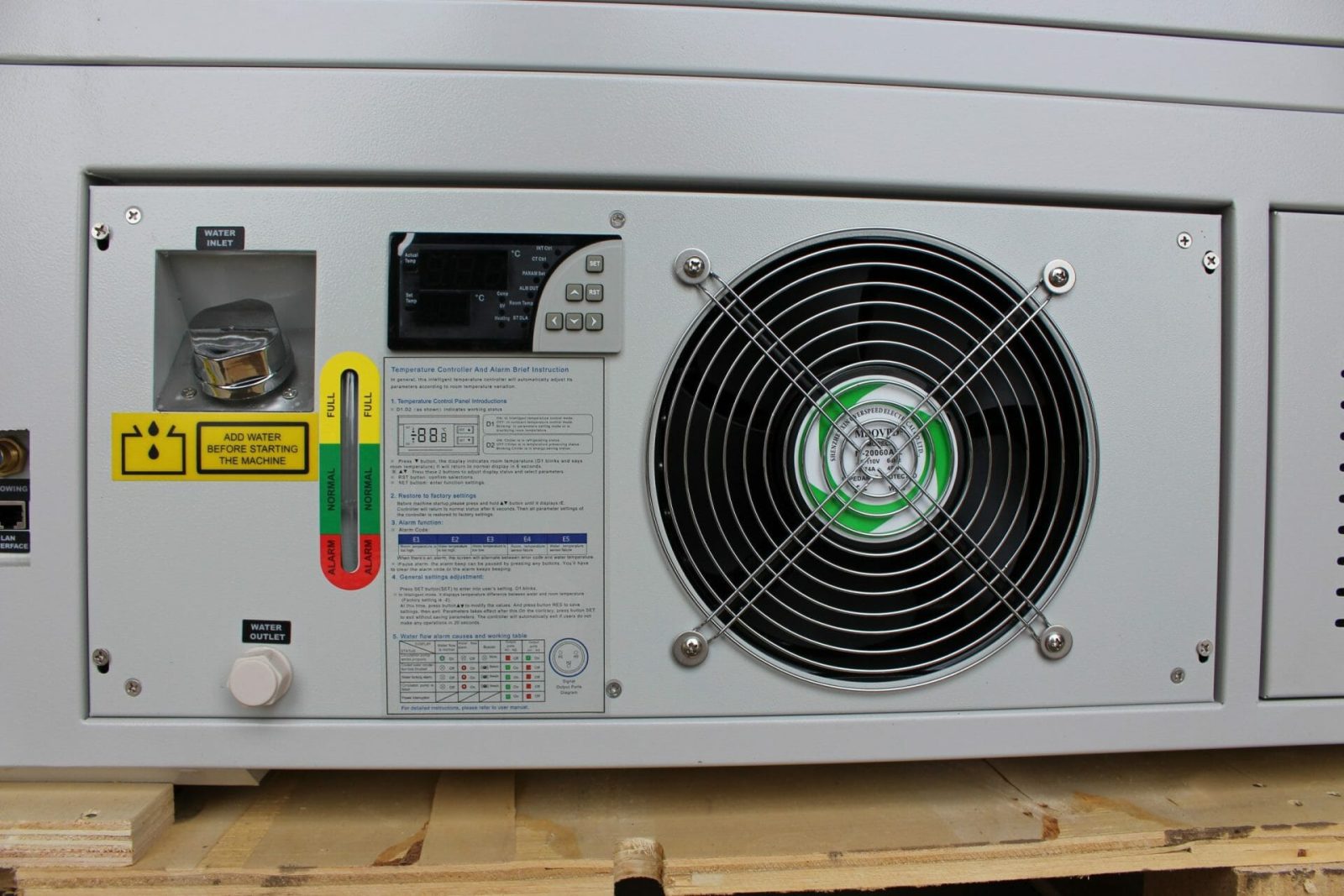

Great emphasis was placed on improving the cutting capabilities and the various components required to do so. The entire work table has been overhauled and replaced with a motorized blade table that is fitted with a downdraft exhaust system similar to what you would find in our Nova Pro Series. The exhaust fan and air assist pump have also been upgraded to help with improving airflow and increasing cutting efficiency. Equipped with a built-in fan cooled water chiller (Mira 7) or a vapor compression water chiller (Mira 9), the Mira Pro models are ready to take your laser engraving and cutting abilities to the next level.
Benefits
90% Less Space Needed
Thanks to an all-in-one design which eliminates the need for an ancillary water cooling system, exhaust fan and air assist pump, the Mira series occupies a much smaller footprint, making it ideal for installations in confined quarters.
30% Increase in Efficiency
High-speed linear rails help to harness the full cutting potential that comes with having a larger laser tube; while traversing when the laser is off can reach speeds of up to 1500 mm/sec, resulting in a significant reduction in cycle times.
80% Reduction in Maintenance
Utilizing the drive belts to protect the linear rails and bearing blocks helps to eliminate 99% of the accumulation of dust and debris, practically eliminating any need for maintenance and frequent cleaning that is typically required to maintain steady operation.
Clean Pack Design
Our unique linear motion design utilizes the drive belts themselves to enclose the linear rails and bearing blocks so that they are protected from smoke and debris and can continue to operate without frequent maintenance or repairs.
Fastest in its Class

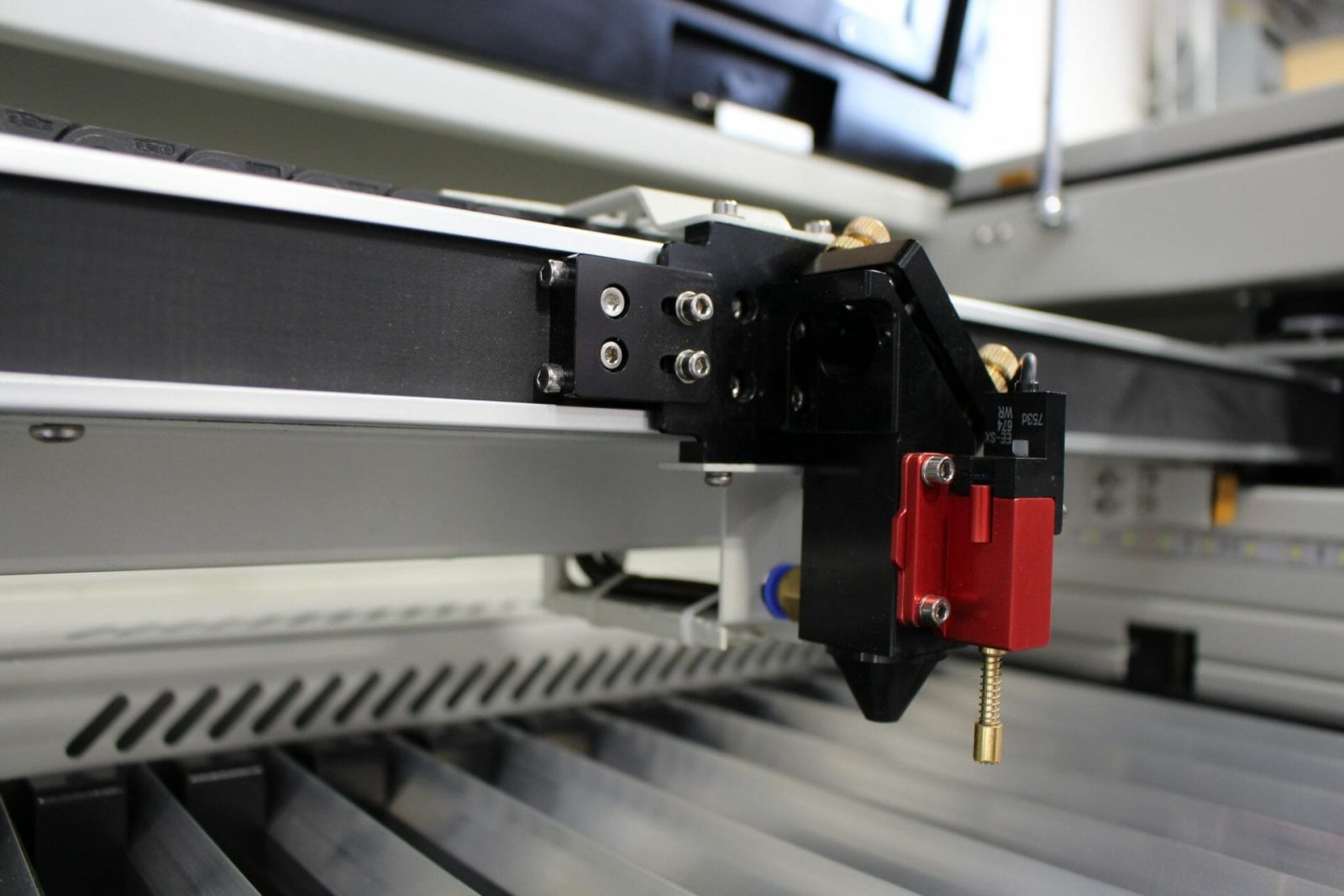

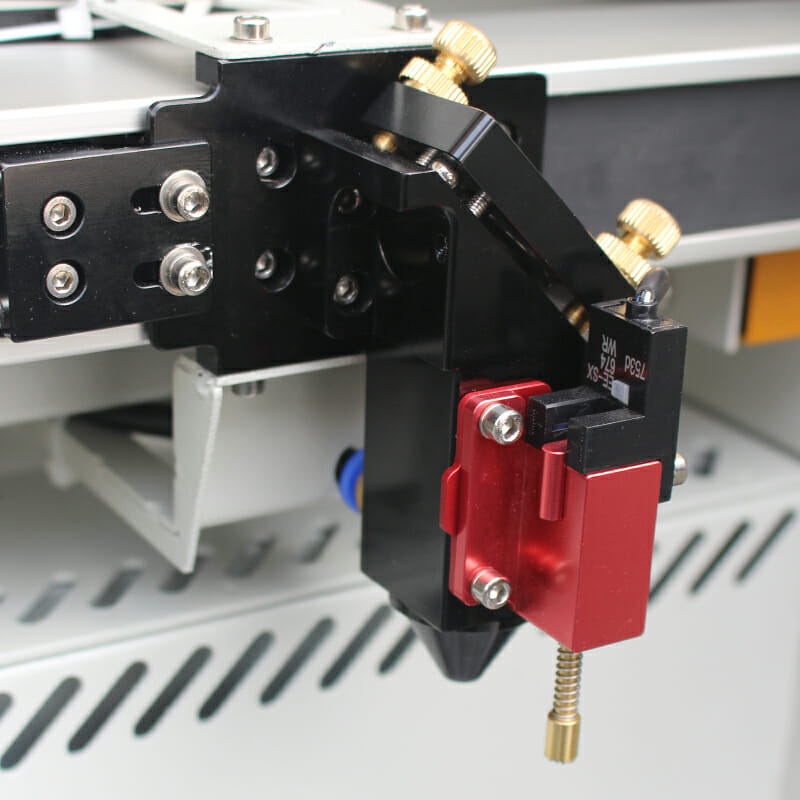

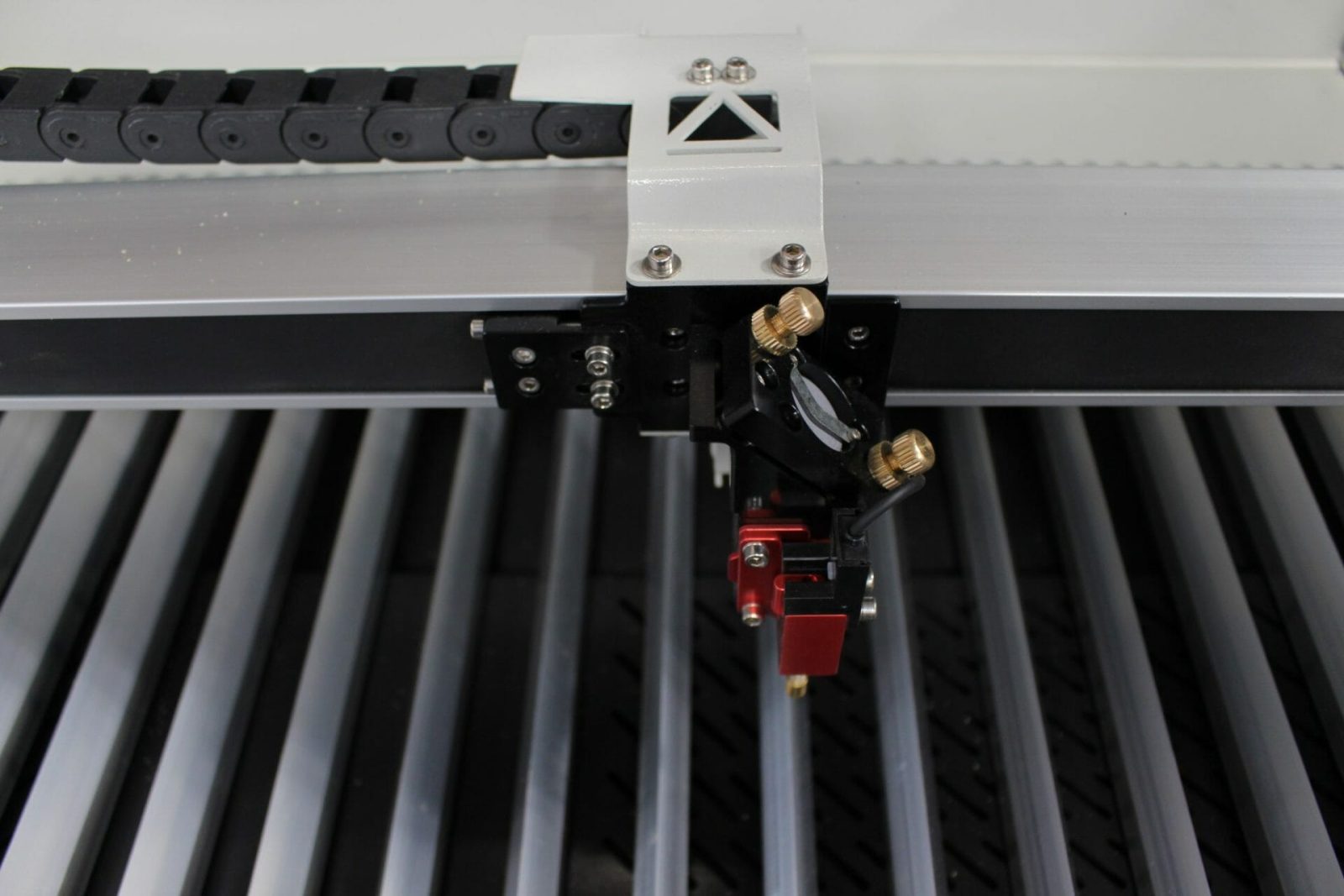

Thanks to Aeon’s featherweight laser head design and high speed digital stepper motors, the Mira can achieve 5G of acceleration resulting in scan speeds of up to 1200 mm/sec and cutting speeds of up to 680 mm/sec.
All-In-One System
If space is of concern, you’ll be pleased to know that Aeon is the first in the laser industry to offer an all-in-one solution comprised of an integrated water cooling system, exhaust fan and air assist pump so that no extra space is needed for ancillary components.

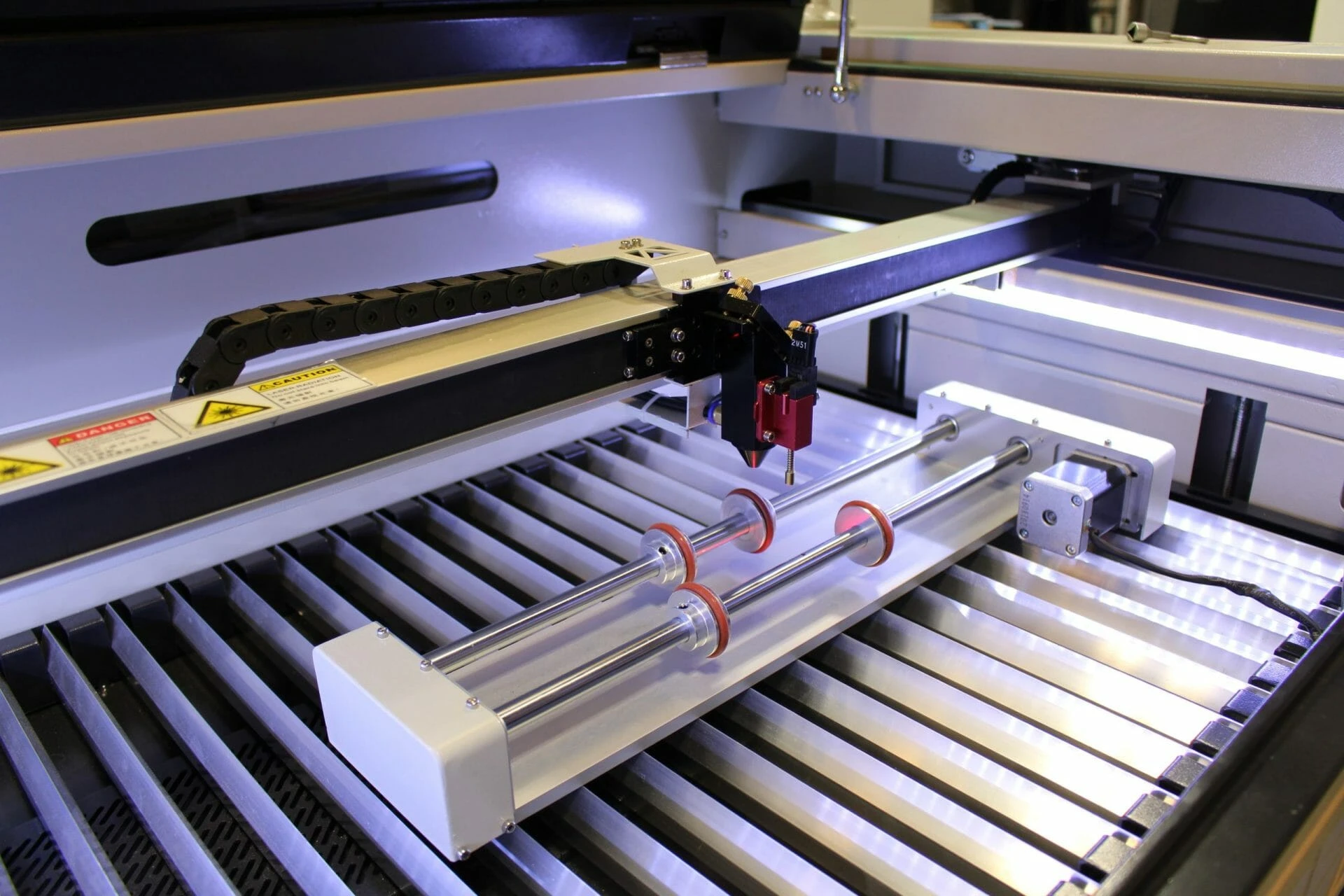

Smart Rotary Device

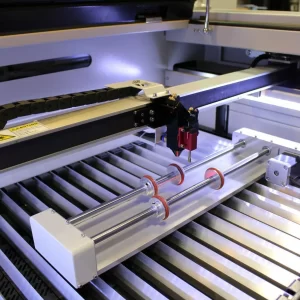

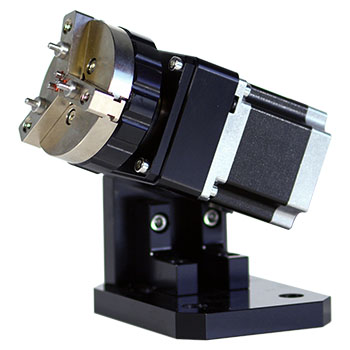

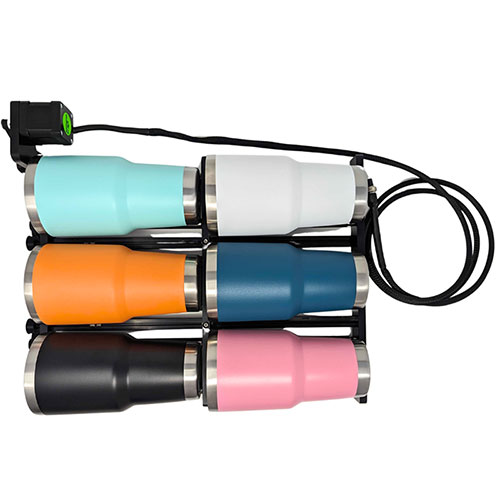

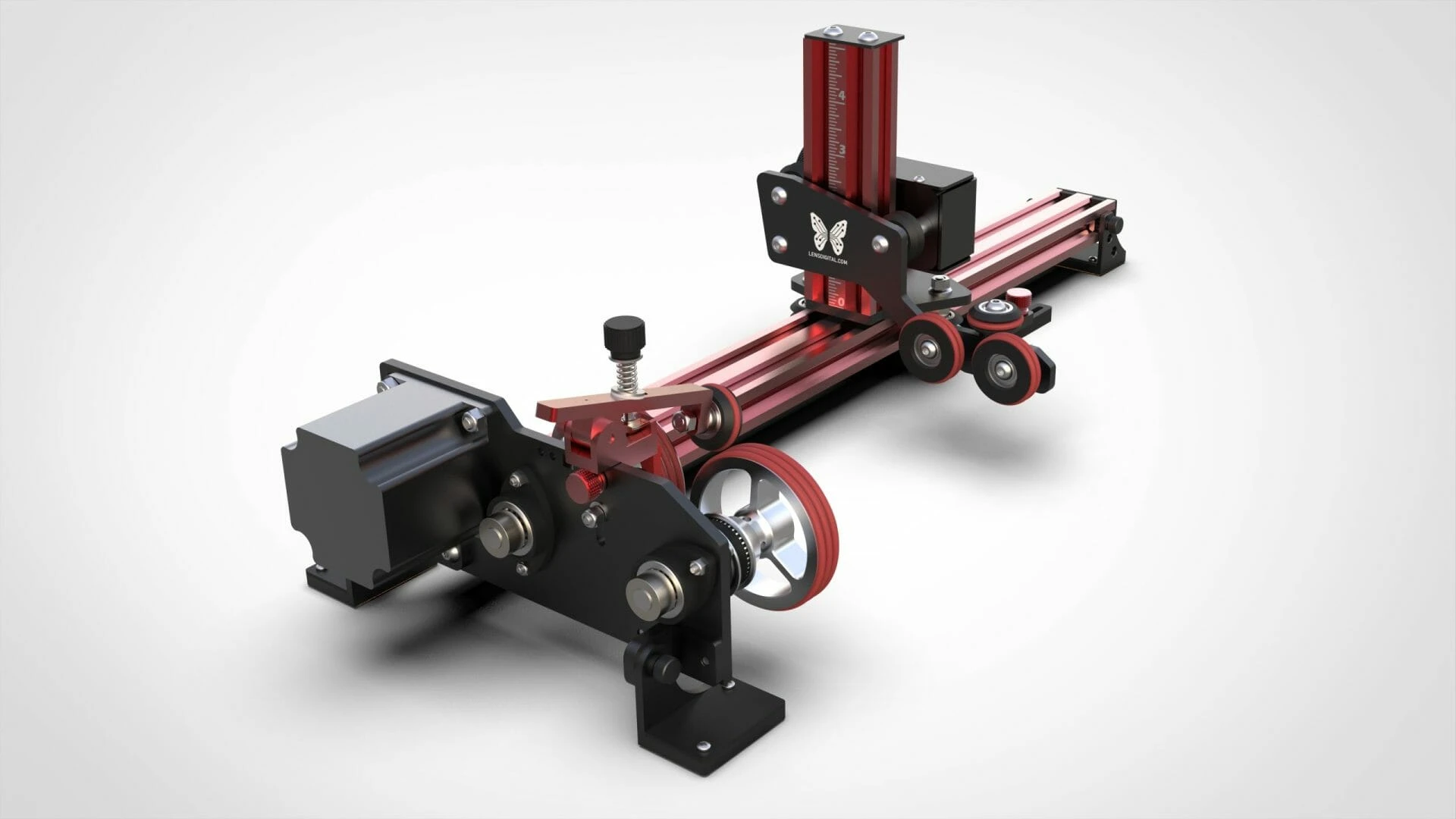

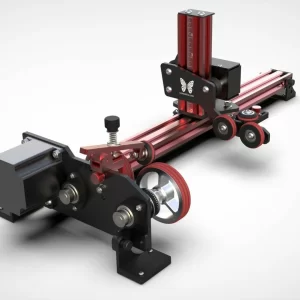

Engrave cylindrical items with either a rotary chuck or a roller rotary and enjoy a painless transition between flat engraving and rotary engraving, thanks to an auto sensing rotary port.
Multiple Interfaces

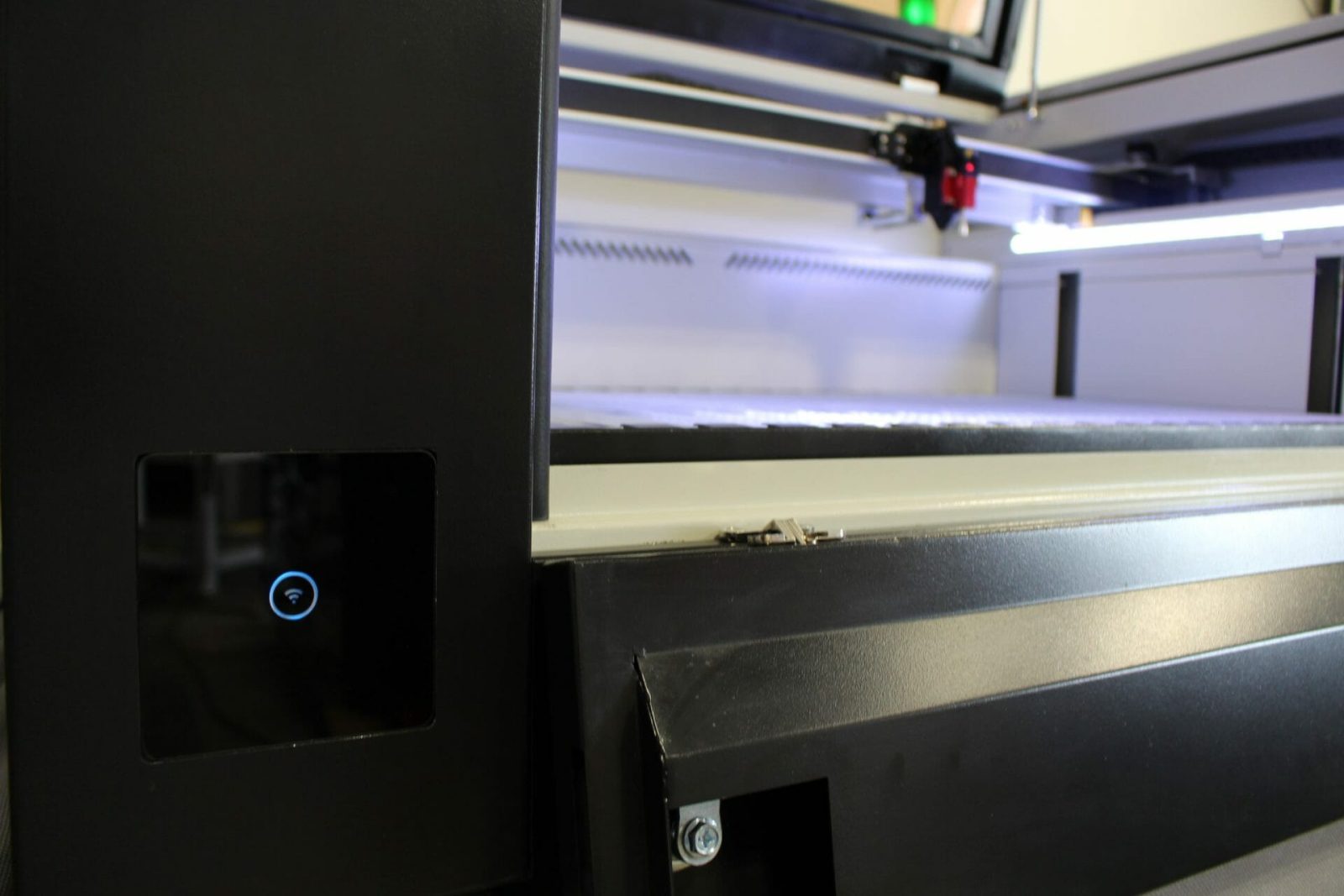

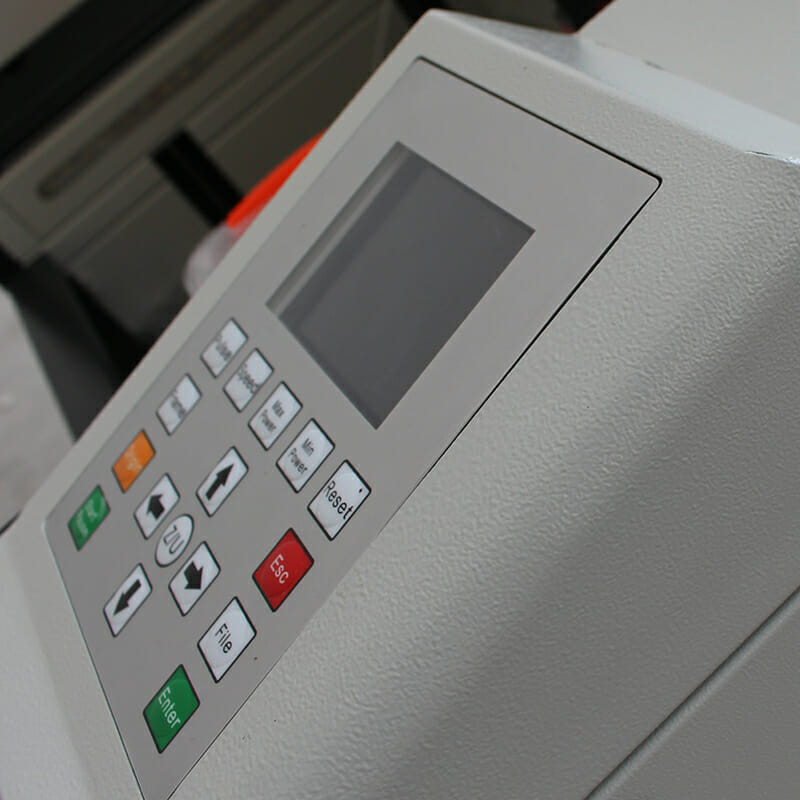

Easily send jobs from your PC or Mac via USB, Ethernet or WiFi. There is even 256 MB of onboard memory built right into the controller for storing popular jobs, or you can even run programs straight from a USB Flash Drive.
Software
Quickly recall or layout simple designs with the included RDWorks software or upgrade to LightBurn for an enhanced user experience. For those already familiar with graphic design, simply import graphics directly from CorelDraw, AutoCAD and Illustrator via the handy plugins.
Red Dot Pointer

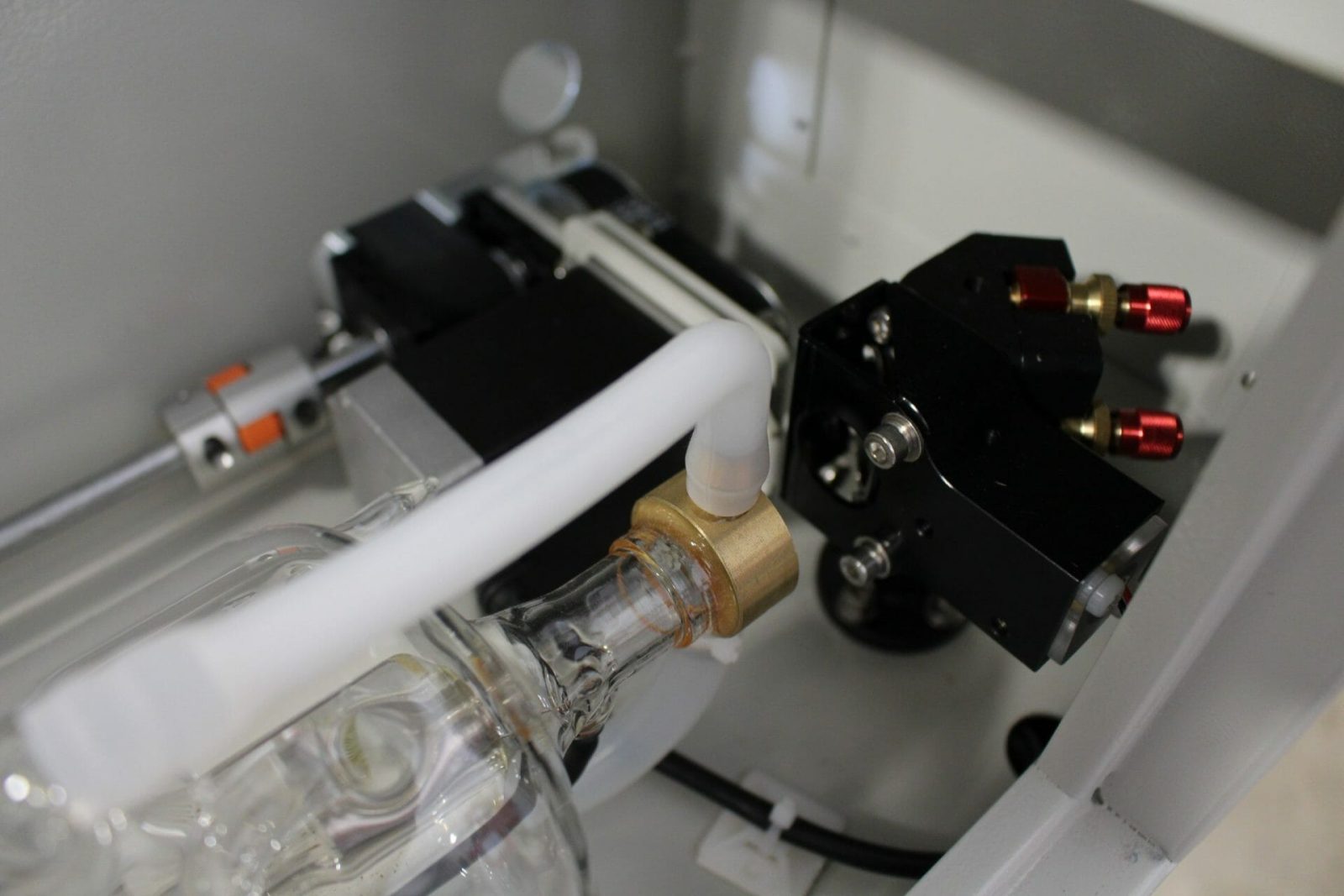

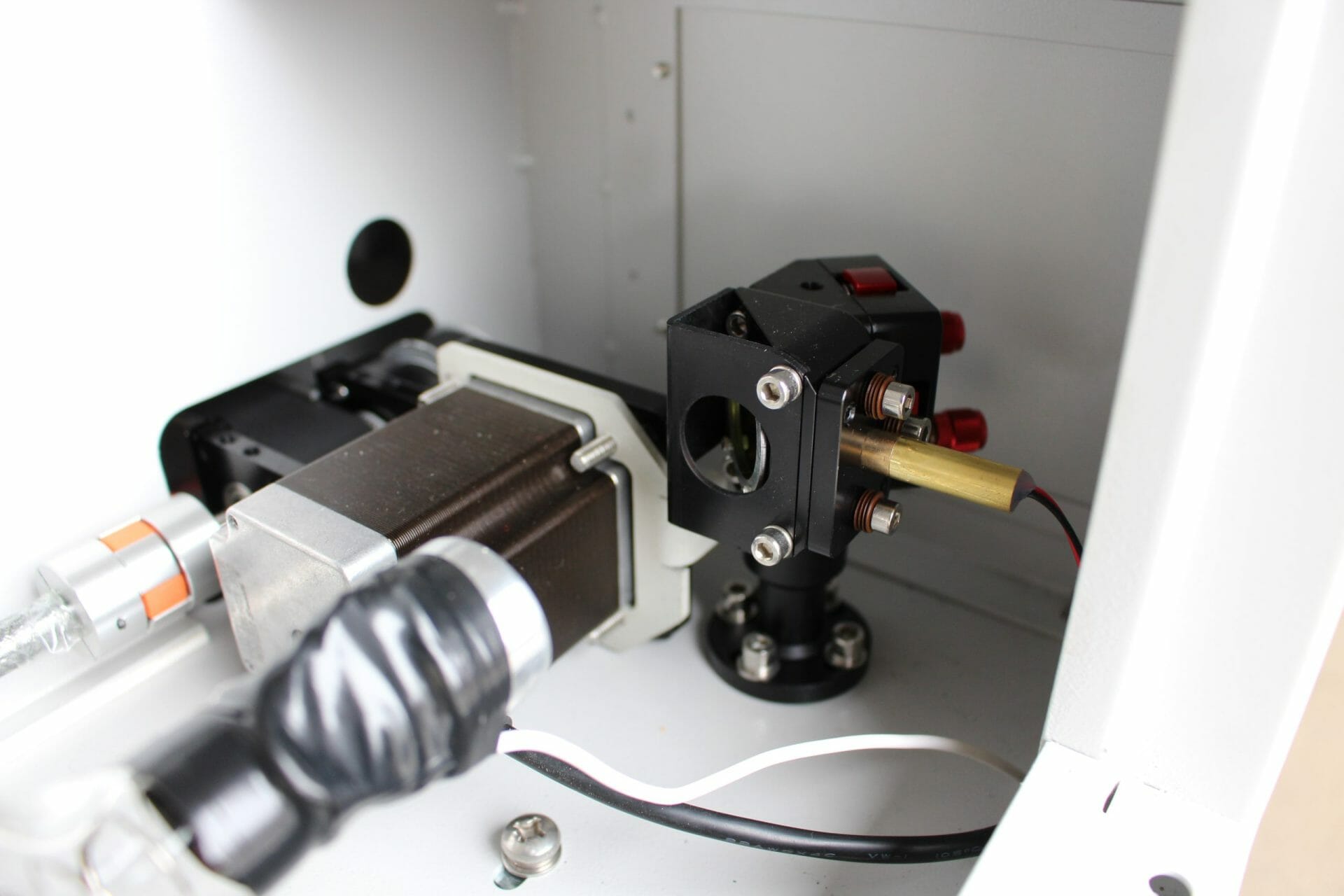

Mirror alignment has never been easier thanks to an inline beam combiner that also serves as an accurate red dot pointer. This visual aid eliminates any guesswork by allowing you to place items inside the machine and quickly position them for accuracy.
The Mira 9 is a Class 4 Laser

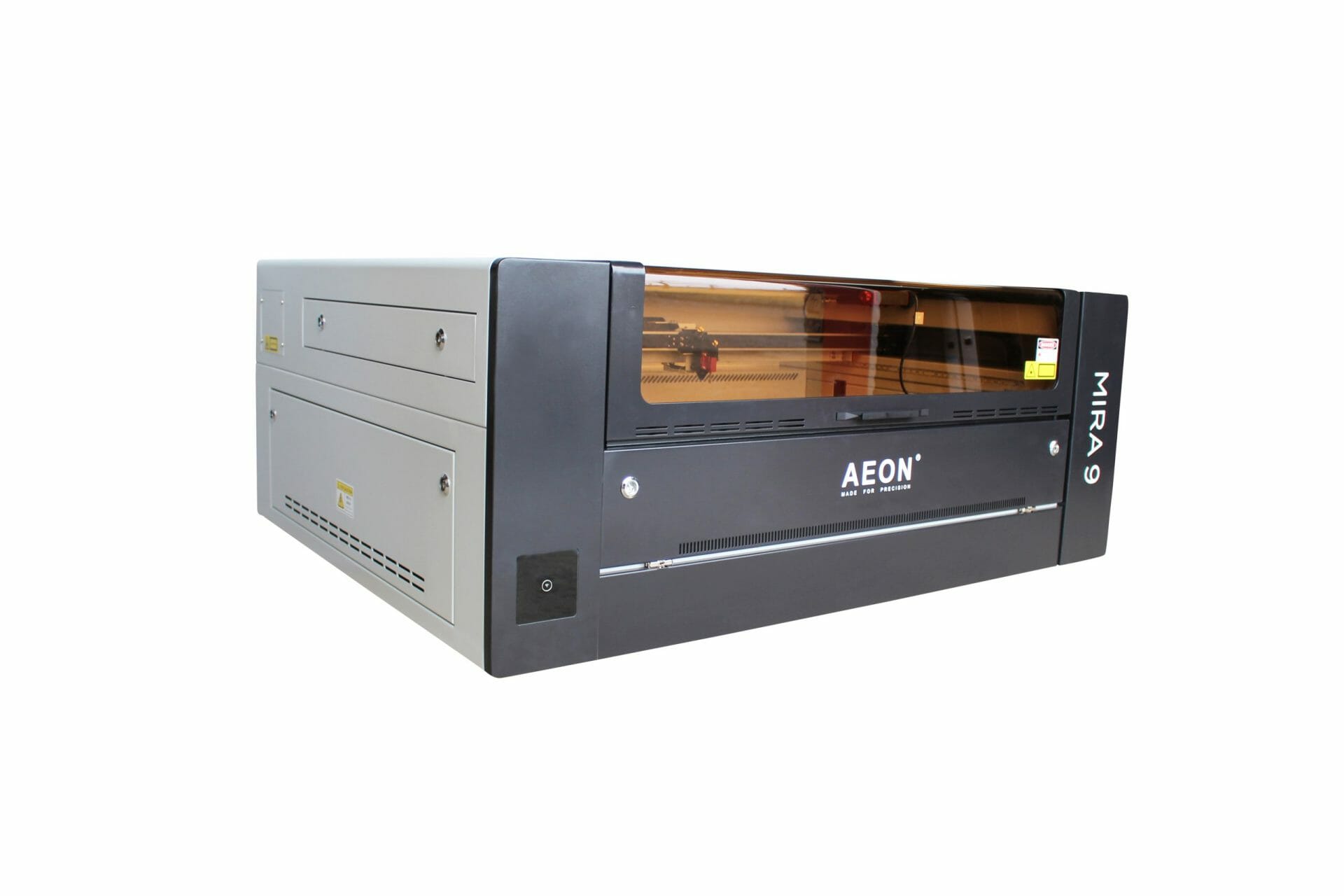

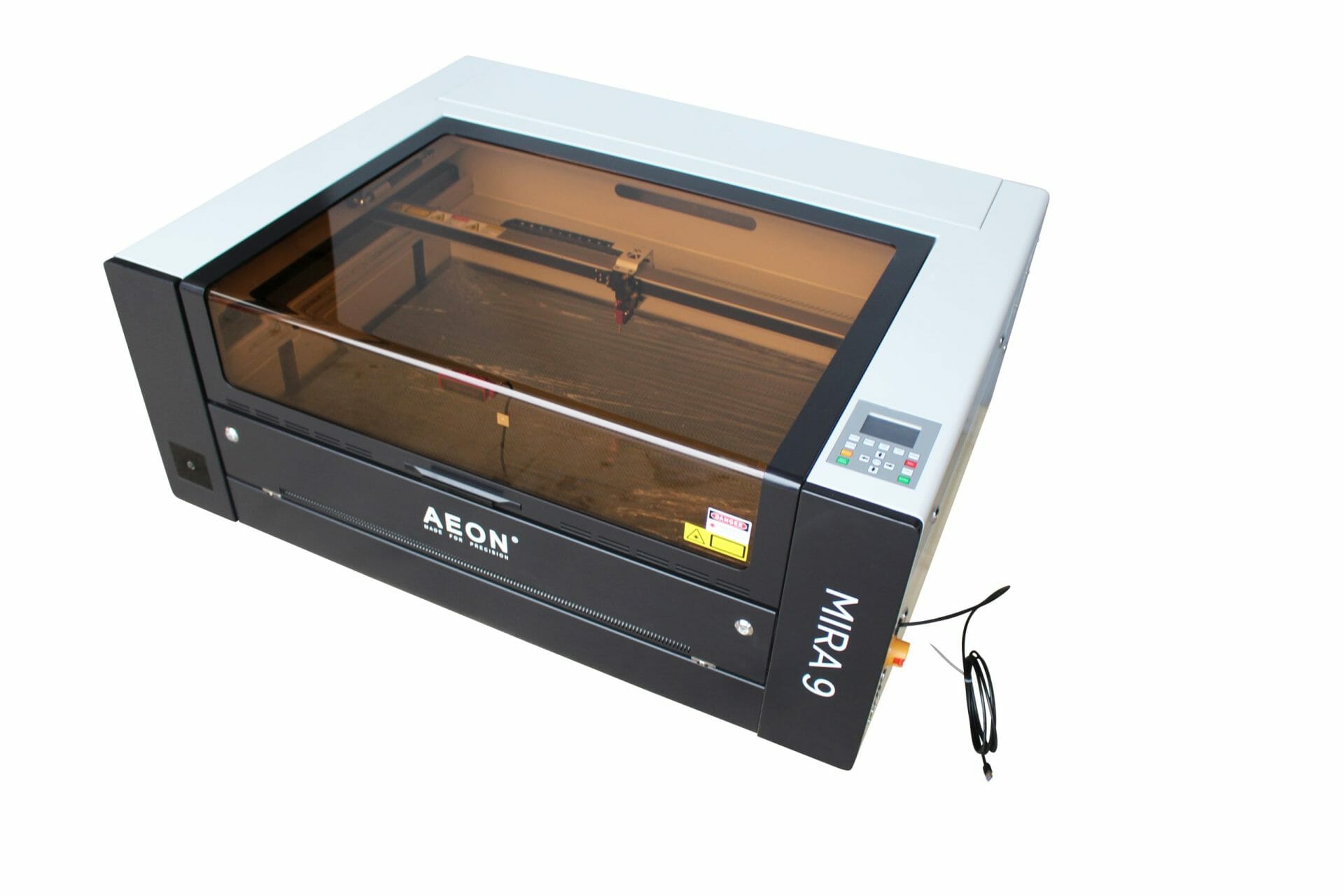

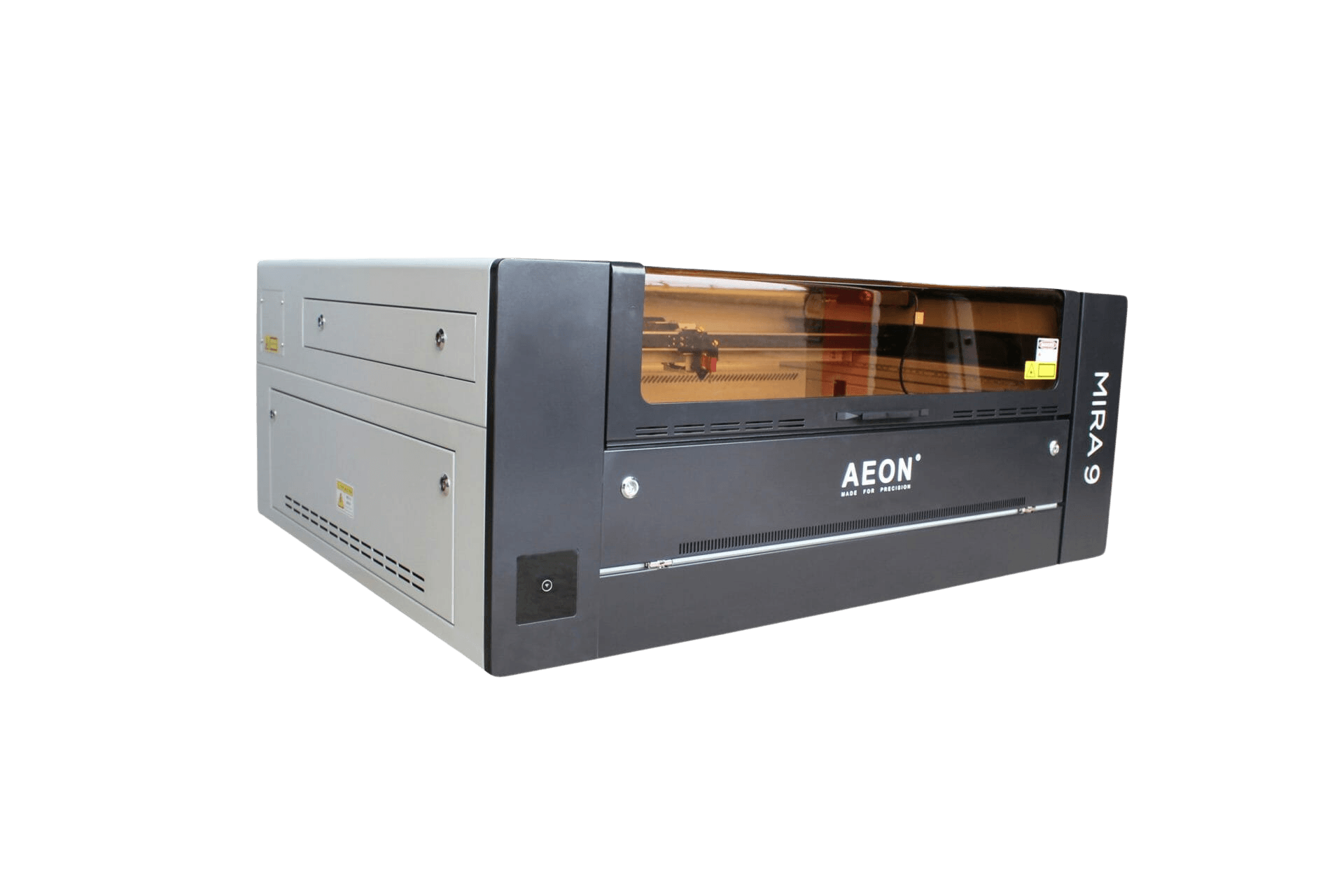

AEON Mira 9 Specs
- Work Area: 600mm x 900mm (60 x 90 cm)
- Machine Footprint: Approximately 1,100mm x 1,150mm

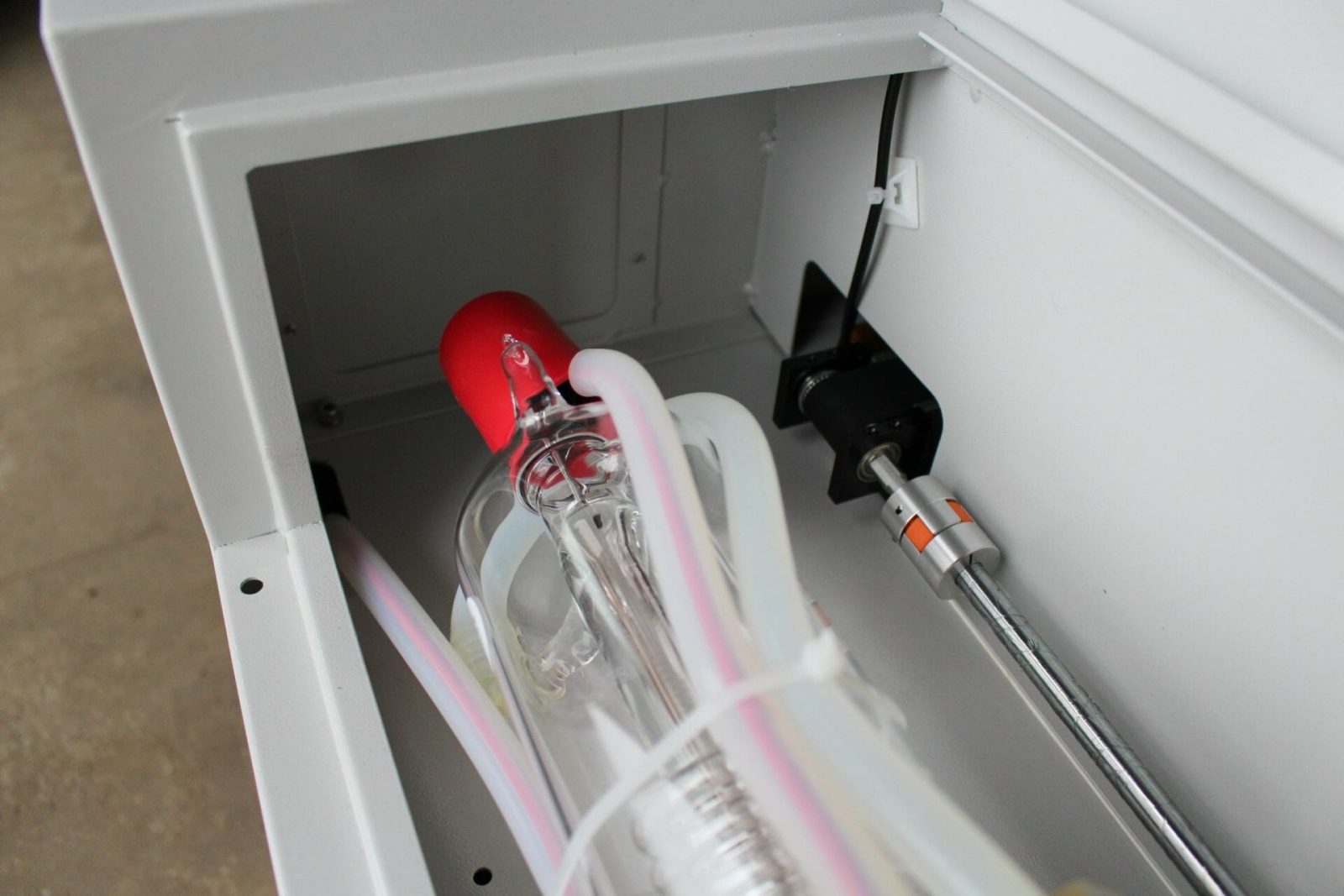

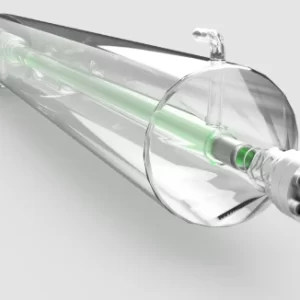

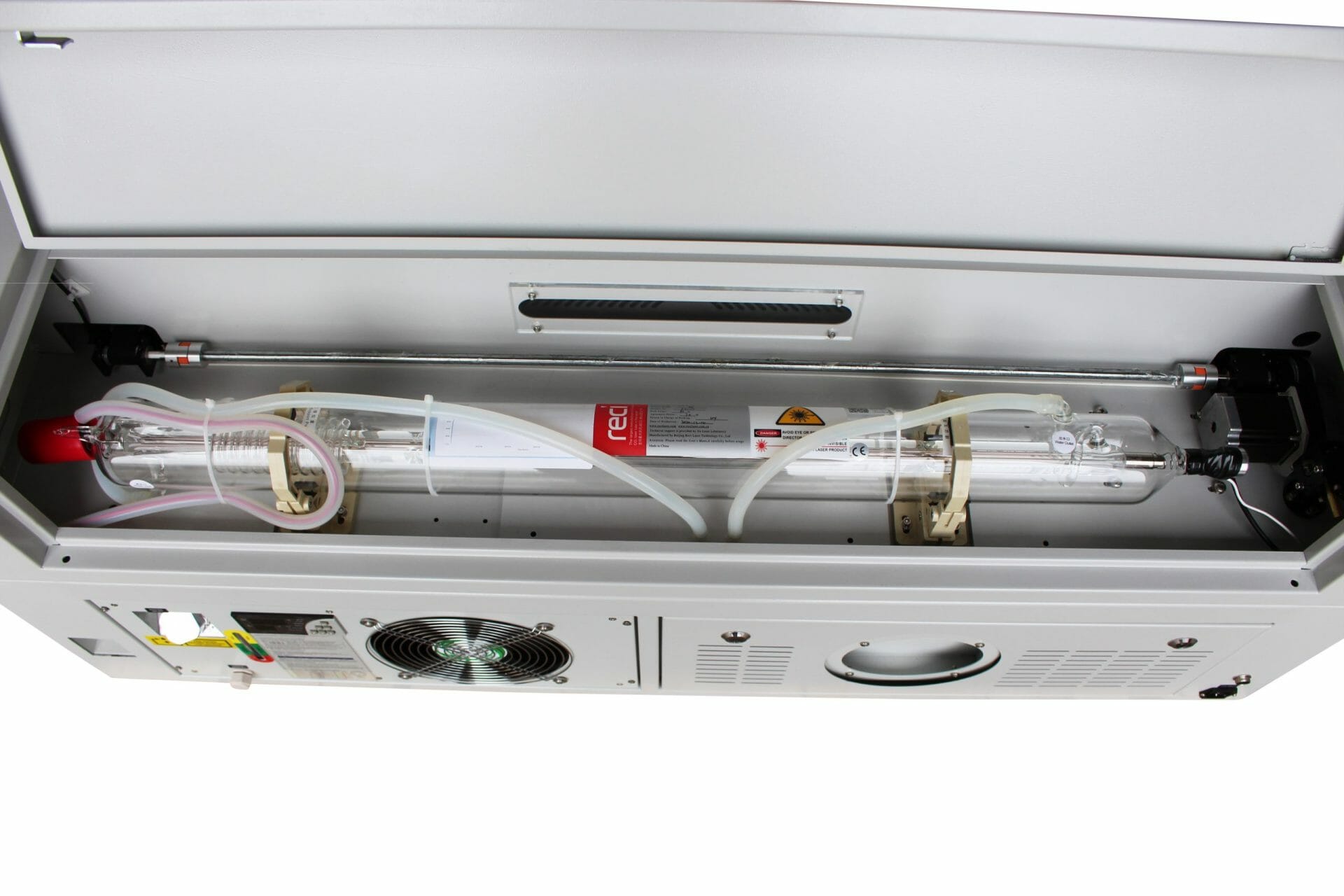

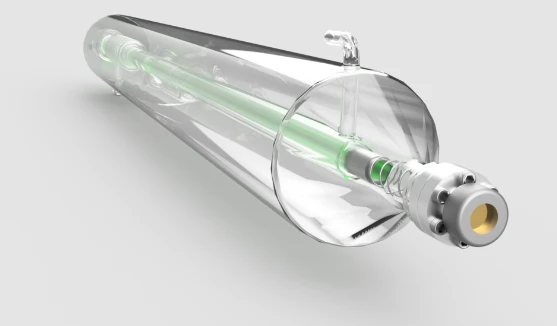

- Laser Power Options: 80W, 100W CO2 glass tube (RF upgrade available on Redline models)
- Controller: RD Works compatible (Ruida)
- Compatible Software: LightBurn, RD Works, LaserCAD
- Cooling: Water cooling required (radiator water chiller recommended)
- Connectivity: USB, Ethernet
- Compatible Materials: Wood, acrylic, leather, fabric, paper, cardboard, glass (engraving), rubber, foam, MDF, coated metals (engraving only)
What’s the Difference Between the Mira 9 and Mira 9S Redline?
The standard Mira 9 uses a traditional CO2 glass laser tube. The Mira 9S Redline upgrades to a higher-speed motion system and improved hardware package, designed for shops that push the machine hard or need faster cycle times.
If you’re cutting and engraving daily for production, ask us about the Redline. If you’re a shop, school, or maker doing mixed work, the standard Mira 9 is likely all you need.
Is the Mira 9 Right for Your Shop?
The Mira 9 is the right machine if you’re doing any of the following:
- Cutting and engraving wood, MDF, acrylic, or leather in a small-to-medium shop
- Running a signage, gifts, or personalization business
- Adding laser capability to a woodworking or maker studio
- Running a school makerspace or technical education program
- Looking to upgrade from a desktop diode laser to a full CO2 machine
If you’re cutting full 4×8 sheets of material, look at our AEON Atlas 4×8 flatbed instead. If your budget is tighter and your work area needs are smaller, the AEON Mira 7 (50x70cm) is worth considering.
Buy the AEON Mira 9 in Canada
Simply Technologies is one of the few authorized AEON dealers in Canada. Buying locally means:
- Canadian pricing (ask us — we don’t post pricing online to avoid confusion with exchange rates)
- Local setup support in Ontario, with remote support across Canada
- Access to EMPOWER[ED] ACADEMY training so you’re actually running the machine, not just owning it
- Warranty support without shipping to the US
We don’t just sell the machine and disappear. If you need a radiator water chiller, an exhaust system, LightBurn software, or a spoilboard setup, we handle the whole package.
AEON Mira 9 FAQ
What is the bed size of the AEON Mira 9?
The Mira 9 has a 600mm x 900mm (approximately 24″ x 36″) work area. It is AEON’s most popular mid-size CO2 laser.
How much does the AEON Mira 9 cost in Canada?
Pricing varies with power configuration and options. Contact Simply Technologies for current Canadian pricing. We price in CAD and include shipping to Ontario; ask about other provinces.
What is the difference between the Mira 9 and the Mira 9S Redline?
The Mira 9S Redline features upgraded motion hardware and higher-speed performance. The standard Mira 9 is the workhorse choice; the Redline is for production-focused buyers.
Does the Mira 9 work with LightBurn?
Yes. The Mira 9 is fully LightBurn compatible. LightBurn is what most of our customers use. We can walk you through the setup.
What materials can the Mira 9 cut and engrave?
Wood, MDF, acrylic, leather, fabric, rubber, foam, paper, cardboard, coated/anodized metals (engraving only), and glass (engraving only). It cannot cut metal.
Do I need a water chiller for the Mira 9?
Yes. The glass tube CO2 laser requires water cooling. Simply Technologies carries radiator water chillers as an add-on — we recommend purchasing one with the machine.
Ready for a step up in power and production volume? Explore the AEON Nova series — professional 100W CO2 lasers for shops that have outgrown the Mira range.
