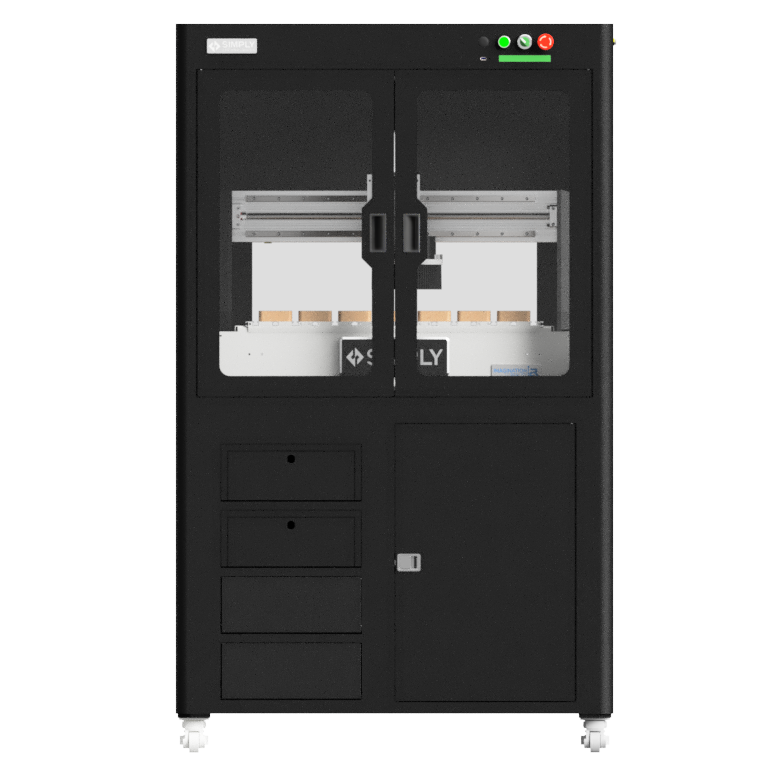

ACADEMY 2 (12" x 24")

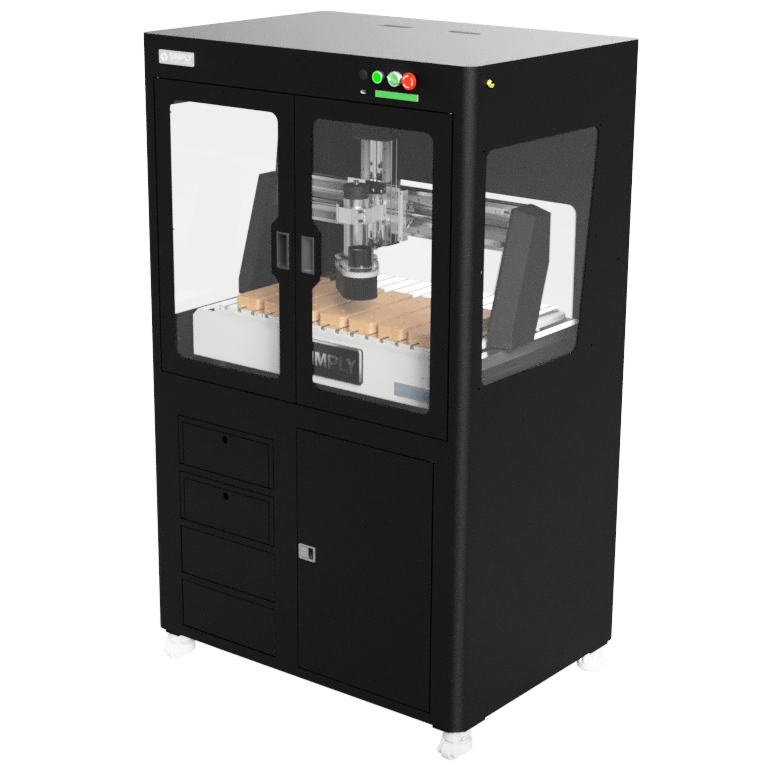

ACADEMY 2 (12" x 24") - Image 2

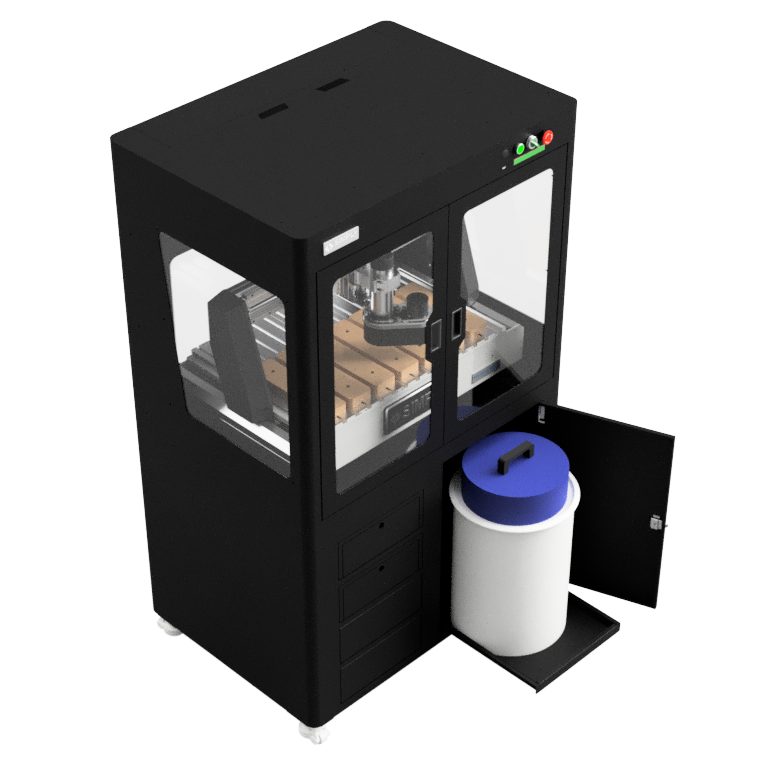

ACADEMY 2 (12" x 24") - Image 3

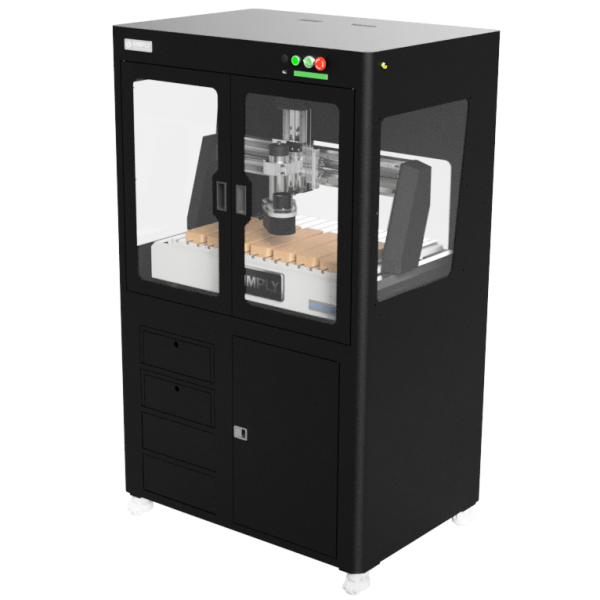

ACADEMY 2 (12" x 24") - Image 4

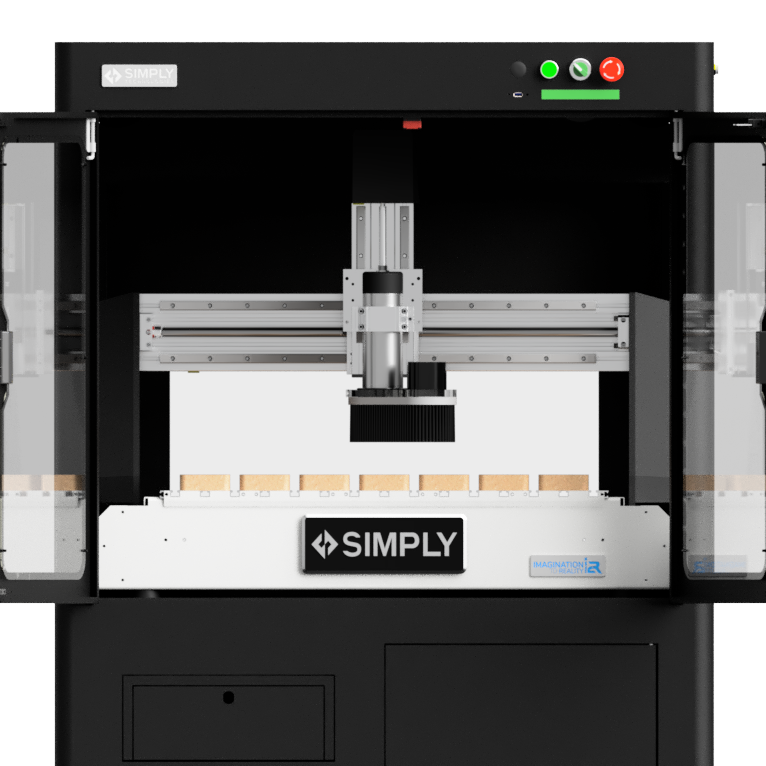

ACADEMY 2 (12" x 24") - Image 5

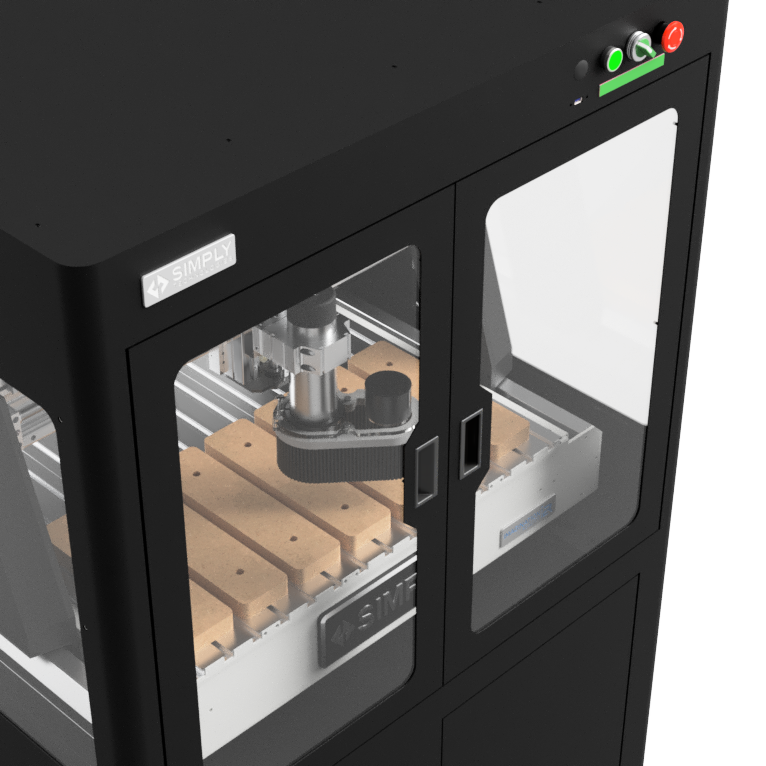

ACADEMY 2 (12" x 24") - Image 6

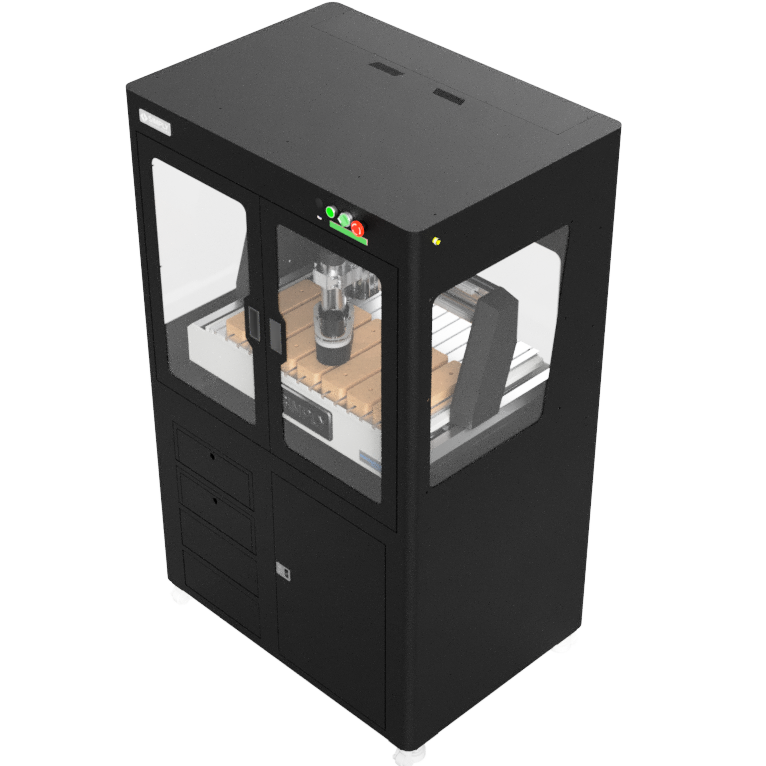

ACADEMY 2 (12" x 24") - Image 7

ACADEMY 2 (12″ x 24″)

SKU: ACADEMY2

From: $11,999.00CAD

The Academy 2 is a true plug-and-play CNC solution designed for safety and mobility with a full enclosure and integrated dust collection. It features a 12” x 24” cutting area, a 1HP spindle, delivering clean, quiet performance for your workspace.

SHIPPING BEGINS SEPTEMBER 2025.

Need a formal quotation before purchasing?
Request A Quotation



Choose Academy Model:

Simply - Hold Down Clamps (pair)

Simply - Vacuum Hold-Down Kit (5 pods)

Simply Series Bit Set (9pc) w/ Spektra Coating by Amana Tool

Lateral Clamp Kit

16 Module CAD + CNC Video Training Series

Bundled product placeholder image

CNC Maintenance Kit

10W Laser Accessory

ER11 Collet Set

VCarve Desktop

Aspire

*Additional freight charges may apply for any orders shipped to remote areas.

Description

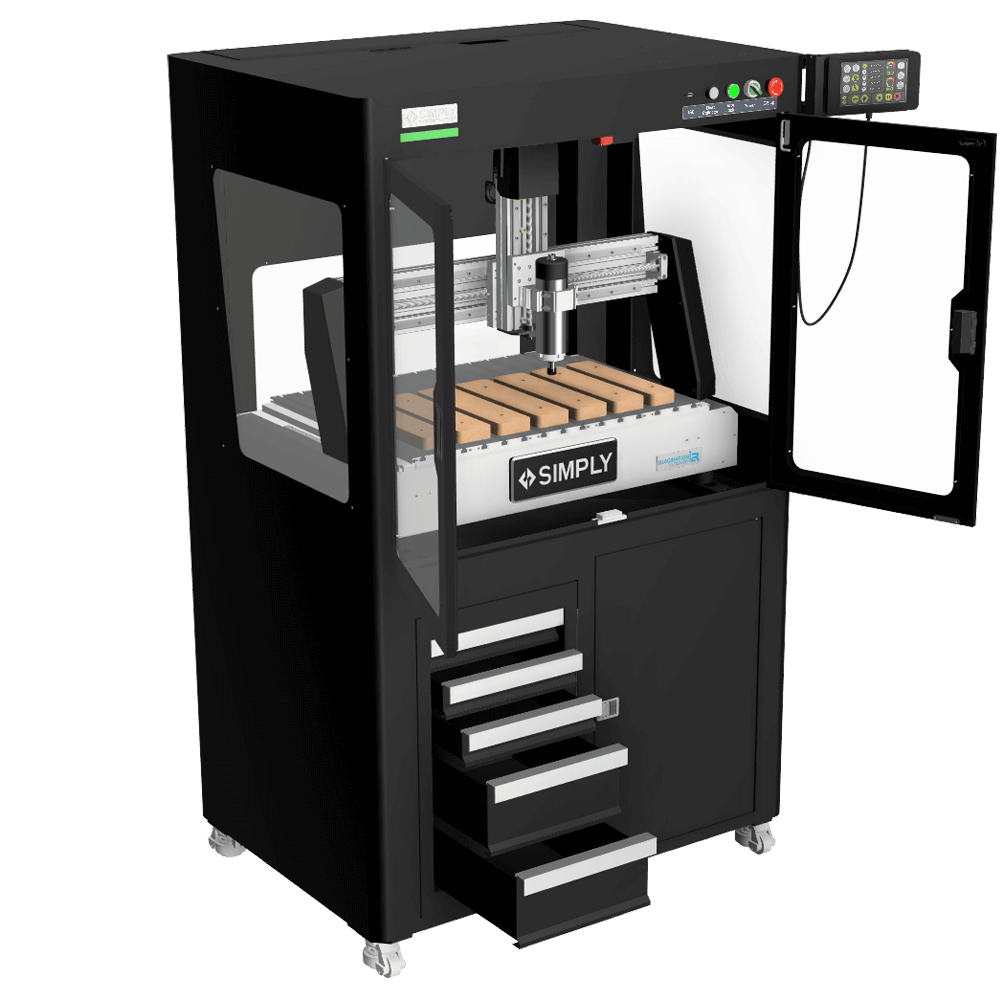

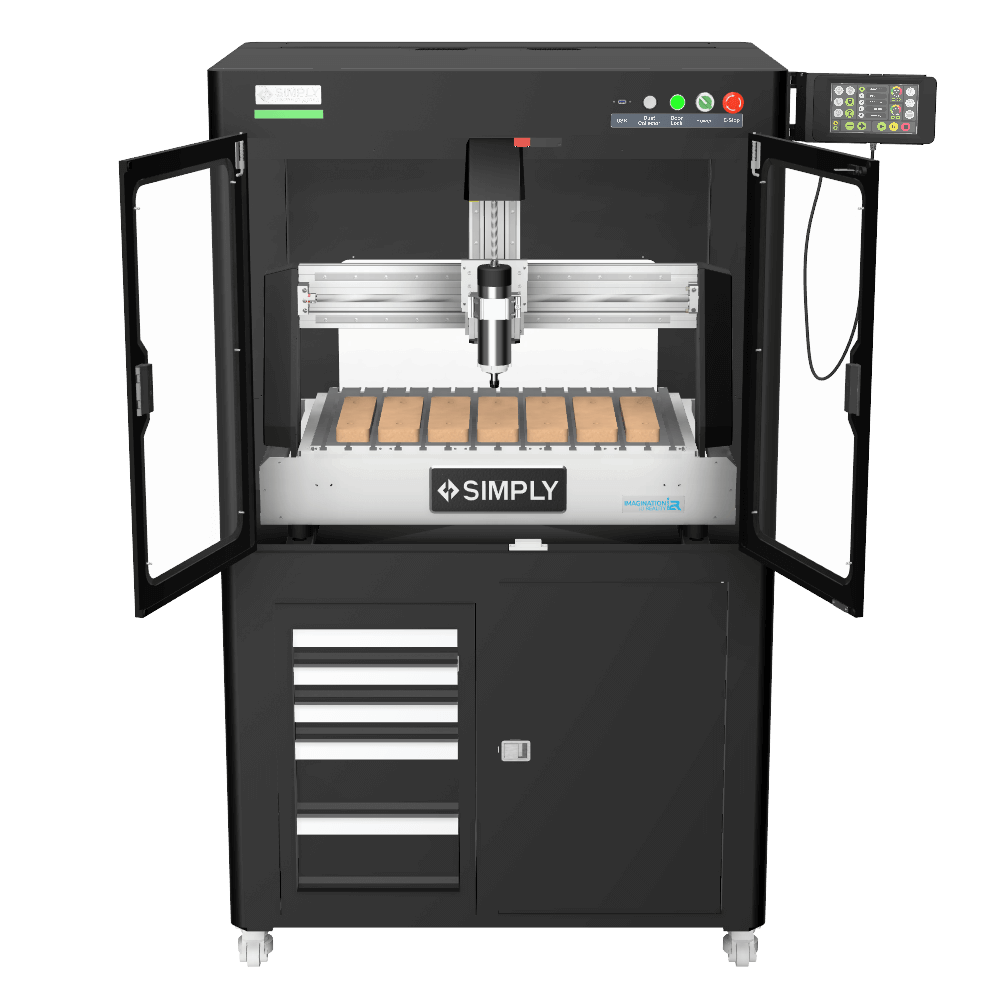

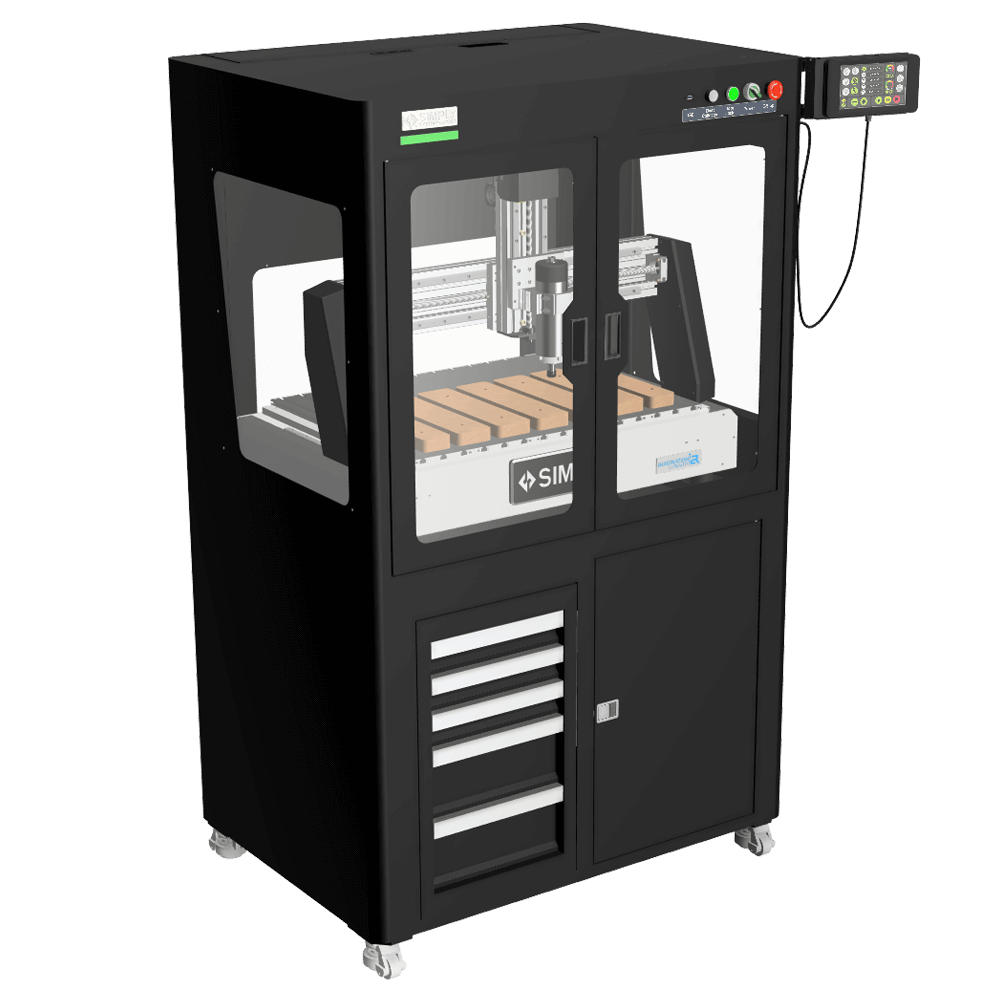

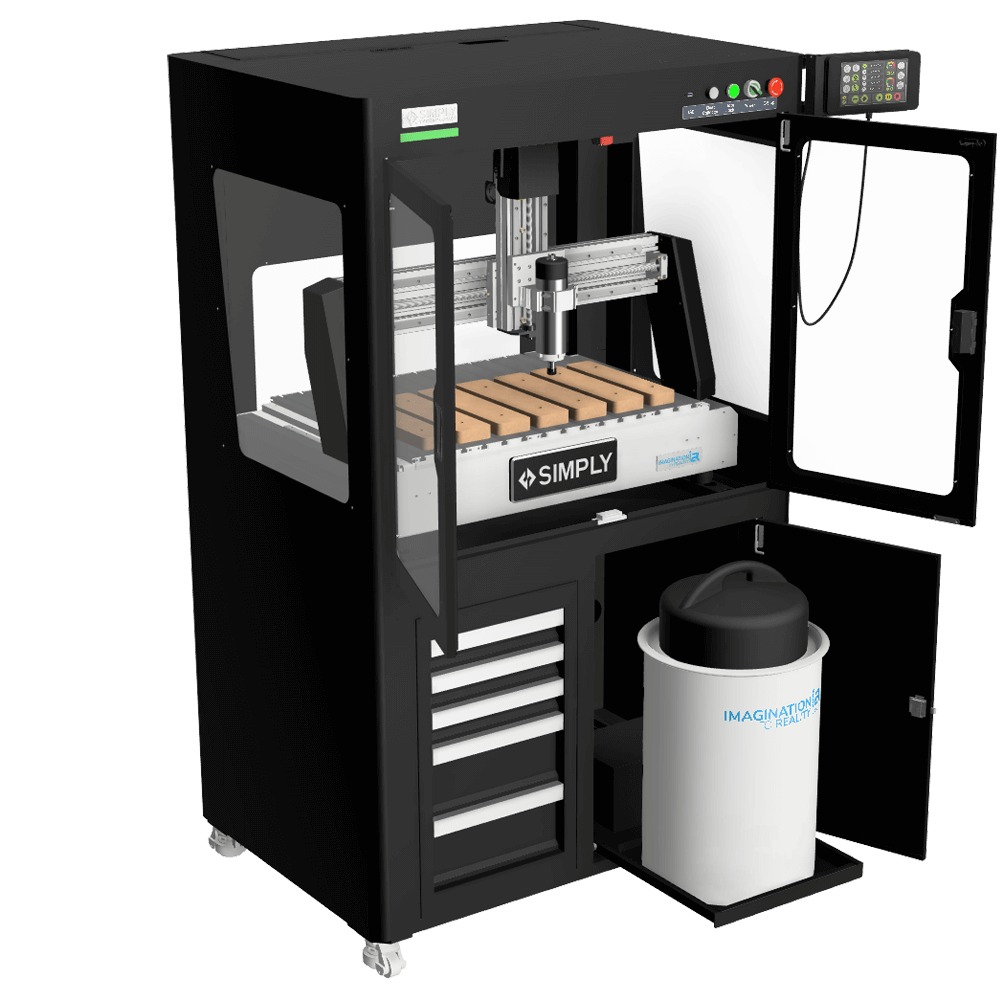

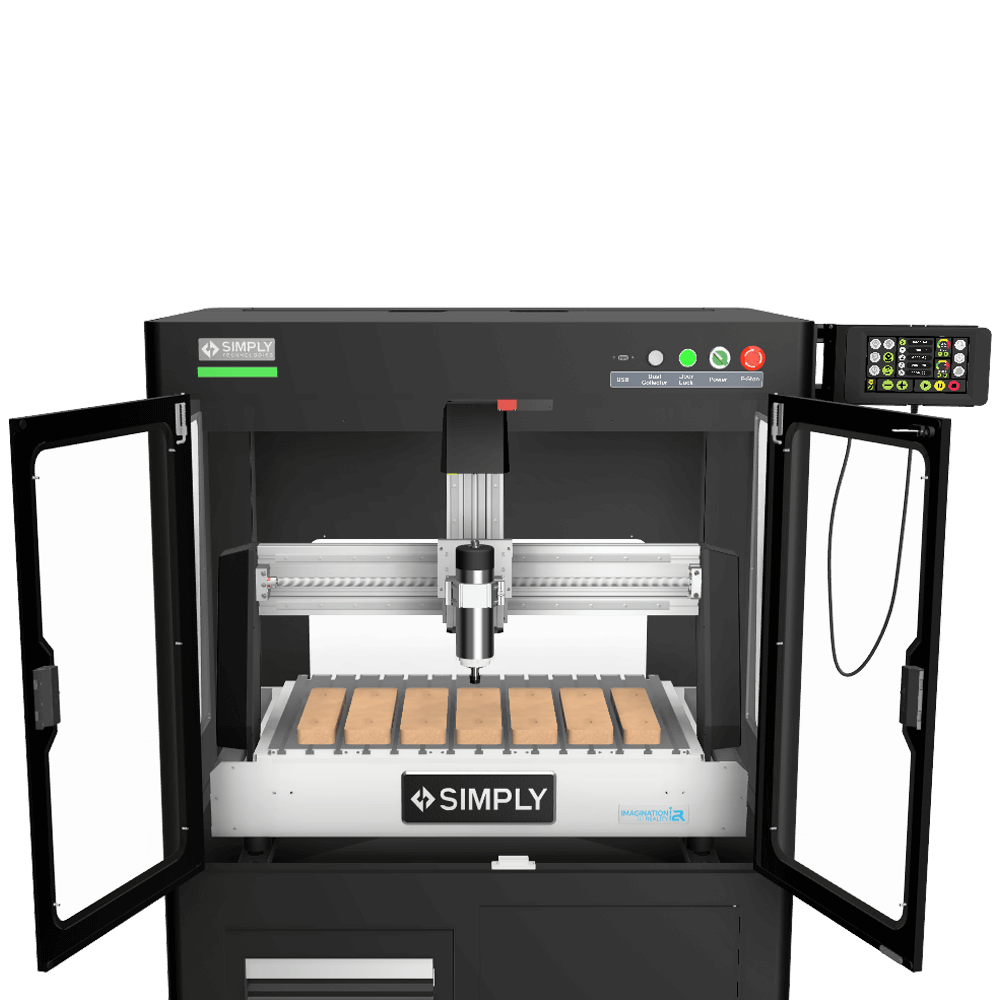

The Academy Series CNC machines are purpose-built for education, providing a safe, mobile, and fully integrated digital manufacturing solution that empowers teachers and students alike. The Academy 2 is housed in a fully enclosed matte black cabinet with interlocking safety doors, and features a built-in dust collection system, integrated tool storage drawer, and locking casters for easy movement between classrooms.

It features a 12” x 24” cutting area, a 1HP spindle, delivering clean, quiet performance for your workspace.

Each system ships fully assembled, making it a true plug-and-play solution. CSA-compliant and built for reliability, these machines are ideal for schools requiring both functionality and peace of mind.

Tech Specs

Academy Series

Academy Series Specifications
Specification Academy 1 Academy 2
X Axis Travel 12″ (305mm) 24″ (610mm)
Y Axis Travel 12″ (305mm) 12″ (305mm)
Z Axis Travel 5.5″ (140mm) 5.5″ (140mm)
Table Work Area 12″ x 12″ 12″ x 24″
Spindle Type 1HP Air Cooled 1HP Air Cooled
Spindle Configuration ER11 (1/8″ & 1/4″) ER11 (1/8″ & 1/4″)
Controller eCNC eCNC
On-Board Memory No No
Rapid Feed Rate 150ipm (3.81m/min) 150ipm (3.81m/min)
Tool Touch-Off Included Included
Onboard Cooling Included Included
Machine Base High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion
Rotary Axis Yes Yes
Resolution +/- .000197″ (0.05mm) +/- .000197″ (0.05mm)
Precision Linear Guides X / Y / Z X / Y / Z
Precision Ball Screw Transmission X / Y / Z X / Y / Z
Power Requirements AC 110V, 50-60Hz, 15A, 1-Phase (Optional 220V, 10A) AC 110V, 50-60Hz, 15A, 1-Phase (Optional 220V, 10A)
Working Table High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion
Gantry Bridge High Rigidity Aluminum Extrusion High Rigidity Aluminum Extrusion
Gantry Supports Steel Plate Steel Plate
Max Gantry Clearance 5.5″ (140mm) 6.5″ (165mm)
Clearance Above Spoil Board 4.5″ (115mm) 5.5″ (140mm)
Machine Dimensions
Shipping Dimensions
Machine Weight
Shipping Weight
