Key Takeaways
- A 2×4 CNC machine offers an approximate 24” x 48” cutting area, making it ideal for small shops, classrooms, and makerspaces while still capable of processing 4×8 plywood using tiling or pass-through designs.
- Simply Technologies builds CNC routers for daily use in small production shops, schools, and maker spaces—designed for reliability rather than short-term demos.
- Axis orientation (2×4 vs 4×2), frame rigidity, and control system quality matter more than raw footprint when selecting the perfect CNC machine.
- The SIMPLY → DISCOVERY → PERFORMANCE → PERFORMANCE ATC product lineup allows users to start compact and scale to larger machines or automated tool changing without changing workflows.
- Education customers can pair a 2×4 CNC with the EMPOWER[ED] ACADEMY 16-session curriculum for safe, CSA-compliant classroom deployment.
What Is a 2×4 CNC Machine?
A 2×4 CNC is a computer-numerically-controlled router with an approximate 24” x 48” (600 x 1200 mm) working envelope, built for woodworking, plastics, and light aluminum. These machines are commonly used to produce cabinet components, signs, jigs, and fixtures in small production environments.
The actual working travel on most machines exceeds the nominal “2×4” designation. For example, many systems offer around 25.6” in the Y-axis direction and 50” in the X-axis—providing crucial margin for clamps, tabs, and edge cleanup without re-fixturing.
The machine is typically a 3-axis CNC router with a moving gantry over a fixed bed, designed for sheet goods such as Baltic birch, MDF, plywood, and composite panels. Simply Technologies positions these machines as compact, production-capable tools rather than hobby equipment, suitable for long-term use in small shops and schools where durability and precision matter.
2×4 vs 4×2 CNC Machine Orientation
Both “2×4” and “4×2” describe cutting area dimensions, but which dimension maps to the X-axis versus Y-axis fundamentally changes how full sheets fit and how the operator loads material into the work area.
Here’s the key distinction:
- A 2×4 CNC has approximately 2 feet of travel on the X-axis and approximately 4 feet on the Y-axis
- A 4×2 CNC reverses this, with approximately 4 feet on the X-axis and approximately 2 feet on the Y-axis
A 4×2 configuration often allows full 4-foot-wide plywood to pass through the machine along the X-axis. This matters if you want to process 4×8 sheets without ripping them down beforehand—the open front-to-back design enables passing full sheets through without pre-cutting.
A 2×4 machine can still handle 4×8 plywood using tiling strategies in CAD/CAM, indexing along the length, or via pass-through openings in the frame if designed for it. Machines like the Carbide 3D Shapeoko 5 Pro incorporate tiling features that allow cutting full 4×8 sheets on smaller work areas.
With a properly engineered machine gantry, overall rigidity is driven by extrusion size, bearing spacing, dual-motor architecture, and structural bracing—not simply whether the machine is 2×4 or 4×2. Machines with dual Y-motors eliminate racking that can occur with a single motor, making rigidity independent of orientation.
Is It a “True” 2×4 CNC Machine?
Some manufacturers advertise “2×4” even when usable cutting travel is significantly under 24” x 48”. This matters when you need to cut nested parts, full-size cabinet panels, or jigs that depend on the advertised dimensions.
A “true” 2×4 CNC should offer slightly more than 24” x 48” motion—for example, 26” x 50”—to give room for hold-downs, tabs, and edge cleanup without re-fixturing.
How to verify from spec sheets:
- Look for “working travel” or “cutting envelope” rather than just “table size” or “frame size”
- Confirm that X-axis travel is at least a few inches over 24” if you routinely cut 24”-wide cabinet sides or panel doors
- Check that accurate homing switches and repeatable work offsets are included
Simply Technologies publishes real working travels on its CNC machines page so users can confirm part fit before buying. Accurate homing and repeatable work offsets contribute to “true” usability, especially when tiling larger parts on a 2×4 platform or maintaining consistent accuracy across multiple setups.
Where a 2×4 CNC Fits: Shops, Schools, and Makerspaces
The 2×4 footprint is popular because it fits through standard doors, runs on common single-phase power, and still handles serious work. This makes it a game changer for operations that need production capability without the space or electrical demands of larger machines.
Small production shop applications:
- Cabinet components and drawer fronts
- Face frames and panel doors
- Sign blanks and engraving work
- Jigs, fixtures, and templates
- Prototyping in wood, plastics, and soft metals
Education use cases:
High school tech labs, community college maker spaces, and university prototyping shops need reliable machines with safety controls. A 2×4 CNC becomes a lab workhorse when paired with structured training—allowing project-based learning without overwhelming beginners.
Simply Technologies’ ACADEMY Series and EMPOWER[ED] ACADEMY provide a 16-session curriculum covering CAD/CAM training, certification pathways, and teacher onboarding aligned to 2×4-class routers. The program is designed to work within CSA compliance requirements for Canadian schools, with clear operating procedures and safety protocols.
Safety considerations for regulated environments include e-stops, guarded wiring, lockable control panels, and dust management systems that limit airborne particulates in classroom settings.

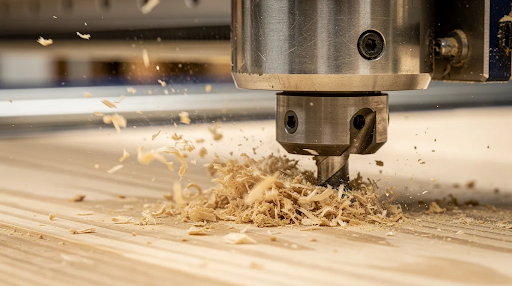

Key Specifications to Compare on a 2×4 CNC Machine
Not all 2×4 machines are equal. Real-world performance is defined by mechanics, electronics, and control software—not just footprint. Here’s what to compare when evaluating your options.
Mechanical Structure
Frame construction determines how well the machine holds up under daily use. Welded steel frames typically offer more rigidity than bolt-together alternatives. Gantry extrusion size and bracing affect vibration control, which directly impacts cut quality in hardwoods and composite materials.
Simply Technologies prioritizes rigidity and vibration control for repeatable cuts, with frames designed to handle the demands of small production environments.
Motion System
The choice between linear rails vs V-wheels and ballscrews vs rack-and-pinion affects both precision and maintenance requirements:
- Linear rails generally provide better accuracy and durability for experienced users
- Typical rapid feed rates range from 200-800 IPM depending on machine class
- The Powermatic PM-2x4SPK achieves 200 IPM rapid feed rates with 24” x 48” x 6” travel on X, Y, and Z axis
Spindle and Router Options
Spindle specifications affect material versatility and edge finish:
- Power ratings typically range from 1.5-3.0 kW
- Collet sizes include ER11 or ER20
- RPM ranges reach up to 24,000 RPM for high speeds on various materials
- Consider whether the system supports future upgrades to higher power or ATC
Control Electronics
Industrial motion controllers, reliable drivers, and PC- or pendant-based interfaces distinguish production-capable machines from hobby-grade equipment. The Powermatic PM-2x4SPK includes a handheld controller with an 8-foot cable, making it easy to oversee projects from various positions—a feature that supports both single-operator shops and multi-user educational environments.
Accessories
Important add-ons for production use include:
- Dust collection systems with vacuum tables
- T-slot or hybrid table options for workholding with clamps
- Rotary attachments for cylindrical work
Compatible accessories are available through Simply Technologies’ CNC products page.
2×4 CNC for Education: Curriculum, Safety, and Long-Term Use
A 2×4 CNC becomes a lab workhorse when paired with structured training—not just dropped into a classroom as a stand-alone machine. The combination of appropriate equipment and curriculum makes the difference between effective skill-building and frustrating experiences.
EMPOWER[ED] ACADEMY 16-Session Curriculum
The program moves progressively through:
- Basic machine safety and operating procedures
- CAD design fundamentals
- CAM toolpathing for common materials
- Fixturing techniques and workholding strategies
- Multi-setup projects appropriate for a 2×4 workspace
Teacher Onboarding and Support
Resources include lesson planning materials, machine setup guidance, and assessment tools. Simply’s education team provides ongoing support for educators managing multiple student operators.
Safety Features for Classrooms
- E-stops positioned for easy access
- Lockable control panels to prevent unauthorized use
- Clear operating procedures aligned with CSA standards in Canada
- Dust collection and enclosures to limit airborne particulates
Durability in School Environments
Machines are designed for repeated daily use, multiple student operators, and long service life with accessible maintenance points. This durability is essential for schools where consistent performance over years of student training justifies the investment.
For schools evaluating 2×4 CNC options, call 800 288 2961 or Connect With Our Education Team for application-specific guidance.
Scaling Beyond 2×4: Simply’s CNC Product Progression
Many users start with a 2×4 CNC but eventually need larger tables, higher throughput, or automated tool changing as production grows. Understanding the upgrade path helps you make the right initial choice.
Simply’s Product Structure:
| Level | Description | Best For |
| SIMPLY | Entry-level systems | Learning, light production |
| DISCOVERY | Intermediate capability | Growing shops, education |
| PERFORMANCE | Higher capacity | Consistent production |
| PERFORMANCE ATC | Automated tool changing | High-volume, multi-tool jobs |
A user might begin with a 2×4 machine in the SIMPLY or DISCOVERY range, then step up to larger work envelopes or ATC systems while maintaining familiar workflows, software, and training materials. This compatibility means your team’s skills transfer directly—no retraining required.
CNC routers remain the core of the ecosystem, with CO2 lasers and shop automation tools serving as complementary technologies for engraving, cutting thin stock materials, and automating repetitive tasks.
For comparing models and determining the right fit, explore the CNC products overview or machines section. Better yet, call 800-288-2961 for application-specific guidance rather than making decisions on footprint alone.

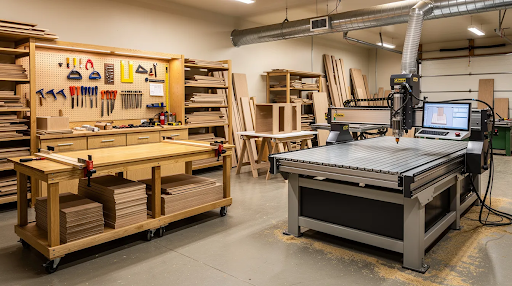

Support, Setup, and Real-World Implementation
The success of any 2×4 CNC installation depends on proper setup, training, and ongoing technical support. The machine itself is only part of the CNC solution.
Pre-Sale Support
- Application review to match machine to your specific tasks
- Layout advice for small shops and classrooms
- Recommendations for power, dust collection, and workholding
Onboarding Process
- Machine installation guidance for your space
- Initial cuts to verify setup
- Dial-in of feeds and speeds for common materials such as plywood, hardwoods, and plastics
Ongoing Support
- Phone-based troubleshooting at 800 288 2961
- Replacement parts availability
- Software updates
- Advice as you take on more complex jobs or integrate additional accessories
Simply Technologies focuses on long-term reliability in real working environments rather than short-term “out of the box” performance. A 2×4 CNC router should be a sustainable part of your shop workflow for years—not something you outgrow or replace due to inadequate support.
To explore options, visit Simply Technologies’ CNC and Laser Systems or call 800-288-2961 with project-specific questions.
FAQ
Can a 2×4 CNC machine handle full 4×8 plywood sheets?
While a 2×4 machine does not cover a 4×8 sheet in a single setup, users can process 4×8 stock using tiling strategies, indexing along the length, or pass-through designs that let the sheet slide under the gantry. Careful CAD/CAM planning, repeatable homing, and physical indexing stops make this approach practical for cabinet parts and large signage on a 2×4 footprint.
What materials can I realistically cut on a 2×4 CNC router?
A well-built 2×4 router can cut softwoods, hardwoods, MDF, plywood, many plastics (like acrylic and HDPE), and light non-ferrous metals such as aluminum—within appropriate feeds and speeds. For composite panels, laminates, or thicker aluminum tooling plates, contact Simply Technologies for application-specific recommendations.
How much floor space do I need for a 2×4 CNC in my shop or classroom?
While the cutting area is roughly 2 feet by 4 feet, the actual footprint is larger to account for the frame, control cabinet, and customer access—commonly in the 4’ x 7’ range depending on design. The AltMill MK2 2×4, for example, measures 39” deep by 63” wide. Recommend leaving additional clearance on at least three sides for loading material, maintaining the machine, and safe operator movement.
Is a 2×4 CNC router suitable as a first machine for students or new CNC users?
A 2×4 CNC is an excellent first machine when paired with structured training such as Simply’s EMPOWER[ED] ACADEMY 16-session curriculum and Path-style CAD/CAM onboarding. The combination of beginner-friendly controls and proper training makes the machine accessible while building real skills. Safety training, clear operating procedures, and teacher oversight are important, especially in middle and high school environments.
When should I move from a 2×4 CNC to a larger or ATC-equipped system?
Consider upgrading when you consistently outgrow the table size, run repetitive multi-tool jobs where manual tool changes slow production, or need to nest higher volumes of parts per sheet. Simply’s SIMPLY → DISCOVERY → PERFORMANCE → PERFORMANCE ATC progression lets you scale capabilities without drastically changing software or workflow. Call 800-288-2961 to discuss timing and options based on your specific production needs.
