Introduction: Why Automatic Tool Changers Matter More Than You Think
An automatic tool changer is a mechanism integrated into CNC machinery that automates the switching of cutting tools during machining operations without requiring human intervention. By the mid-2000s, this technology had become standard on many machining centers, transforming how cnc machine tools handle multi-operation jobs.
Common use cases include milling centers with 16-40 tool carousels, turning centers with automatic turrets, and 5-axis cnc machines doing multi-operation work. Whether you’re producing aerospace components or running a job shop handling custom machinery parts, the ATC has become essential equipment for competitive manufacturing.
Yet many shops still underestimate the compounded time and cost of manual tool changes. This is especially true for high-mix, low-volume work where operators swap tools dozens of times per shift. The seconds add up—and so do the dollars.
SimplyTechnologies.xyz serves as a partner that helps shops model the real economic impact of ATCs using their own job mix and hourly rates. The rest of this article focuses on concrete time and cost math, not general automation hype.
How an Automatic Tool Changer Actually Works on a CNC
The typical ATC mechanism stores multiple cutting tools—ranging from 4 to 24 different tools on entry-level machines and 60 or more on production HMCs—in a carousel, magazine, or rack configuration. The system automatically selects and installs the appropriate tool based on programmed instructions, eliminating the need for operator intervention during cnc machining cycles.
The basic tool change sequence follows these steps:
- M06 command trigger: The CNC program calls for a specific tool using a T code, followed by the M06 tool change command
- Spindle park position: The spindle moves to a designated safe location away from the workpiece
- Magazine index: The carousel or magazine rotates to position the required tool
- Arm swap: The tool-swapping mechanism exchanges the current tool for the new one
- Sensor confirmation: The system verifies proper tool seating before resuming operations
This entire sequence completes in seconds. The precision of automated tool changes maintains consistency that manual changes simply cannot match.
Tool counts matter for job complexity and unattended runs. Entry-level VMCs typically hold 12-24 tools, while production HMCs can accommodate 60 or more. SimplyTechnologies.xyz can help specify ATC capacity and configuration based on real part programs and tool libraries for your specific production needs.
Direct Time Savings: From Seconds per Tool Change to Hours per Week
Here’s where the math gets compelling. Typical automatic tool change time on modern VMCs runs 6-12 seconds. Manual change time ranges from 45-120 seconds depending on operator skill and setup complexity. That difference multiplies fast.
Example A: Production Batch Work
Consider a 10-tool job running 200-piece batches over 2 shifts per day:
| Factor | Manual Changes | ATC Changes |
| Time per tool change | 90 seconds | 10 seconds |
| Tool changes per part | 9 | 9 |
| Total change time per part | 810 seconds (13.5 min) | 90 seconds (1.5 min) |
| Change time for 200 parts | 45 hours | 5 hours |
| Time saved per batch | — | 40 hours |
That’s 40 hours of machine downtime eliminated per batch. Run four batches monthly, and you’re looking at 160 hours of recovered production time.
Example B: High-Mix Job Shop
For a shop running mostly 5-20 piece orders with 8-15 tools per job:
| Weekly Metrics | Manual | With ATC |
| Average jobs per week | 25 | 25 |
| Average tool changes per job | 180 | 180 |
| Time per change | 75 seconds | 8 seconds |
| Weekly change time | 62.5 hours | 6.7 hours |
| Weekly time saved | — | 55.8 hours |
The cutting minutes don’t change—your feeds and speeds stay the same. But spindle utilization improves dramatically because the ATC compresses those non-productive intervals between operations.
SimplyTechnologies.xyz recommends that shops log actual change times for a week before and after ATC adoption to validate these savings with real data.

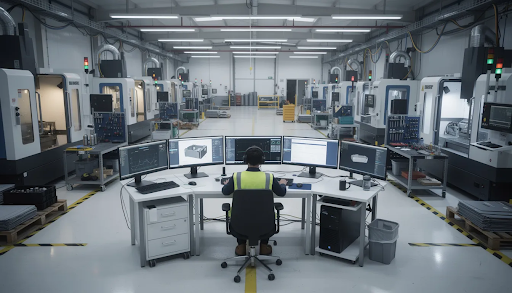

Labor and Staffing Impact: What ATCs Really Do to Your Hourly Costs
ATCs rarely replace an operator outright. What they actually do is reduce the time operators spend “tied” to a single machine performing repetitive manual tasks.
With automatic tool changes handling the swap work, one operator can realistically supervise 2-3 cnc machines instead of one, especially on repeat production jobs. This changes your labor economics significantly.
Labor Cost Example
Using realistic 2025 labor rates for skilled machinists:
| Scenario | Operators Needed | Hourly Cost per Operator | Total Labor Cost (8-hr shift) |
| Manual changes, 3 machines | 3 | $35 | $840 |
| ATC-equipped, 3 machines | 1-2 | $35 | $280-$560 |
| Daily savings | — | — | $280-$560 |
Over a 250-day work year, that’s $70,000-$140,000 in potential labor savings—just from improving how your shop handles tool changes.
ATCs also reduce overtime and weekend staffing needs. Extended or lightly attended shifts become more realistic when machines can run longer without constant operator intervention. Many manufacturing companies find this flexibility critical for meeting delivery commitments.
SimplyTechnologies.xyz helps shops map operator tasks—loading, inspection, documentation—and shows exactly where ATC frees time for higher-value work like quality control or process improvement.
Quality, Tool Life, and Scrap Reduction: Hidden Savings from ATCs
Consistent, automated tool changes reduce human variation in tool seating, torque, and sequence errors. This matters more than many shops realize.
Mis-loaded or incorrectly seated tools during manual changes lead to:
- Chipped cutters requiring premature replacement
- Poor surface finish on finished parts
- Tolerance failures catching parts at final inspection
- Scrapped parts that waste both materials and machine time
Scrap Cost Example
Assume 1-2 bad parts per 1,000 from manual tool-change errors. For a shop running $500,000 in annual material through their machines:
| Factor | Value |
| Annual parts produced | 50,000 |
| Scrap rate from tool-change errors | 0.15% (1.5 per 1,000) |
| Parts scrapped annually | 75 |
| Average material + machining cost per part | $45 |
| Annual scrap cost | $3,375 |
That’s just the direct cost. Add in the rush jobs to replace scrapped parts, the customer satisfaction issues, and the quality control time spent investigating failures, and the true cost climbs higher.
ATCs support systematic tool life tracking—calling sister tools after a certain number of parts—which improves predictability and reduces catastrophic failures. You’ll see fewer surprise tool breakages mid-cut.
SimplyTechnologies.xyz can integrate ATC usage with tool management and presetting workflows to stabilize quality and tool costs across your production processes.
Setup Time, Changeovers, and High-Mix Production Economics
For many job shops with high-mix work, changeover time between jobs is as critical as cycle time within a single job. This is where larger ATC magazines create real competitive advantages.
Pre-loading all standard tools for the majority of jobs leaves only a few custom tools to be swapped between runs. Your most common operations—facing, drilling, tapping, finishing—stay permanently loaded.
Changeover Time Example
Consider a 30-tool magazine strategy:
| Configuration | Tools | Setup Time per New Job |
| No pre-loaded tools | 0 permanent | 45+ minutes |
| 22 permanent + 8 flex positions | 22 permanent | 10-15 minutes |
| Time saved per changeover | — | 30-35 minutes |
Run 25 changeovers per week, and you’re saving 12-15 hours weekly. That translates directly into faster quoted lead times and better responsiveness to rush jobs—particularly valuable for customers in aerospace, medical, or custom machinery sectors where speed creates repeat business.
SimplyTechnologies.xyz can analyze a shop’s last 3-6 months of work orders and suggest an optimized “standard tool library” strategy tailored to their ATC configuration.
What an ATC Really Costs: Purchase, Maintenance, and Downtime Risk
Understanding total cost of ownership requires looking beyond the sticker price. Here are ballpark 2024-2025 cost ranges:
| ATC Configuration | Incremental Cost |
| Basic 10-tool ATC on entry-level VMC | $8,000-$12,000 |
| 24-tool carousel ATC | $15,000-$22,000 |
| 30+ tool chain-type magazine | $25,000-$40,000 |
Main cost components over the ATC’s life include:
- Initial capital cost: The upfront investment in the machine tool upgrade
- Periodic maintenance: Chains, sensors, lubrication—typically inspected every 6 months or 2,000 running hours
- Occasional repairs: Tool arm alignment, magazine drive issues
- Potential downtime: If the changer fails during production
The good news: ATC designs have improved significantly since roughly 2015. Better encoders, improved diagnostics, and more robust construction have reduced failure rates. Preventive maintenance costs remain modest compared to unplanned stoppages.
SimplyTechnologies.xyz advocates budgeting approximately 2-3% of machine value annually for ATC upkeep and offers guidance on building this into ROI calculations so there are no surprises.

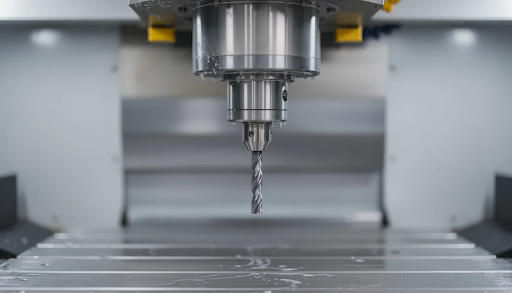

Return on Investment: Modeling Payback for Your Shop
Let’s walk through a simplified ROI model using realistic assumptions your shop can adapt.
Baseline Assumptions
| Factor | Value |
| Machine hourly rate (fully burdened) | $85/hour |
| Minutes saved per part via ATC | 8 minutes |
| Parts produced annually | 15,000 |
| ATC investment cost | $15,000 |
Calculation
| Metric | Value |
| Annual minutes saved | 120,000 minutes (2,000 hours) |
| Value of recovered time | 2,000 hours Ă— $85 = $170,000 |
| Payback period | Less than 2 months |
Even with more conservative assumptions—say, only 3 minutes saved per part—the payback typically falls within 12-24 months based on time and labor savings alone.
Secondary benefits like less scrap, fewer rush jobs, and more lights-out running should be treated as sensitivity scenarios rather than guaranteed numbers. But they’re real, and many shops find they tip an already-positive ROI into exceptional territory.
Encourage readers to plug in their own cycle time and labor rate data. ROI varies sharply between a prototype shop and a production line.
SimplyTechnologies.xyz can help build a custom ROI worksheet for buyers evaluating ATC-equipped cnc machines, using your actual job data rather than industry averages.
How SimplyTechnologies.xyz Helps You Capture ATC Savings
The time-and-cost discussions above connect directly to the services and tools offered by SimplyTechnologies.xyz. Their approach centers on data rather than assumptions.
SimplyTechnologies.xyz helps shops:
- Benchmark current manual tool-change times using structured time studies
- Simulate ATC-enabled cycle times based on your existing part programs
- Calculate machine utilization gains using your shop’s actual job data
Beyond the numbers, SimplyTechnologies.xyz advises on:
- Optimal tool magazine capacity for your job mix
- Standard versus specialty tool loadouts to minimize changeover time
- Integration with presetters and offset management systems
The focus stays on practical, data-driven recommendations rather than one-size-fits-all automation pitches. Every shop is different, and the right ATC strategy depends on your specific production mix, labor situation, and growth plans.
Contact SimplyTechnologies.xyz with sample part programs or time studies to get a tailored ATC savings estimate. They’ll help you identify areas where automation delivers real returns—and where it might not make sense yet.
FAQ
Is an automatic tool changer worth it for very low-volume or prototype work?
For one-off or very short-run prototype work, ATC savings depend heavily on how many tools each job uses and how frequently tools are changed. If most jobs use only 2-3 tools and involve long cutting times, the payback is slower. However, ATCs still help reduce setup variability and operator fatigue even in prototype environments.
The recommendation: track actual manual change time for a few weeks before deciding. Also consider future growth in job volume—an ATC purchased today may deliver modest returns now but substantial savings as your shop scales.
How many tools should my ATC hold for a small shop starting out?
Many shops start with 16-24 tools, which provides enough capacity for a core library plus a few custom tools per job. This range handles most general machining work without excessive cost.
The “right” number depends on part complexity and how much high-mix work you expect over the next 3-5 years. Buying too small means frequent manual swaps; buying too large means paying for capacity you won’t use. SimplyTechnologies.xyz can analyze sample jobs and suggest a magazine size that balances current needs with room for growth.
What happens if the automatic tool changer fails during production?
Typical failure modes include sensor faults, mis-indexed tools, and arm misalignment. Modern CNC controls detect these issues and stop safely rather than crashing tools into workpieces.
Many machines allow limited manual operation or “parked” modes while the ATC is repaired, though with reduced efficiency. The key is preventive maintenance and proper installation to minimize unexpected stoppages. Most shops report ATC reliability rates above 99% when maintenance schedules are followed.
Do automatic tool changers increase programming complexity?
Most of the complexity is handled by the CNC control. Programmers usually just call tool numbers (T codes) and tool change commands (M06). The machine handles the physical swap.
The main new tasks involve keeping an accurate tool list, offsets, and magazine map. These can be managed with simple templates or CAM post-processor settings. SimplyTechnologies.xyz can help configure posts and setup sheets so ATC programming remains straightforward for your team.
Can I retrofit an ATC to an older CNC machine?
Retrofitting is sometimes possible but depends heavily on machine design, control electronics, and available integration points. Some older machines accept ATC retrofits relatively easily; others require extensive modification.
Retrofits can approach or exceed the cost of upgrading to a newer ATC-equipped machine if extensive control and mechanical work is required. Shops considering a retrofit should evaluate whether upgrading to newer equipment offers better long-term value. SimplyTechnologies.xyz can help assess both options based on your specific situation and budget.
