Lateral Clamp Kit

SKU: LCKCNC

$399.00CAD

The BOW Products Low Profile Clamping Kit is your ultimate workholding solution—built for flexibility, strength, and ease of use. Whether you are working on a CNC table, dog hole surface, or traditional workbench, this kit provides a rock-solid grip without getting in your way.

Designed to fit seamlessly into the T-track system of any SIMPLY, PERFORMANCE, DISCOVERY, or ACADEMY Series CNC machine, it allows for full 360° positioning and 4 inches of linear travel. The expandable dogs lock securely into even shallow dog holes, while the angled clamp tips apply true downward force to keep your workpiece flat and secure.

The low-profile design keeps your workspace clear for routing, engraving, and finishing, while interchangeable tips and included fence stops add adaptability for virtually any project.

All components are neatly organized in a pre-cut EVA foam tray (fits Systainer3 M models), making this kit perfect for mobile classrooms, production shops, and serious hobbyists alike.

Includes:

  • 2 Low-Profile Clamps

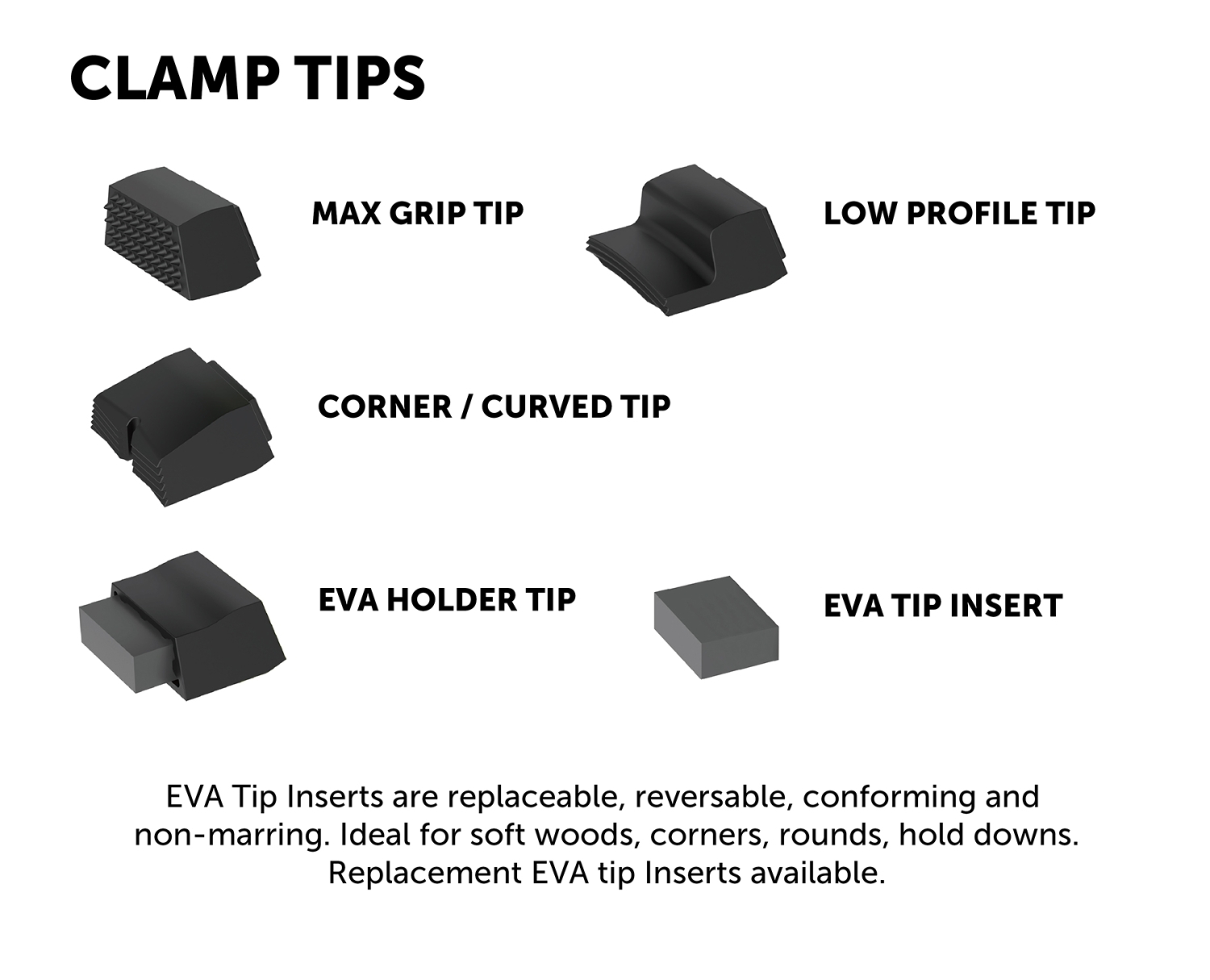

  • 4 Interchangeable Clamp Tips

  • 2 Fence Stops for side holding

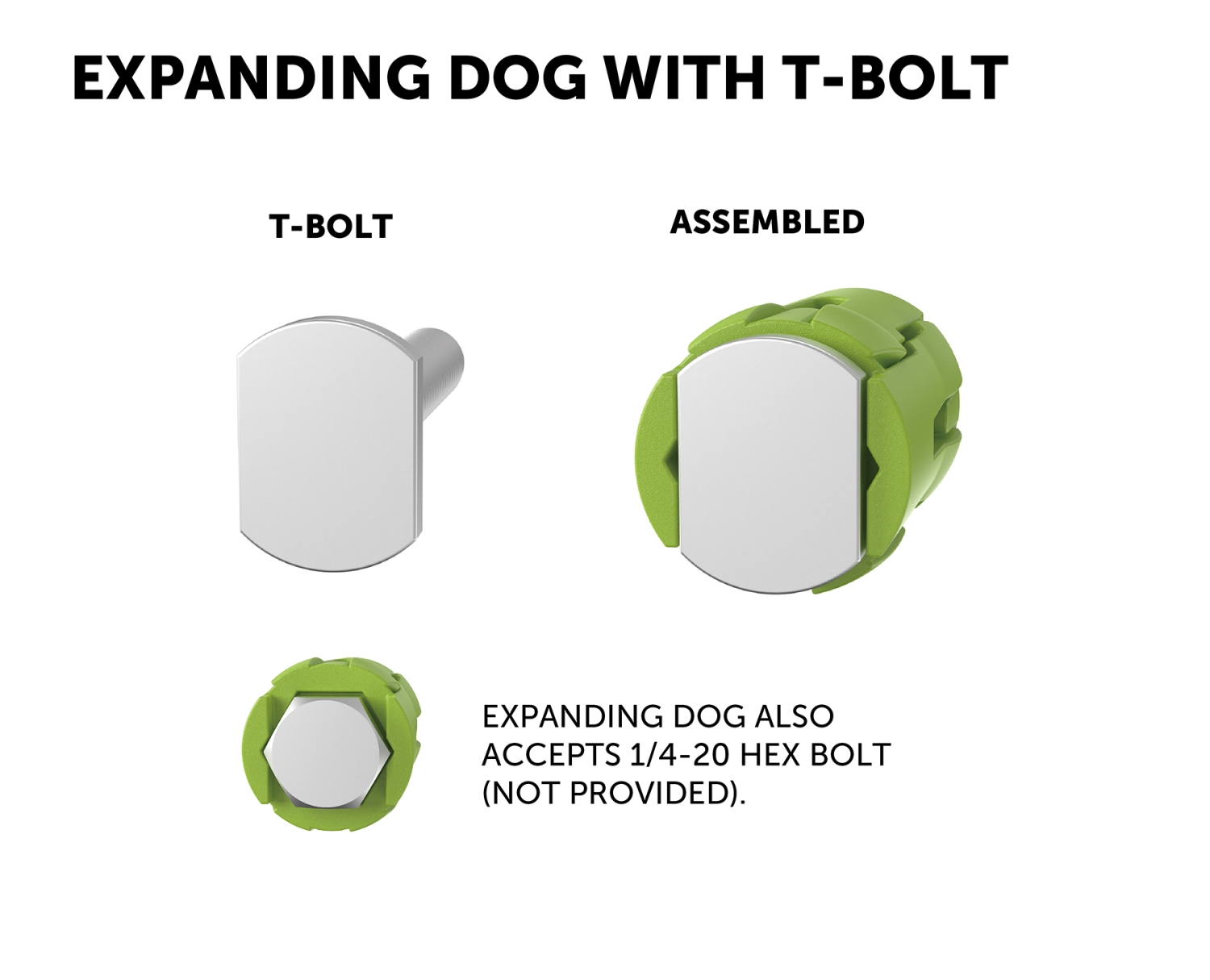

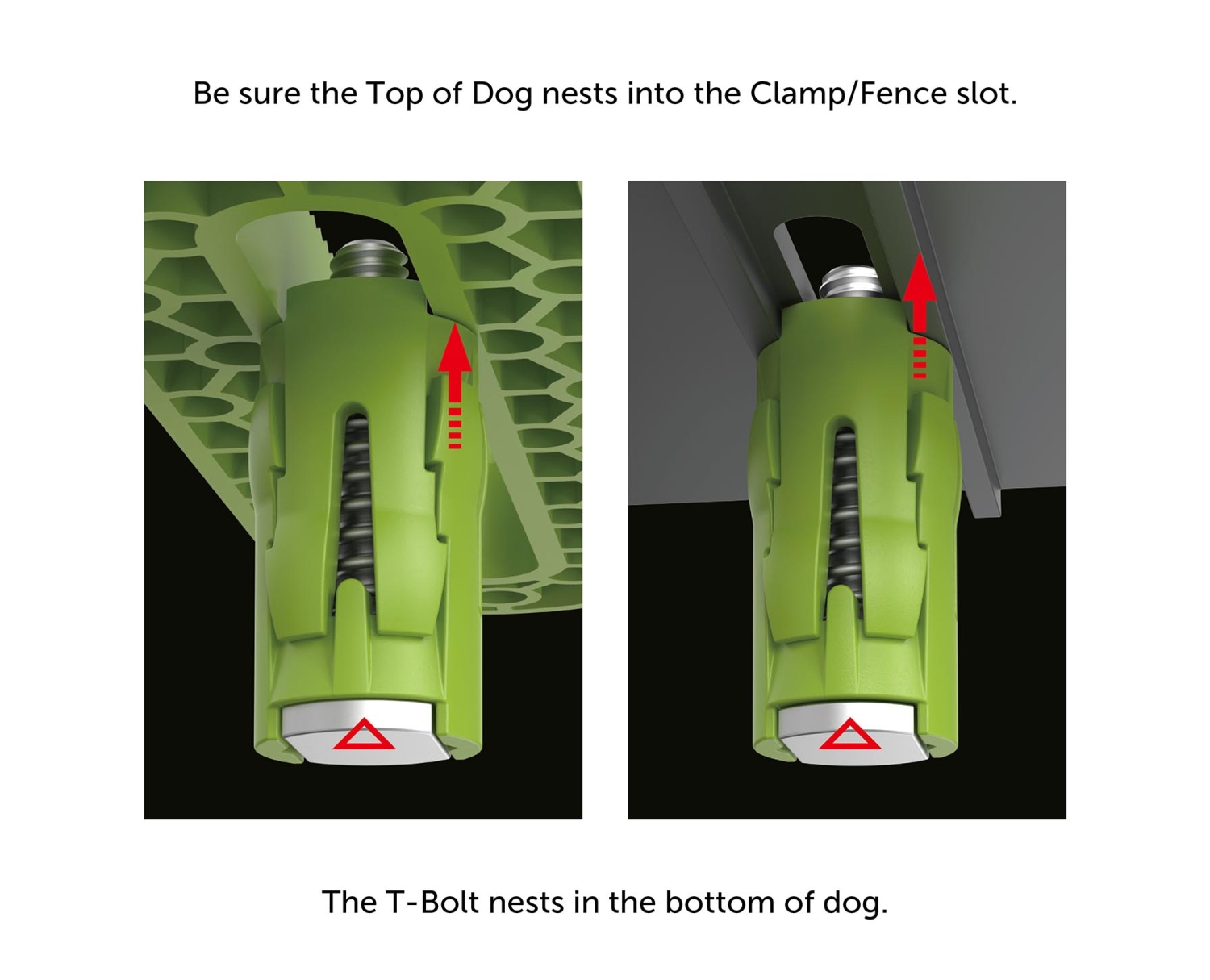

  • Expandable Dogs for dog table compatibility

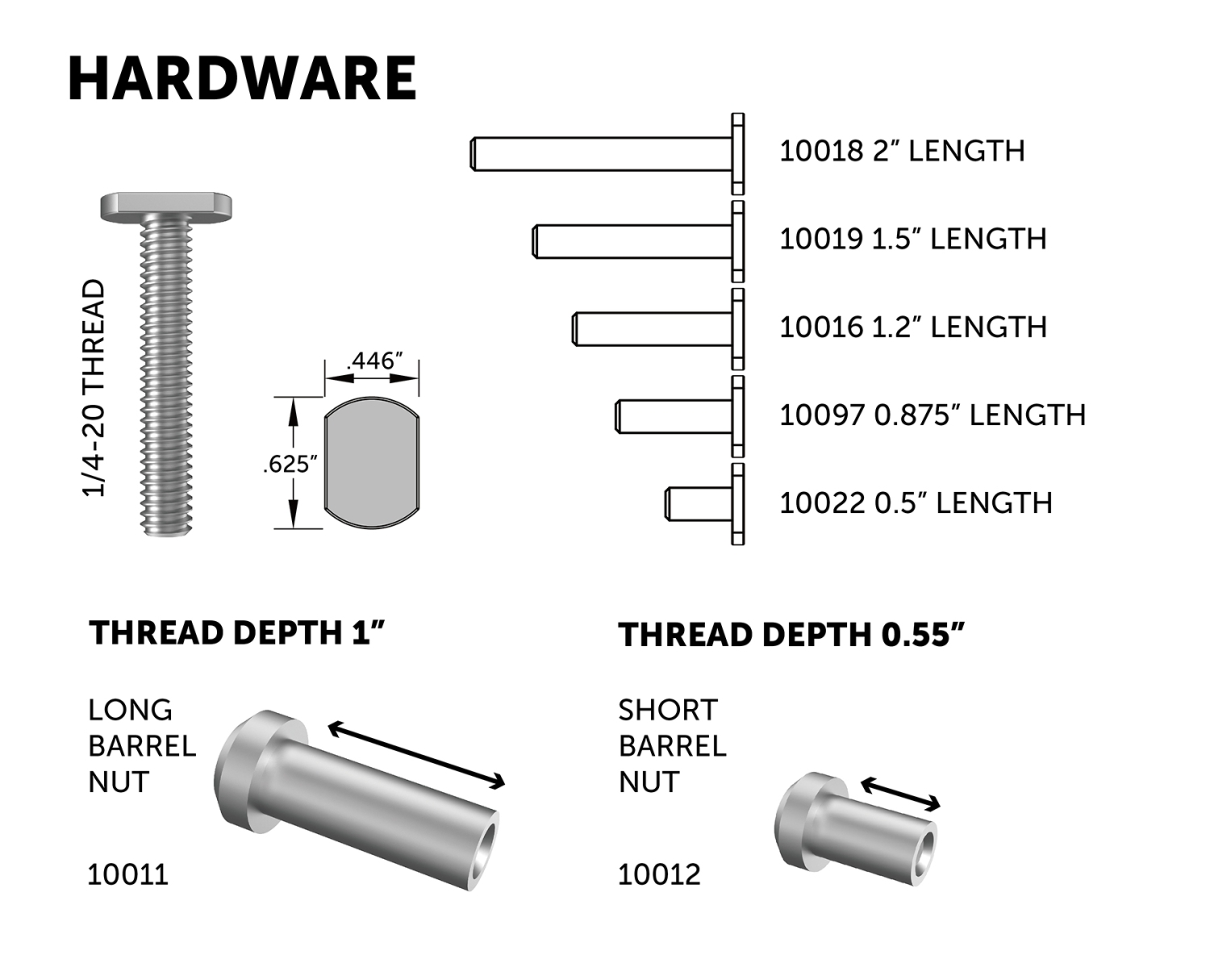

  • T-bolts and Barrel Nuts for secure T-track setup

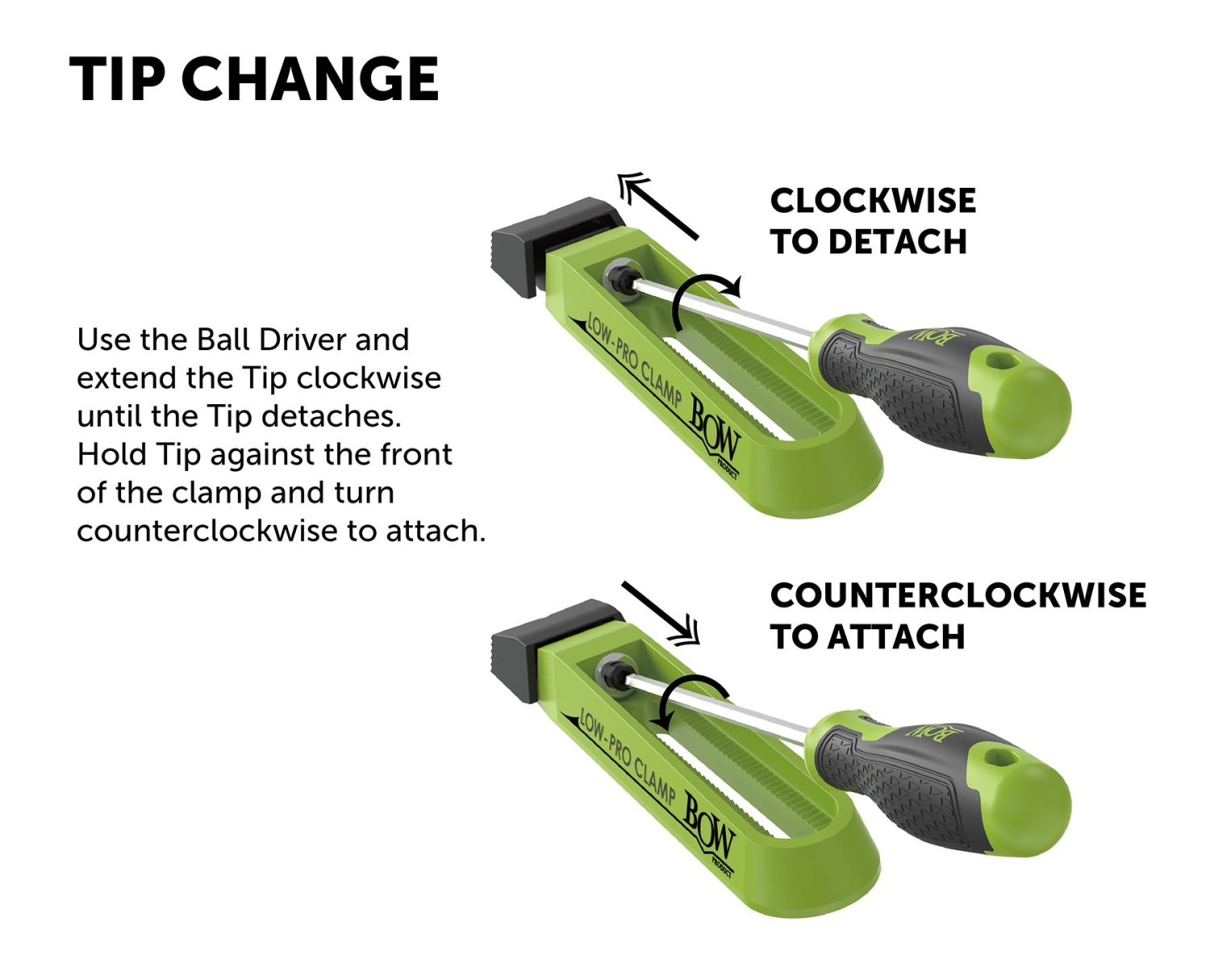

  • Hex Drive for adjustments

  • Low-Profile Knobs

Description

Work holding has always been a challenge for CNC operators.

Traditional hold-down clamps reach over your material and often interfere with machining operations. The NEW SIMPLY Lateral Clamp Kit offers a low profile design capable of holding nearly any workpiece without impacting the top surface of your product. It offers immense holding power without marring the edge of your substrate. The SIMPLY Lateral Clamp Kit is the perfect solution for fast, secure, repeatable clamping operations.

This clamp kit was deigned specifically to fit within the integrated T-slots on all SIMPLY Precision CNC machines.

Each kit includes (2) lateral clamps, (2) serrated tips, (2) non-marring EVA tips, (2) dual-height extruded fences and hex driver.

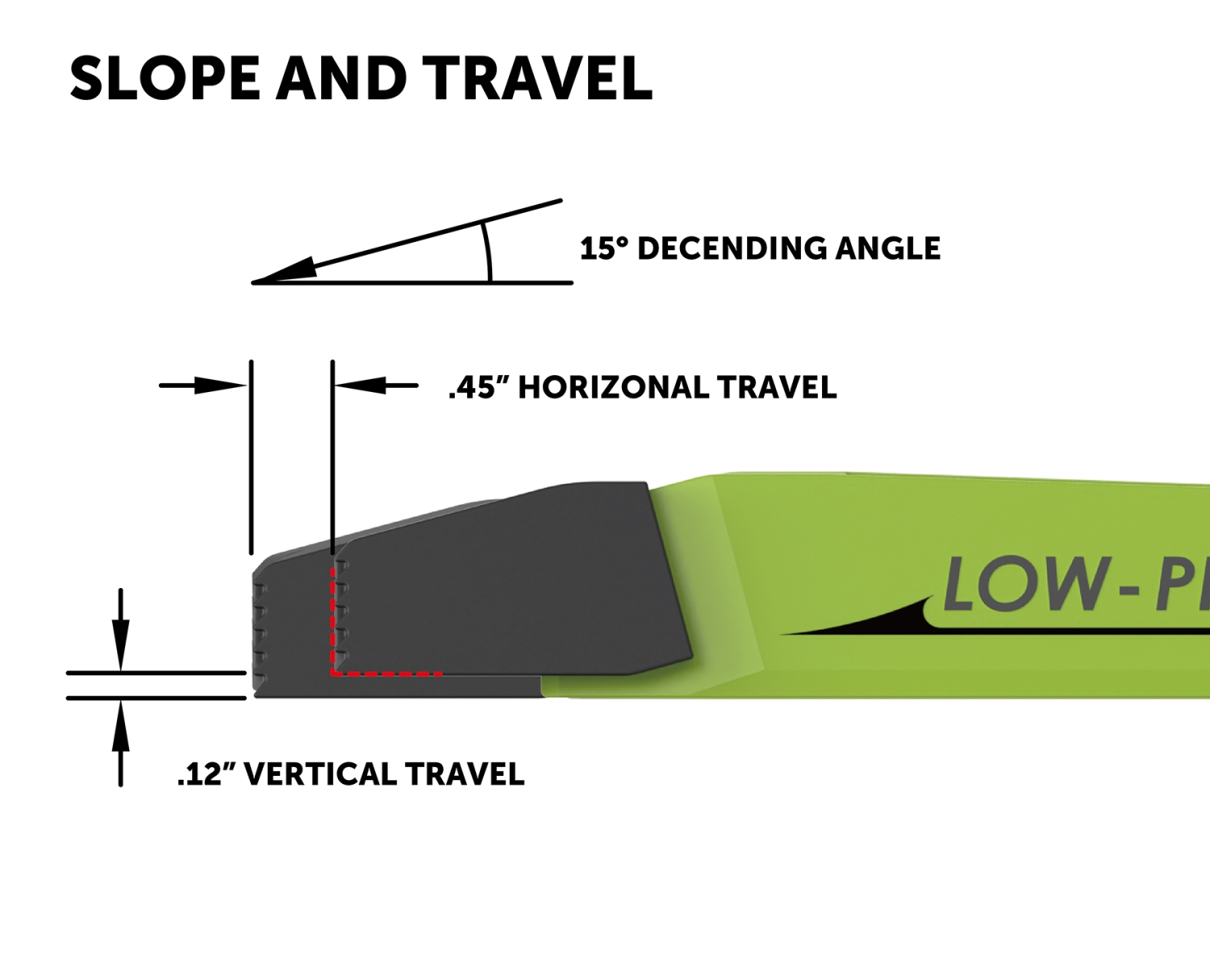

Clamp body – Glass-filled resin with infinite adjustability and 3/8” clamping travel.
(7-1/4” x 1-1/2” x 1”)

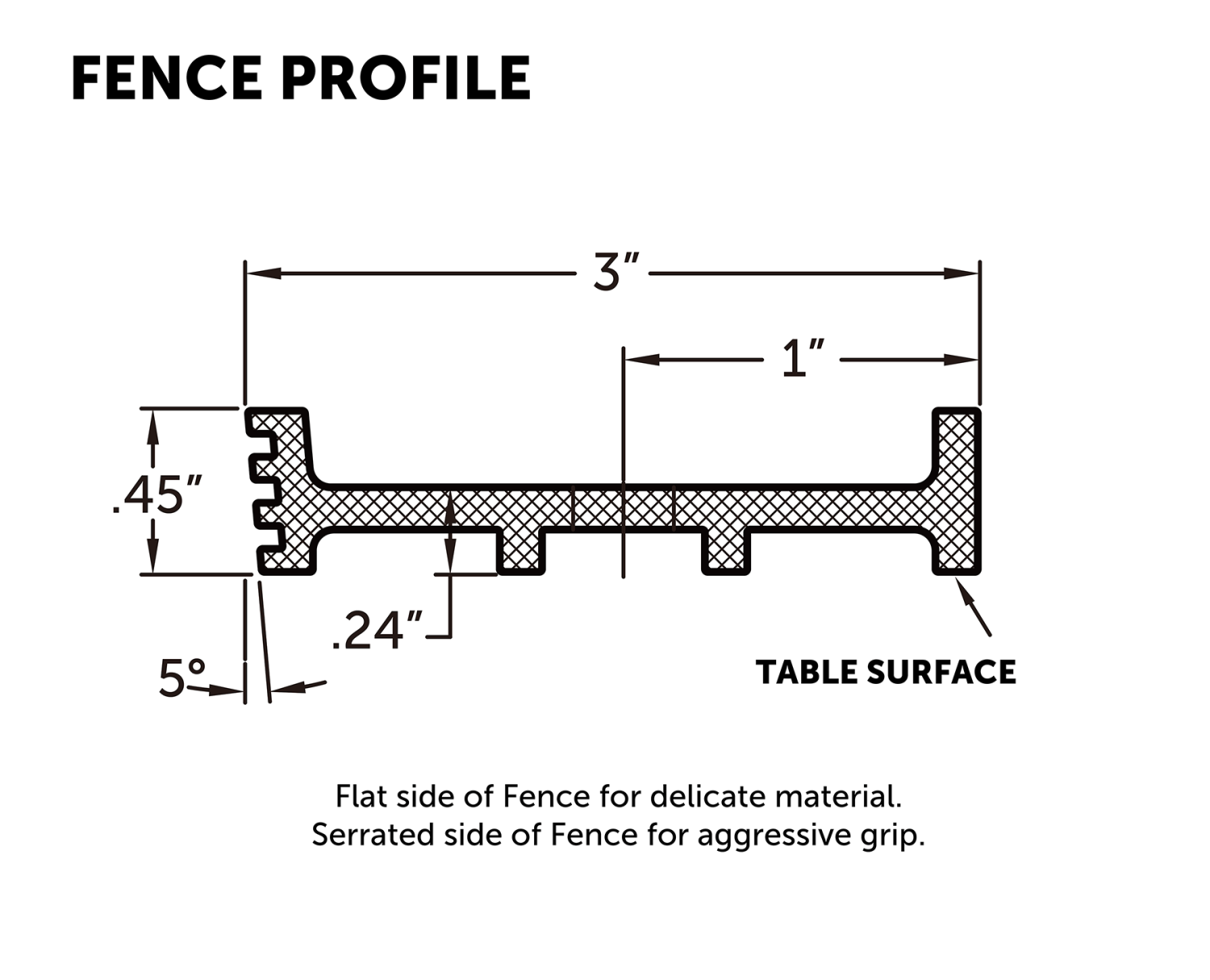

Fence – Extruded aluminum with pebble-texture and anodizing.
(14” x 2” with 1/2” & 1-1/4” heights)
